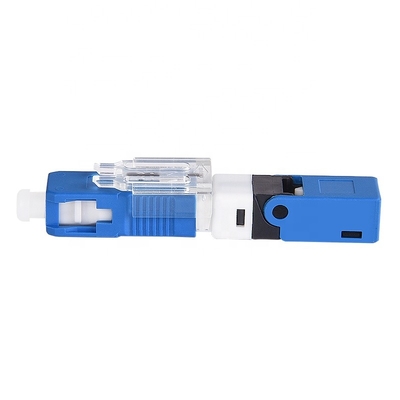

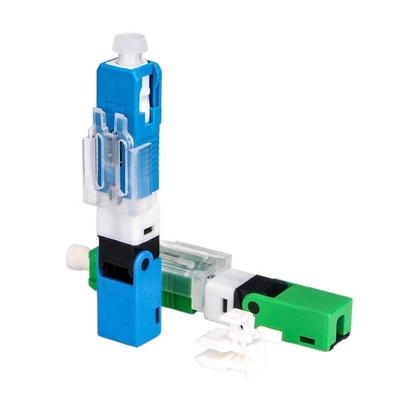

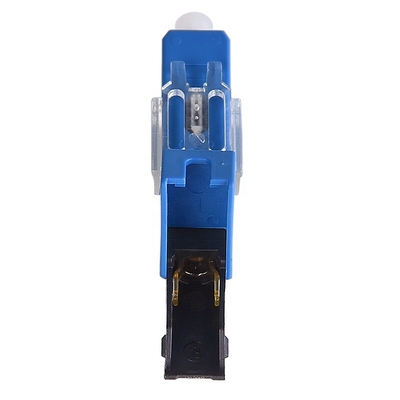

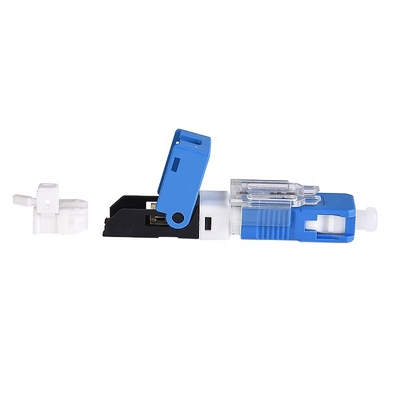

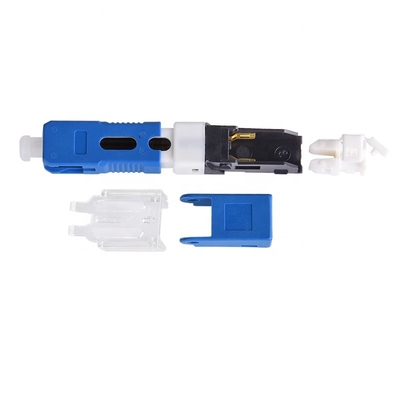

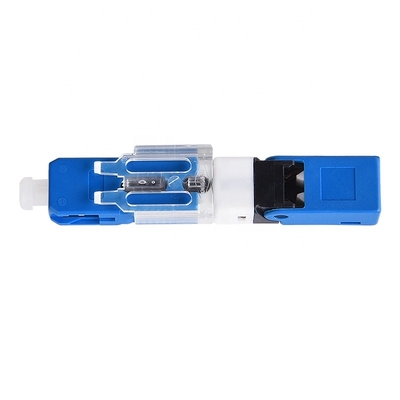

FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode

Certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
I'm Online Chat Now

FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode

FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode
FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode

Large Image :  FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: SC/APC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD
Packaging Details: 250pcs/Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/day

FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode

Description
Type: Fiber Adapter & Connectors Use: FTTH FTTB FTTX Network
Cable Scope: 3.0 X 2.0 Mm And 1.6*2.0mm Bow-type Drop Cable, 0.9mm Insertion Loss: ≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)
Connector Type: SC APC UPC Fiber Type: G652D/G657A1/G657A2
Warranty: 1 Year Return Loss: ≥50dB For UPC, ≥55dB For APC
Color: Blue, Green, Other, Blue & Black, OEM Operating Temperature: -40~75, -40°C ~ +80°C, -40 To +85 Degree, -45 To +85
High Light:

APC SM Fast Connector Quick Connector

,

FTTH Fiber Optic Quick Connector

,

FTTH SC Fiber Optic Fast Connector

FTTH Fiber Optic SC/APC SM Single Mode Fast Connector Quick Connector

Parameter:

Item Parameter
fiber Scope 0.9mm tight buffer
Size: 43.5 mm
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 60s(exclude fiber presetting)
Insertion Loss ≤ 0.2dB(1310nm & 1550nm)
Return Loss ≤ -50dB
Success Rate >98%
Reusable Times unlimited
Tighten Strength of Naked Fiber >5 N
Tensile Strength >40 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode 0FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode 1FTTH Fiber Optic SC / APC SM Fast Connector Quick Connector Single Mode 2

FAQ

1. Can I get a sample free?

Yes,you need place sample order to us, and we will reduce from next order .



2. How do I know your products are original and brand new ?

We guarantee products from our company are original and brand new.

Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.

You will get competitive price and professional technical supports.



3. Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.



4. How can we place order?

Comfirm PI — Got the deposit — Arrange production/delivery

After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.



5. How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.



6. What's your products' advantages ?

A. Good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing, assemble, packing and shipping.

D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.



Wuhan Weiruo Communication Technologies Co., Ltd. was founded in 2001, which is a leading independent optic fiber cable manufacturer located in Wuhan of China. With 20 years of development, Weiruo Communication has grown up to be an indoor & outdoor optic fiber cable and ODN accessories professional manufacturer serving to the telecom industry. The plant covers an area of 60,000 square meters, which is equipped 19 indoor and 21 outdoor OFC production lines. The annual production capacity of OFC is around 500,000 km (around 10 million fiber core km).
Vision: Weiruo Communication adheres to the philosophy of "quality for survival, innovation for development",
and has established an efficient management, R&D, marketing and manufacturing team to provide the first-class
products and perfect one-stop solution with professional technology and services.
