FTTH Single Mode UPC APC Fiber Optic Quick Connector SC APC Fiber Fast Connector

Large Image : FTTH Single Mode UPC APC Fiber Optic Quick Connector SC APC Fiber Fast Connector

Product Details:

Place of Origin:	China
Brand Name:	Weiroct
Certification:	ISO-9001/CE/ROHS
Model Number:	SC,APC

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	USD
Packaging Details:	250pcs/Carton
Delivery Time:	5-7 Days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000PCS/DAY

Contact Now

FTTH Single Mode UPC APC Fiber Optic Quick Connector SC APC Fiber Fast Connector

Description

Model Number:	SC Fiber Fast Connector	Type:	FTTx Solutions, Sc/upc Sc/apc
No. Of Fiber:	1	Application:	FTTH FTTB FTTX Network
Place Of Origin:	Hubei, China	Fiber Type:	SM G652D, G657A1, G657A2
Connector:	UPC, APC	Package:	Plastic Box
High Light:	APC Fiber Optic Quick Connector , FTTH UPC Fiber Optic Quick Connector , SC APC Fiber Fast Connector

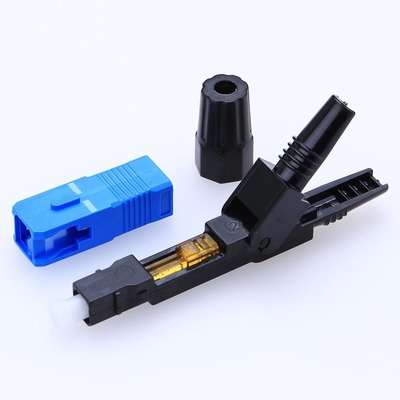

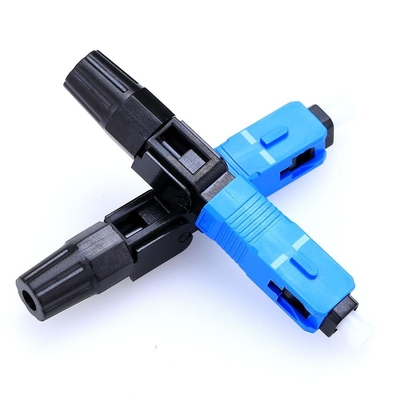

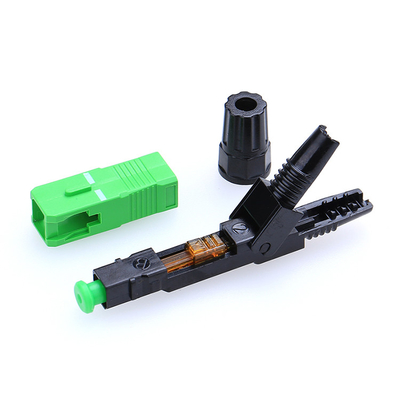

FTTH Single mode UPC APC fiber optic quick connector SC APC Fiber Fast Connector

1. Description

Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.

2. Features

♦ Factory-installed fiber stub

♦ No epoxy or polishing required

♦ Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage

♦ Eliminates cable excess length and pigtail splicestorage

♦ Cost effective

♦ Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable

Catagory	Specification		Remarks
Applicable for	2.0*3.0mm FTTH Drop Cable, 2.0mm indoor cable
Fiber mode	single mode or multi mode
operation time	S	50
insertion Loss	dB	<0.5
Insertion loss typical value	dB	<0.3	<0.2 for special reuirement
Return Loss	dB	>45	>50 for APC type
Fastening Strength of bare fiber	N	>5
Tensile Strength	N	>50
Reusable	Time	>10
Operating Temperature	℃	-40~+85
On-line tensile strength (20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height 4m,once per direction, totally 3 times	dB	ΔIL≤0.3

FTTH Single Mode UPC APC Fiber Optic Quick Connector SC APC Fiber Fast Connector 0
