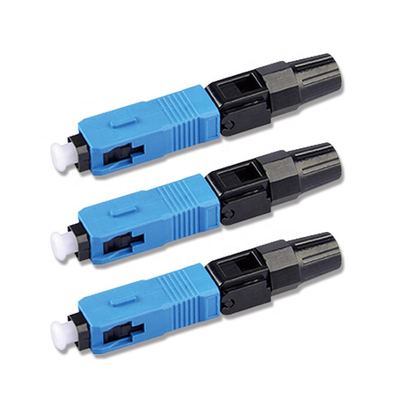

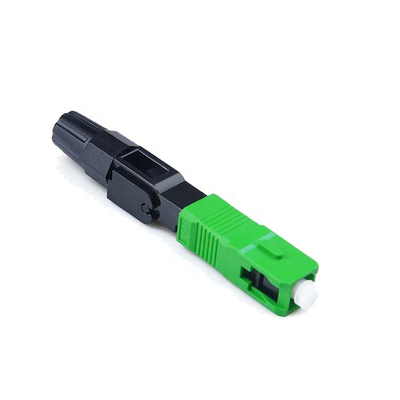

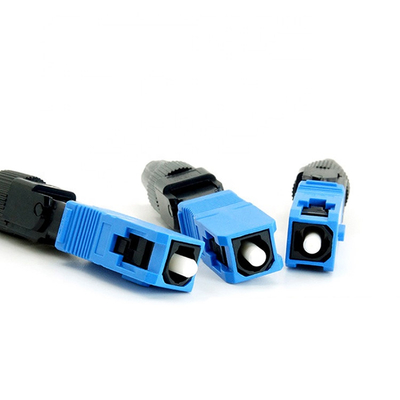

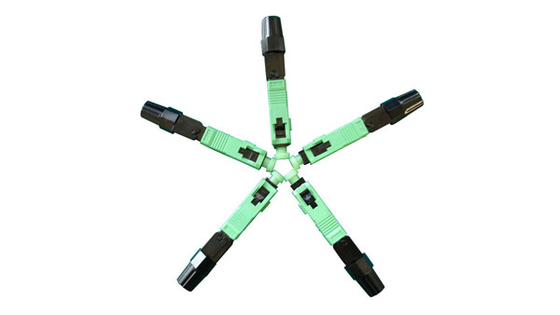

SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination

SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination
SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination

Large Image :  SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001/CE/ROHS
Model Number: SC,APC
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: USD
Packaging Details: 250pcs/Carton
Delivery Time: 5-7 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000PCS/DAY
Contact Now

SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination

Description
Model Number: SC Fiber Fast Connector Type: FTTx Solutions, Sc/upc Sc/apc
No. Of Fiber: 1 Application: FTTH FTTB FTTX Network
Place Of Origin: Hubei, China Product Name: Fast Connector
Highlight:

SC UPC Fiber Optic Fast Connector

,

FTTH Cable Fiber Optic Fast Connector

,

FTTx Solutions Fiber Optic Fast Connector

Fiber Optic Fast Connector SC APC UPC Quick Connector For FTTH Drop Cable field termination



Products Description
Factory price FTTH Fiber Optic 60mm SC UPC Fast Connector for Drop Cable
FTTH Quick Assembly Connector (No polish Connector) Fast connector SC/APC/UPC
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Features:
1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE

Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH
5. Field word

Catagory
Specification
Remarks
Applicable for
2.0*3.0mm FTTH Drop Cable, 2.0mm indoor cable

Fiber mode
single mode or multi mode

operation time
S
50

insertion Loss
dB
<0.5

Insertion loss typical value
dB
<0.3
<0.2 for special reuirement
Return Loss
dB
>45
>50 for APC type
Fastening Strength of bare fiber
N
>5

Tensile Strength
N
>50

Reusable
Time
>10

Operating Temperature
℃
-40~+85

On-line tensile strength (20N)
dB
ΔIL≤0.3

Mechanical durability(500 times)
dB
ΔIL≤0.3

Drop-off test(drop-off height 4m,once per direction, totally 3 times
dB
ΔIL≤0.3




SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination 0SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination 1



SC APC UPC Fiber Optic Fast Connector For FTTH Drop Cable Field Termination 2
