Product Details:
|
| Model Name: | FTTH Terminal Box | Type: | Wall Mounted |
|---|---|---|---|
| Material: | Plastic | Use: | FTTH FTTB FTTX Network |
| Ports: | 8 Port | Connectors Type: | SC FC LC ST |
| Operate Temperature: | -40~+85°c | Place Of Origin: | Hubei, China |
| Certification: | ISO9001:2008 | ||
| High Light: | FTTH BOX Fiber Access Terminal,24Core Fiber Access Terminal,8Core Optical Fiber Cable Distribution Box |
||

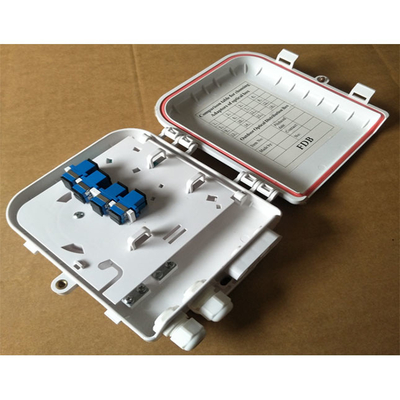

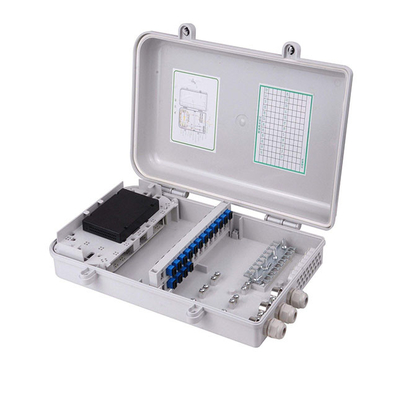

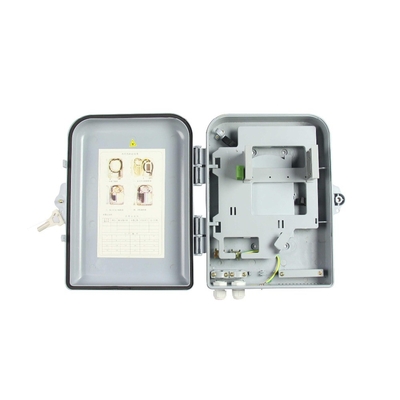

8 12 16 24 core FTTH BOX Fiber Access Terminal/Optical fiber cable distribution box
Description:
FTTH fiber optical terminal box, outdoor fiber optic termination box is used in wiring connection between optical cable and optical communication equipment, through adapter in distribution box, optical fiber jumper leads optical signal, realize optical wiring function, and can meet the optical splitter placed to achieve spectral function.
Features:
ABS material used ensures the body strong and light.
Waterproof design for outdoor use.
Made of Grade A PC/ABS alloy material, working life more than 20 years.
Drop resistance, ability to work under vertical pressure of 500N.
Easy installations: Ready for wall mount installation kits provided.
Adapter slots used, no screws and tools needed for installing adapters.
Ready for splitters: designed space for adding splitters.

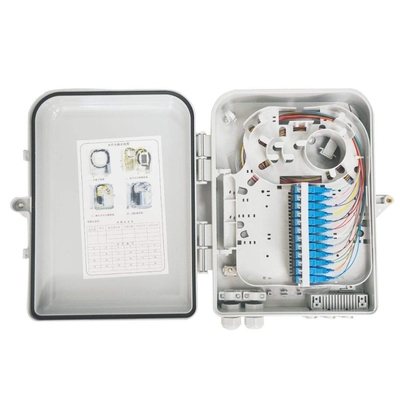

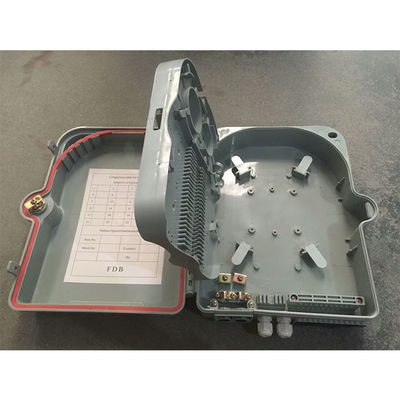

Double-layer design for easier installation and maintenances:
Lower layer for splitters and over length fiber storage.
Upper layer for splicing, cross-connecting and fiber distribution.
Application:
· FTTH, FTTB, FTTC
· Telecommunication Network
· Local Area Network
· CATV
Specification:
| Product model: | HLIN-OTB08BS | ||
| Szie(mm)Long×Width×Height | 192*133*47 | Outer Packing(mm)Long×Width×Height | 480*470*520 |
| Material: | High quality ABS/PC | Net weight(Kg) | 0.3 |
| Suitable for optical cable diameter(mm) | ≤F12 | Outer packing weight(Kg) | 19.5 |
| Fiber optic cable inlet / outlet number: | 4/8 | Outer package quantity: | 60 |
| Maximum fusion core number: | 8(core) | Outer package volume(M3 ) | 0.117 |
List of Package:
| Terminal box body | 1set | Instruction | 1 copy |
| Heat shrinkable tube L=40 | 2pcs | 3x100 tie | 2pcs |
| M4×25 plastic expansion screws | 4sets |
