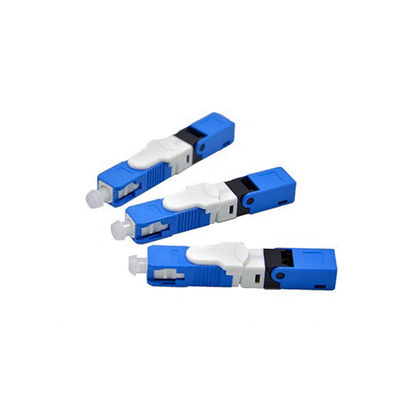

SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable

SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable
SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable

Large Image :  SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001/CE/ROHS
Model Number: SC/UPC-55H
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: USD
Packaging Details: 250pcs/Carton
Delivery Time: 5-7 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000PCS/DAY
Contact Now

SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable

Description
Model Number: SC/UPC-55H Type: FTTx Solutions
No. Of Fiber: 1 Application: FTTH FTTB FTTX Network
Connector Type: SC/PC/UPC Insertion Loss: Less Than 0.25db
Weight Per Pcs: 3g Return Loss: < -45db
Temperature: -40℃to 75℃ Repeat Test: IL≤0.2dB RL≤5dB
Highlight:

SC PC Single Mode Optical Connector

,

SC UPC Single Mode Optical Connector

,

Single Mode Fiber Sc Connector

SC/UPC SC/PC Optical Fiber Single Mode Fast Connector For FTTH Drop Cable

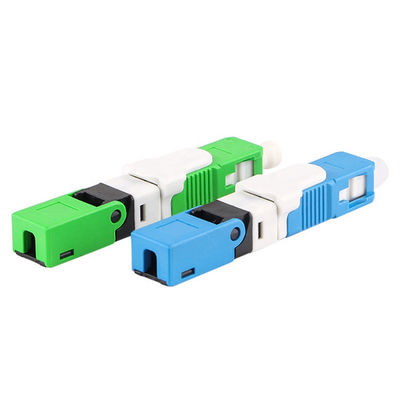

SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable 0

FTTH Quick connector SC PC/SC UPC

The fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high
quality and high eddiciency for installation, the structure of crimping position is a unique design.

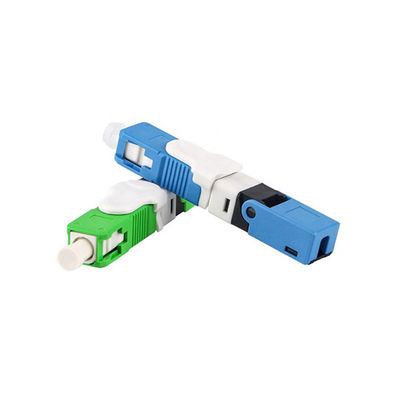

SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable 1
Optical Characteristics
1.Nominal Wavelength(nm): SM 1310,1550,MM 850
2.Fiber Core Capacity: 1
3.Fiber Cladding: 125 fiber optic fast connector
4.Fiber Cord Type (mm): ø0.25, ø0.9
5.Insertion Loss (dB): SM 0.9Max GI 0.6Max
6.Return Loss (dB): SM 40Min
7.Ferrule End Face Criterion: SM SPC finish GI PC finish

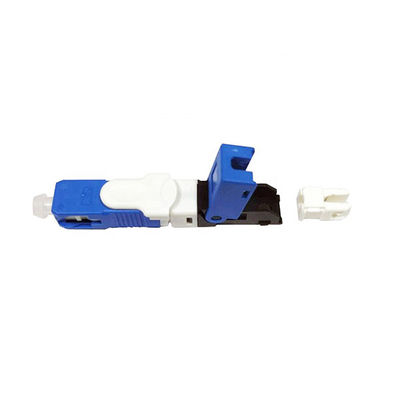

SC/UPC SC/PC Single Mode Optical Connector For FTTH Drop Cable 2

  •

    •

Applitcation:
1. No special tools needed when installed;
2. Can be made on-site without splicing connectors ;
3. Only 30 seconds needed to learn the process of installation and making;
4. Can be intalled and maked repeatedly thus avoiding loss


Tag:

APC Fiber Optic Fast Connector,

2.0mm FC Fiber Optic Fast Connector,

1.0mm ST FTTH Quick Connector
