Product Details:
|
| Type: | Fiber Adapter & Connectors | Use: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Product Name: | ESC250D Fast Connector | Cable Scope: | 3.0 X 2.0 Mm And 1.6*2.0mm Bow-type Drop Cable, 0.9mm |
| Insertion Loss: | ≤ 0.3dB(UPC) ; ≤ 0.3dB(APC) | Connector Type: | SC UPC |
| Fiber Type: | SM | Warranty: | 1 Year |
| Return Loss: | ≥50dB For UPC, ≥55dB For APC | ||
| High Light: | UPC Quick Splice Connector,FTTH Cable Splice Connector,APC Cable Splice Connector |
||

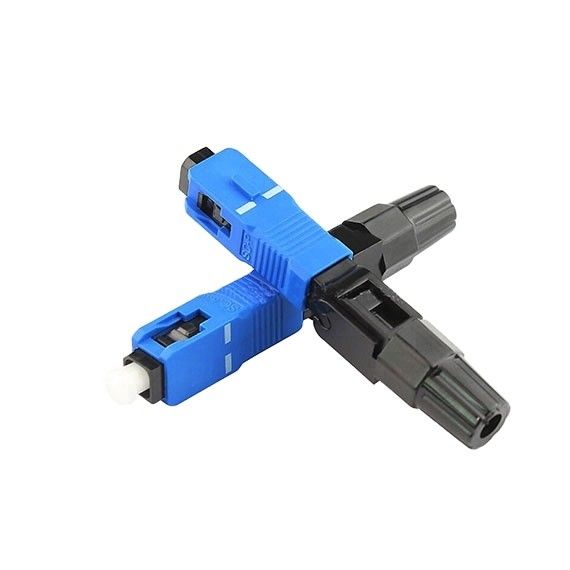

FTTH Indoor Cable Splice Optical Connector SC APC UPC
Description:
SOC can be used at the end of the drop cable in ODP (Optical Distribution Point) or OTP (Optical Termination Point), as well as at the end of the indoor optical cable in OTP or rossette.
Dimensions drop / indoor cable used is (2 to 2.5) x (3 to 3.5)mm. SOC points of use described in section 1.5 the general configuration.
Product Material On Splice Connector must be made of the raw materials as follows:
a. Ferrule must use zirconia ceramic material
b. Boot is made of thermoplastic material that is capable of protecting the results of splicing.
c. Connector housings made of thermoplastic that is hard.
Packaging & Delivery
Packaging Detail: Transparent plastic bag or upon customer's request
1 pieces / PE plastic bag
Delivery Detail: Around 7 days after receipt of formal order
Data sheet
| Item | Technical Parameters |
| Suitable Cable OD | Dimensions drop / indoor cable is (2 to 2.5) x (3 to 3.5)mm |
| Fiber mode | Single & multi mode |
| Dimension | 61mm |
| Insert loss | ≤ 0.2dB |
| Return loss | > 50dB |
