Product Details:
|
| Type: | Fiber Adapter & Connectors | Use: | FTTH |
|---|---|---|---|
| Product Name: | Fiber Optic Fast Connector | Diameter: | 0.9mm, 2.0mm, 3.0mm, Others |
| Operate Temperature: | 25 ~+85 Degrees | Durability: | > 500 (Times) |
| Repeatility: | ≤ 0.2dB | Exchange: | ≤ 0.2dB |
| Length: | 57mm | ||
| High Light: | 3.0mm Fiber Optic Fast Connector,Field Installable Fiber Optic Connector,SC APC Fiber Optic Fast Connector |
||

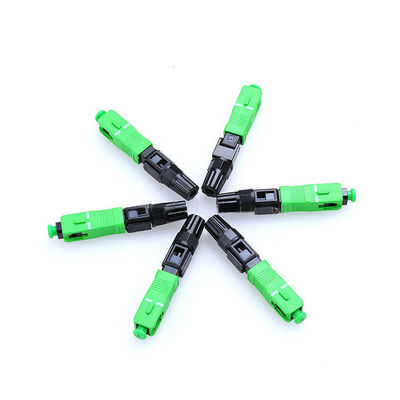

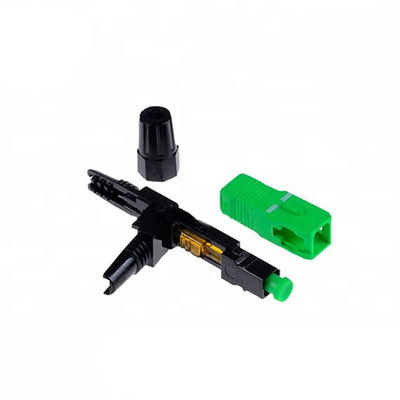

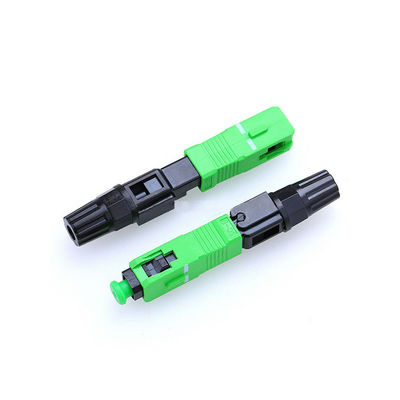

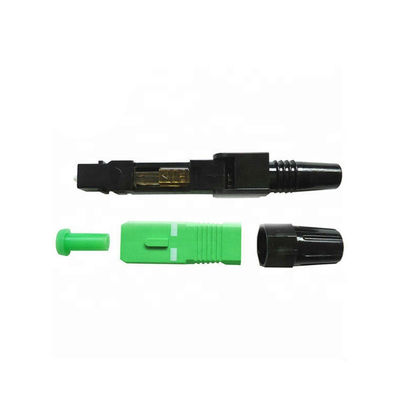

FTTH Fiber Optic SC APC Fast Field Connector:
Feature:
1. Factory-installed fiber stub
2. No epoxy and polishing required, No special tools needed when installed
3. Allows up to three re-termination result
4. Easily installed, Quick and easy fiber termination in the field
5. Only 30 seconds needed to learn the process of installation and making
6. Cost effective, Warranty: One year
7. Fast connecting and repeat, No special tools needed when installed
8. Can be made on-site without splicing connectors
9. Eliminates cable excess length and pigtail splice storage
10. Can be intalled and maked repeatedly thus avoiding loss
Applications:
|
Applicable for
|
Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
|
|
Optical fiber diameter
|
SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
|
|
Tight buffer diameter
|
250μm
|
|
Fiber mode
|
Single mode
|
|
Operation time
|
About 100s(no fiber cut)
|
|
Insert loss
|
≤ 0.3dB(1310nm & 1550nm)
|
|
Return loss
|
> 50db(PC), > 55db(UPC), > 65db(APC)
|
|
Fastening strength of naked fiber
|
>5 N
|
|
Fastening strength of naked fiber holder
|
>10 N
|
|
Tensile strength
|
>50 N
|
|
Using temperature
|
-40～+75℃
|
|
On-line tensile strength (20 N)
|
△ IL ≤ 0.5dB △ RL ≤ 5dB
|
|
Mechanical durability (500 times)
|
△ IL ≤ 0.5dB △ RL ≤ 5dB
|
|
Drop-off test (drop-off height 4m,once per direction, totally 3 times)
|
△ IL ≤ 0.5dB △ RL ≤ 5dB
|
