Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-24 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | Single Mode G657A G652D GYXTW Aerial Outdoor Steel Wire Optical Fiber Cable FTTH GYXTW Fiber Optic Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | G657A G652D Aerial Steel Wire,FTTH G657A Aerial Steel Wire,G652D GYXTW FTTH Fiber Optic Cable |
||
Description: Single Mode G657A G652D GYXTW Aerial Outdoor Steel Wire Optical Fiber Cable FTTH GYXTW Fiber Optic Cable

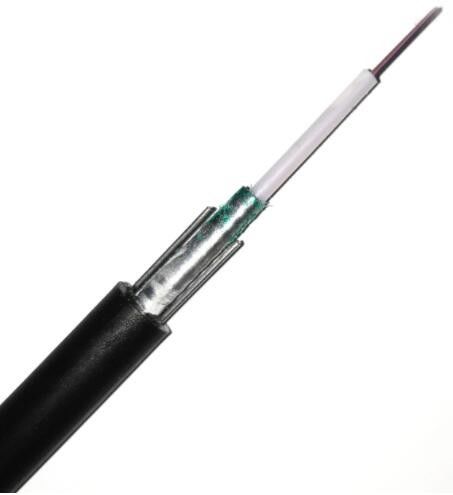

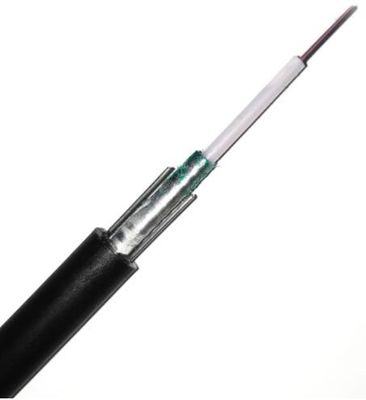

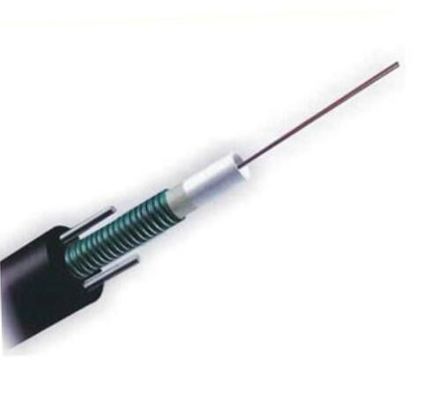

GYXTW single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials
and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials
are distributed into interstices between them to guarantee the compactness and longitudinal water-blockingperformance.
Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
Characteristics of Single Mode G657A G652D GYXTW Aerial Outdoor Steel Wire Optical Fiber Cable FTTH GYXTW Fiber Optic Cable
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8.Steel wire used as the central strength member
|
Fiber Count (F) |
Cable Diameter (mm) |
Cable Weight (kgs) |
Tensile Strength (N) | Crush Strength (N) | Min. Bending Radius |
Temperature Range (℃) |
|||
| Long term | Short Term | Long term | Short Term | Long term | Short Term | ||||
| 2 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 4 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 6 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 8 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 10 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 12 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
| Cable Type | Drum Length(KM) | Drum/Carton size (cm) | Gross weight/CTN (kgs) | KMs/20ft |
| GYXTW 2~12F | 2 | 70*70*60 | 160 | 144 |

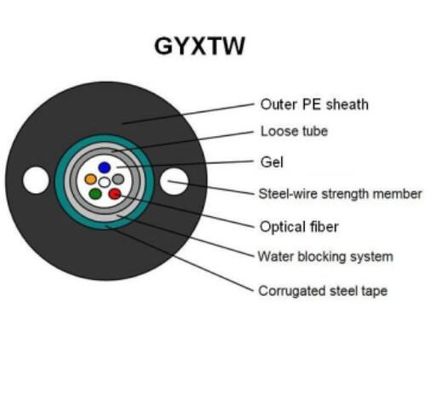

Drawings of Single Mode G657A G652D GYXTW Aerial Outdoor Steel Wire Optical Fiber Cable FTTH GYXTW Fiber Optic Cable

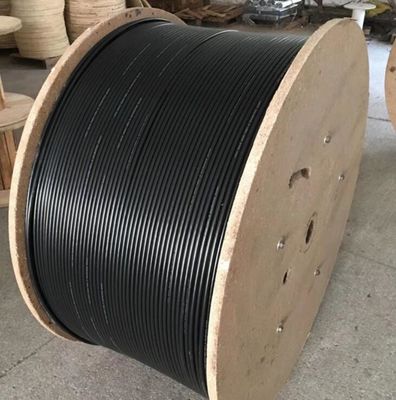

Package of Single Mode G657A G652D GYXTW Aerial Outdoor Steel Wire Optical Fiber Cable FTTH GYXTW Fiber Optic Cable
