Product Details:
|
| Application: | Telecommunication,Duct,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | ≥ 10,2,4 | Type: | SM G652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 1-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,,PVC Outer Sheath | Product Name: | Stranded Loose Tube Armored Cable,Outdoor Optic Fiber Cable |
| Length: | 2km , 5Km, Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Name: | 2-12cores GYXTW Fiber Optic Cable Outdoor Rated Fiber Optic Cable | Oem: | Available |
| Installation: | Self- Supporting Aerial,aerial,Duct,aerial/tube/duct | Structure: | Loose Tube,Unitube |
| Operating Temperature: | -40~75 | Sheath Material: | LSZH,HDPE |
| Strength Member: | Steel Wire | Fiber Color: | Blue,Orange,Brown,Aqua,Grey |
| High Light: | GYXTW Outdoor Rated Fiber Optic Cables,GYXTW Outdoor Rated Fiber Optic Cable,12 Cores GYXTW Outdoor Rated Fiber Optic Cable |
||

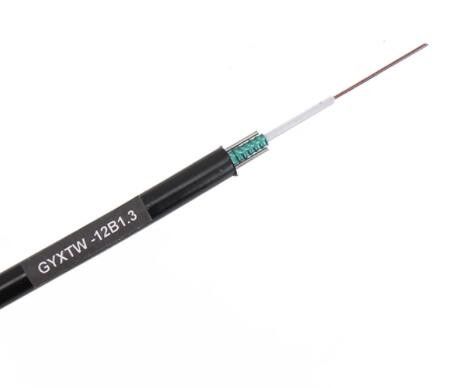

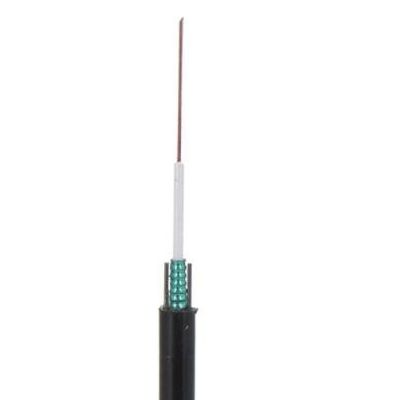

Description: 2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable
GYXTW central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
Uni-tube gel-filled construction for superior fiber protection.Metallic armor to protect cable from rodent attack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.Compact, easy to install.UV and waterproof design
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 8.6 | 95 | 1500 | 600 | 1000 | 300 |
| 14~24 | 9.0 | 110 | 1500 | 600 | 1000 | 300 |
Payment
T/T , L/C at sight
Shipping & Delivery
We will send the products 5-30 days.
Return and Warranty:
All products have been tested before delivered
All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

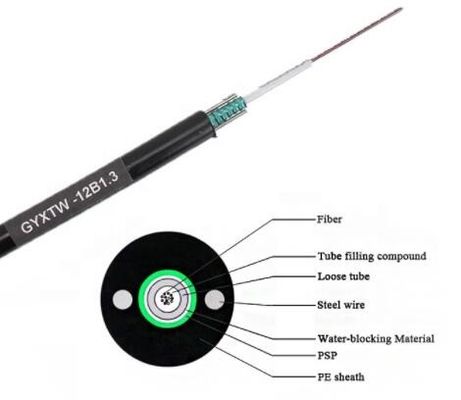

Drawings of 2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable

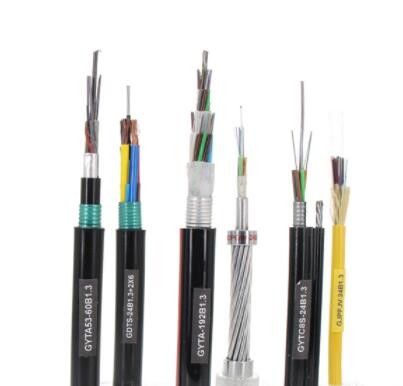

More products customized
