Product Details:
|
| Application: | Telecommunication,Duct,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48,96 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 0-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC,PVC Outer Sheath | Product Name: | Stranded Loose Tube Armored Cable,Outdoor Optic Fiber Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Name: | GYXTW Uni-tube Armored Single Mode 6 Core 8 Core Fiber Optic Cable | Oem: | Available |
| Installation: | Self- Supporting Aerial,aerial,Aerial & Duct | Structure: | Loose Tube,Unitube |
| Operating Temperature: | -40~75 | Sheath Material: | LSZH,HDPE,PVC |
| Strength Member: | Steel Wire | Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized |
| High Light: | 6 Core Armoured OFC Cable,6 Core Single Mode Armoured Fiber Optic Cable,GYXTW 8 Core Armoured Cable |
||
Description: GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable
Uni-tube gel-filled construction for superior fiber protection.
Metallic armor to protect cable from rodent attack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.
Compact, easy to install.
UV and waterproof design
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 8.6 | 95 | 1500 | 600 | 1200 | 350 |
| 14~24 | 9.0 | 110 | 1500 | 600 | 1200 | 350 |
Parameters of GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable
|
Fiber Type
|
G.652
|
G655
|
50/125μm
|
62.5/125μm
|
|
|
Attenuation(+20℃)
|
@850nm
|
|
|
≤3.0 db/km
|
≤3.3 db/km
|
|
@1300nm
|
|
|
≤1.0 db/km
|
≤1.0 db/km
|
|
|
@1310nm
|
≤3.6 db/km
|
≤0.40 db/km
|
|
|
|
|
@1550nm
|
≤0.22 db/km
|
≤0.23 db/km
|
|
|
|
|
Bandwidth
|
@850nm
|
|
|
≥500MHz.km
|
≥200MHz.km
|
|
@1300nm
|
|
|
≥500MHz.km
|
≥500MHz.km
|
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
Cable Cut-off Wavelength
|
≤1260 nm
|
≤1450 nm
|
|
||
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty:
All products have been tested before ship out
All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

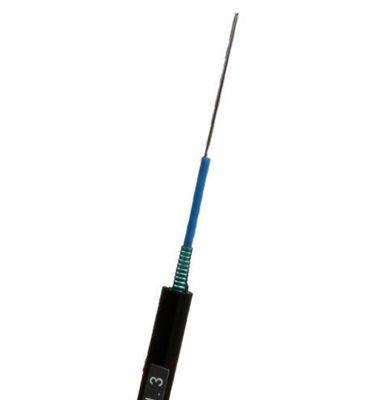

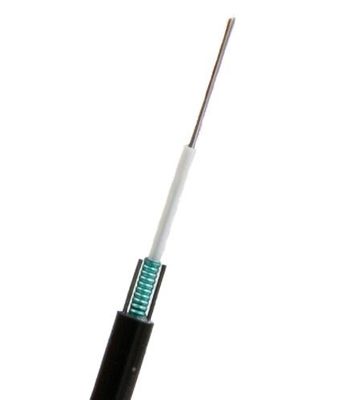

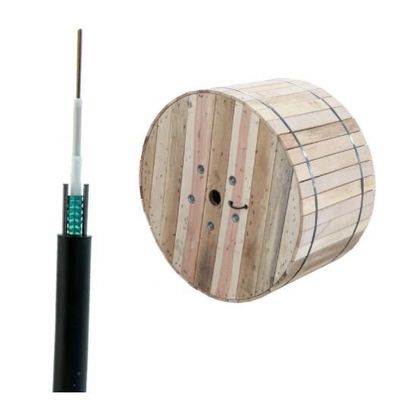

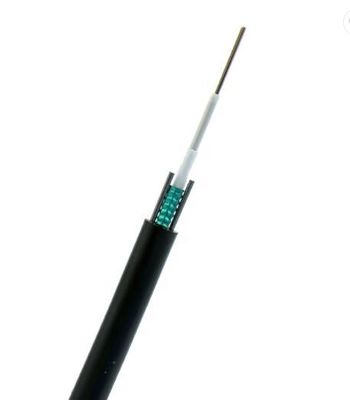

Drawings of GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable
