Product Details:
|
| Application: | Telecommunication,Duct,Telecom | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8, | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 1-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC,PVC Outer Sheath | Product Name: | Stranded Loose Tube Armored Cable,Outdoor Optic Fiber Cable |
| Length: | 2km ,5Km Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Name: | Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable | Oem: | Available |
| Installation: | Self- Supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct | Structure: | Loose Tube,Unitube |
| Operating Temperature: | -40~75 | Sheath Material: | LSZH,HDPE |
| Strength Member: | Steel Wire | Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized |
| High Light: | 5Km Outdoor Fiber Optic Cable,GYXTW 48 Core Fiber Optic Cable,2 Core Outdoor Fiber Optic Cable |
||
Description: Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable

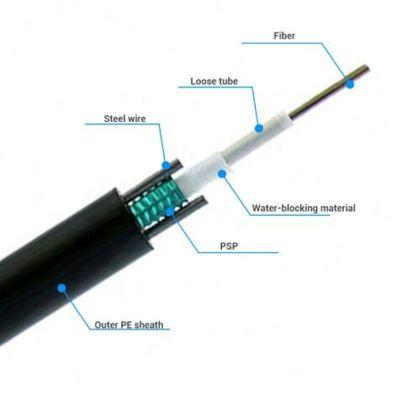

GYXTW central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network and access network, and is especially suitable for the situation where high-density fibers is expected. The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 8.6 | 95 | 1500 | 600 | 1000 | 300 |
| 14~24 | 9.0 | 110 | 1500 | 600 | 1000 | 300 |
Parameters of Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
|
Fiber Type
|
G.652
|
G655
|
50/125μm
|
62.5/125μm
|
|
|
Attenuation(+20℃)
|
@850nm
|
|
|
≤3.0 db/km
|
≤3.3 db/km
|
|
@1300nm
|
|
|
≤1.0 db/km
|
≤1.0 db/km
|
|
|
@1310nm
|
≤3.6 db/km
|
≤0.40 db/km
|
|
|
|
|
@1550nm
|
≤0.22 db/km
|
≤0.23 db/km
|
|
|
|
|
Bandwidth
|
@850nm
|
|
|
≥500MHz.km
|
≥200MHz.km
|
|
@1300nm
|
|
|
≥500MHz.km
|
≥500MHz.km
|
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
Cable Cut-off Wavelength
|
≤1260 nm
|
≤1450 nm
|
|
||
Payment
T/T , L/C are all offered.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty:
All products have been tested before delivered
All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

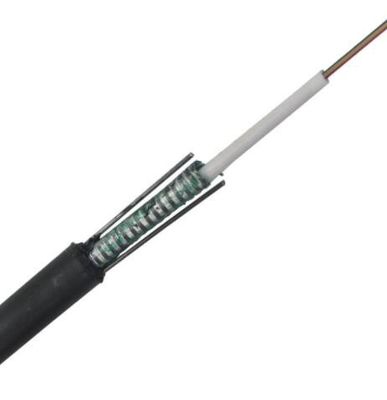

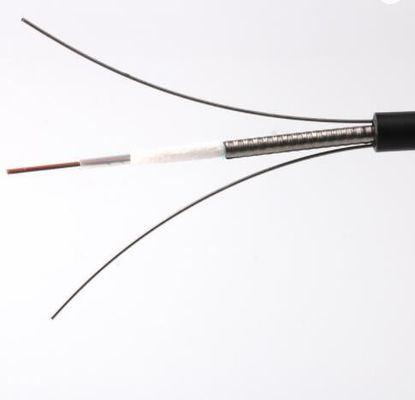

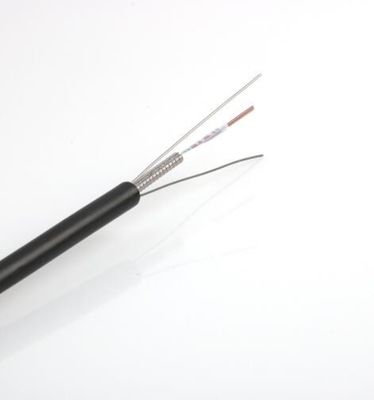

Drawings Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
