Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-24 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | Outdoor SM 2 4 6 8 12 16 24 Core Armoured GYXTW Fiber Optic Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | 24 Core SM Outdoor Fiber Optic Cable,6 Core GYXTW Outdoor Fiber Optic Cable,SM 4 Core Armoured Cable |
||
Description: Outdoor SM 2 4 6 8 12 16 24 core armoured GYXTW fiber optic cable
GYXTW single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials
and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials
are distributed into interstices between them to guarantee the compactness and longitudinal water-blockingperformance.
Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
Characteristics of Outdoor SM 2 4 6 8 12 16 24 core armoured GYXTW fiber optic cable
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8.Steel wire used as the central strength member
|
No. of cable
|
2~8
|
10~12
|
14~24
|
|
|
Fiber Model
|
G.652D
|
|||
|
Strength Member |
Material
|
Steel Wire
|
||
|
Diameter(±0.05)mm
|
0.8
|
0.8
|
0.8
|
|
|
Loose Tube |
Material
|
PBT
|
||
|
Diameter(±0.06)mm
|
2.1
|
2.4
|
2.8
|
|
|
Thickness(±0.03)mm
|
0.32
|
0.35
|
0.4
|
|
|
The Max.Core NO./Tube
|
8
|
12
|
24
|
|
|
Water Blocking layer(Material)
|
Water Blocking Tape
|
|||
|
Armoring |
Material
|
Steel Strip
|
||
|
Thickness(±0.03)mm
|
0.25
|
|||
|
Outer Sheath |
Material
|
MDPE
|
||
|
Thickness(±0.2)mm
|
2
|
|||
|
Cable Diameter(±0.2)mm
|
7.9
|
8.1
|
8.5
|
|
|
Cable Weight(±5)kg/km
|
60
|
63
|
68
|
|
|
Min. bending radius |
Without Tension
|
10.0×Cable -φ
|
||
|
Under Maximum Tension
|
20.0×Cable -φ
|
|||
|
Temperature range(℃)
|
Installation
|
-20~+60
|
||
|
Transport&Storage
|
-40~+70
|
|||
|
Operation
|
-40~+70
|
|||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Cable marking of Outdoor SM 2 4 6 8 12 16 24 core armoured GYXTW fiber optic cable
(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;
(4) Factory name;
(5) Date of manufacturing (year);
(6) Other requirements ;
The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

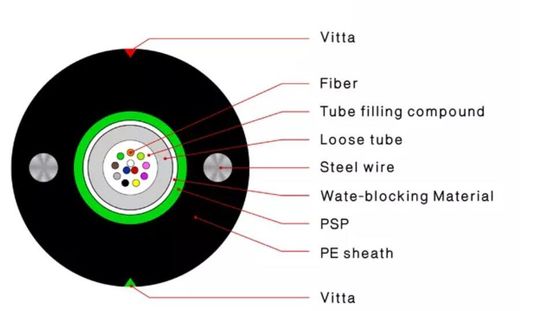

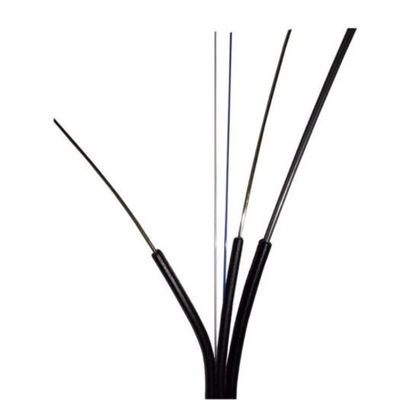

Drawings of Outdoor SM 2 4 6 8 12 16 24 core armoured GYXTW fiber optic cable
Package of Outdoor SM 2 4 6 8 12 16 24 core armoured GYXTW fiber optic cable
More products customized
