Product Details:
|
| Name: | Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable | Fiber Type: | G652D |
|---|---|---|---|
| Fiber Count: | 24F | Type: | Fiber Optic Cable |
| Cable Diameter: | 9.8*18.5mm | Strength Member: | Steel Wire |
| Installation: | Self-supporting/Aerial | Application: | Long Distance Communication System |
| Messenger Member: | Steel Wire | Certification: | ISO9001/CE |
| Fiber Options: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 | Color: | Customized |
| High Light: | 12 Core Aerial Figure 8 Fiber Optic Cable,GYXTC8Y Aerial Figure 8 Fiber Optic Cable,GYXTC8Y 12 Core Fiber Optic Cable |
||

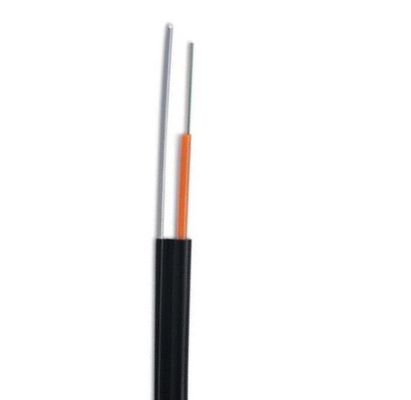

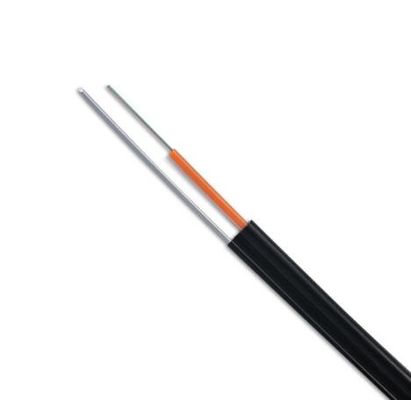

Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable
Description of Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable
GYFTC8Y fiber optic aerial cable is non armor 7x1.0mm Steel strand wire self-supporting cable.The loose tube are made of high modulus plastic (PBT), which are filled with water resistant gel. Loose tube are stranded around the non-metallic strengthen member (FRP) . Outer sheath is made of UV resistance PE jacket. Figure 8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations. The Steel strand wire self-supporting member gives high tensile resistant.
Features of Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Light weight design bring low cost and also easy installation
7.Anti-electromagnetism ability.
8.Small cable diameter, light cable weight, self-supporting,
9.Easily installation.
Parameter Data of Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable
| Items | Description | |
| Before cable | After cable | |
| atten.1310 | ≤0.35dB/km | ≤0.36dB/km |
| atten.1383 | ≤0.35dB/km | ≤0.36dB/km |
| atten.1550 | ≤0.21dB/km | ≤0.22dB/km |
| atten.1625 | ≤0.23dB/km | ≤0.24dB/km |
| Cable cut-off wavelength | ≤1260 nm | |
| Zero-dispersion wavelength | 1300 ~ 1324 nm | |
| Zero-dispersion slope | ≤0.091 ps/(nm2.km) | |
| Mode field diameter | @ 1310 nm 8.8~9.6μm | |
| Core/Clad concentricity error | ≤0.6μm | |
| Cladding diameter | 125±1.0μm | |
| Cladding non-circularity | ≤1.0% | |
| Primary Coating diameter | 245±7μm | |
|
Macro-bend induced attenuation 16mm radius, 1 turn 25mm radius, 100 turns 30mm radius , 100 turns |
Δ≤0.05dB @1550nm Δ≤0.05dB @1550nm Δ≤0.05 dB @1625nm |
|
|
Fiber Num.
|
Outer diameter (mm)
|
Weight (kg/km)
|
Tension (N)
|
Crash loading(N/100mm)
|
||
|
Short term
|
Long term
|
Short term
|
Long term
|
|||
|
2-30
|
9.5*18.2
|
150
|
≥6000
|
≥2000
|
≥1000
|
≥300
|
|
32-48
|
10.2*18.9
|
162
|
||||
|
50-60
|
10.2*19.2
|
173
|
||||
|
62-72
|
10.9*19.9
|
197
|
||||
|
74-84
|
12.1*21.1
|
217
|
||||
|
86-96
|
12.1*21.1
|
217
|
||||
Technical Parameters:
Cable count |
Out sheath diameter |
Weight |
Minimum allowable Tensile Strength(N) |
Minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (kg) | Short term |
Long term |
Short term |
Long term |
Short term |
Long term |
(℃) |
|
| 6 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 12 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 24 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 36 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 42 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 48 | 7.0x15.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 72 | 7.0x15.5 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 144 | 7.0x15.5 | 285 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with more than 560 staff.
2.How many years have you been in the field of fiber optics ?
Since 2001.
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, CIQ.
6.What is your delivery time?
Usually within 2-30 working days
7.What is your payment way?
T/T, L/C, Western Union and Paypal.
8.Can you supply customized products and logo?
Yes. We supply OEM&ODM service. You can send us your drawing.

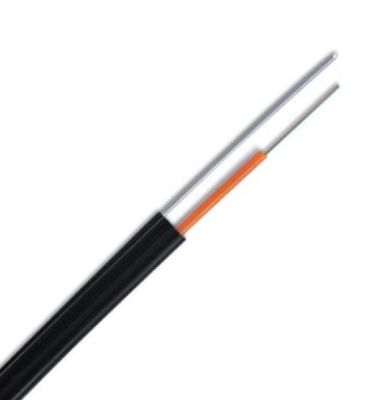

Drawings of Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable
