Product Details:
|
| Name: | Aerial GYTC8S Figure 8 Communication Cables 12 24 48 96 Core Single Mode Fiber Optic Cable | Fiber Type: | G652D |
|---|---|---|---|
| Fiber Count: | 24F | Type: | Fiber Optic Cable |
| Cable Diameter: | 9.8*18.5mm | Strength Member: | Steel Wire |
| Installation: | Self-supporting/Aerial | Application: | Aerial Installation |
| Messenger Member: | Steel Wire | Certification: | ISO9001/CE |
| Fiber Options: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 | Color: | Customized |
| High Light: | GYTC8S Aerial Figure 8 Fiber Optic Cable,GYTC8S 96 Core Fiber Optic Cable,96 Core Aerial Figure 8 Fiber Optic Cable |
||
Aerial GYTC8S Figure 8 communication cables 12 24 48 96 core single mode fiber optic cable
Description of Aerial GYTC8S Figure 8 communication cables 12 24 48 96 core single mode fiber optic cable
The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.
Features of Aerial GYTC8S Figure 8 communication cables 12 24 48 96 core single mode fiber optic cable
1.High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
2.installation cast
3.Good mechanical and temperature performance
4.High strength loose tube that is hydrolysis resistant
5.Special tube filling compound ensure a critical protection of fiber
6.The following measures are taken to ensure the cable watertight:
7.Steel wire used as the central strength member
8.Loose tube filling compound
9.100% cable core filling
10.APL moisture barrier
11.Storage / Operating Temperature: -40℃~+70℃
Parameter Data of Aerial GYTC8S Figure 8 communication cables 12 24 48 96 core single mode fiber optic cable
| Model | Fiber count | Tube count | Filling rope count |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GYTC8A-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of suspension wire | 300/1000 | 10D/20D |
| GYTC8A-8~12Xn | 8~12 | 2 | 3 | 158 | |||
| GYTC8A-14~18Xn | 14~18 | 3 | 2 | 158 | |||
| GYTC8A-20~24Xn | 20~24 | 4 | 1 | 158 | |||
| GYTC8A-26~30Xn | 26~30 | 5 | 0 | 158 |
Technical Parameters:
Cable count |
Out sheath diameter |
Weight |
Minimum allowable Tensile Strength(N) |
Minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (kg) | Short term |
Long term |
Short term |
Long term |
Short term |
Long term |
(℃) |
|
| 6 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 12 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 24 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 36 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 42 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 48 | 7.0x15.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 72 | 7.0x15.5 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 144 | 7.0x15.5 | 285 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|
FAQ
1.About the price?
We usually quote within 12 hours after we confirm the technical data of your products.
2.What's the payment method?
We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.
3.What are your terms of payment?
30% in advance,and 70% before shipment
4.How to ship the items to me?
Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.
5.How long is your delivery time?
The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
6.Can you send me a free sample?
Yes,We are willing to send free sample,if you would like to pay the shipping costs.
7.Do you accept OEM or ODM?
Yes,we're factory. any your customized requirements we can do our best to help you realize.

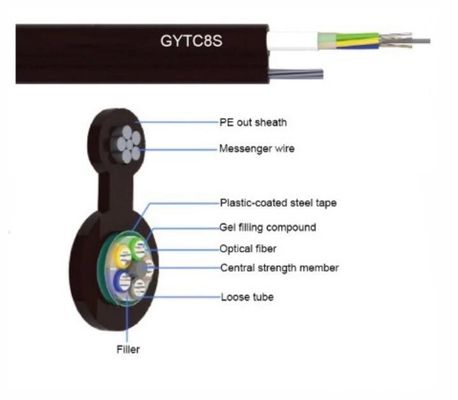

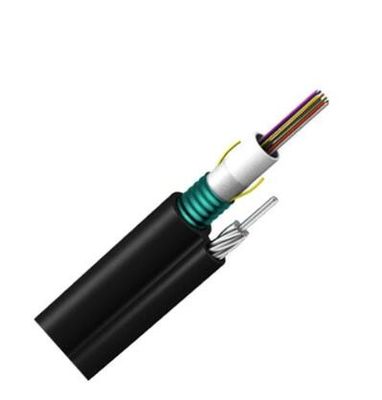

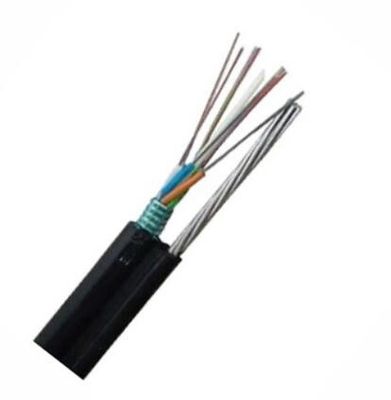

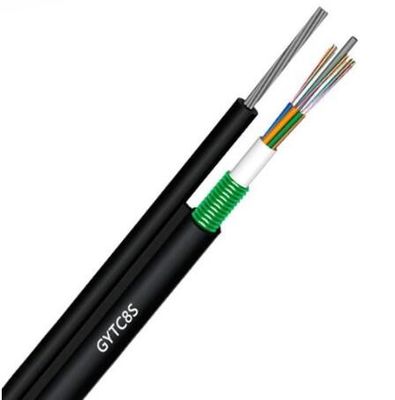

Drawings of Aerial GYTC8S Figure 8 communication cables 12 24 48 96 core single mode fiber optic cable
