Self Supporting GYTC8A GYTC8S 12 24 96 Core Aerial Fiber Optic Cable

Certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
I'm Online Chat Now

Self Supporting GYTC8A GYTC8S 12 24 96 Core Aerial Fiber Optic Cable

Self Supporting GYTC8A GYTC8S 12 24 96 Core Aerial Fiber Optic Cable
Self Supporting GYTC8A GYTC8S 12 24 96 Core Aerial Fiber Optic Cable Self Supporting GYTC8A GYTC8S 12 24 96 Core Aerial Fiber Optic Cable Self Supporting GYTC8A GYTC8S 12 24 96 Core Aerial Fiber Optic Cable

Large Image :  Self Supporting GYTC8A GYTC8S 12 24 96 Core Aerial Fiber Optic Cable

Product Details:
Place of Origin: China
Brand Name: WRC-Self-supporting figure 8 GYTC8A 12/24/96core aerial fiber optic cable GYTC8S
Certification: ISO9001
Model Number: Self-supporting figure 8 GYTC8A 12/24/96core aerial fiber optic cable GYTC8S
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Meters
Price: USD240-USD1550/Km
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 1000 Km per Day

Self Supporting GYTC8A GYTC8S 12 24 96 Core Aerial Fiber Optic Cable

Description
Name: Self-supporting Figure 8 GYTC8A 12/24/96core Aerial Fiber Optic Cable GYTC8S Fiber Type: G652D
Fiber Count: 24F Type: Fiber Optic Cable
Cable Diameter: 9.8*18.5mm Strength Member: Steel Wire
Installation: Self-supporting/Aerial Application: Long Distance Communication System
Messenger Member: Steel Wire Certification: ISO9001/CE
Fiber Options: ITU G652D ,G657A,OM1,OM2,OM3,OM4 Color: Customized
High Light:

GYTC8S Aerial Fiber Optic Cable

,

96 Core Aerial Fiber Optic Cable

,

GYTC8S Self Supporting Aerial Cable

Self-supporting figure 8 GYTC8A 12/24/96core aerial fiber optic cable GYTC8S



Description of Self-supporting figure 8 GYTC8A 12/24/96core aerial fiber optic cable GYTC8S

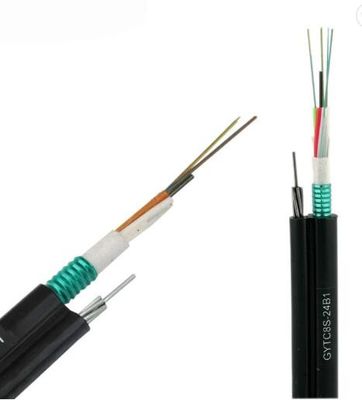

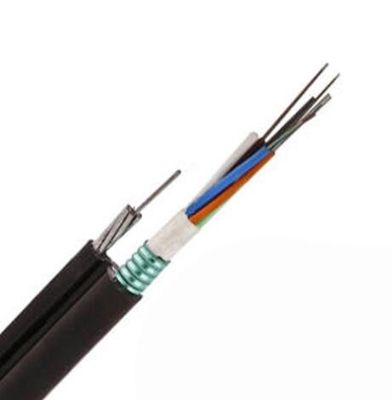

GYTC8S is a typical outdoor use fiber optic cable for aerial applications; GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multimode GYTC8S fiber cables from 2-fiber type to 96-fiber type.

Features of of Self-supporting figure 8 GYTC8A 12/24/96core aerial fiber optic cable GYTC8S

1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.

2,Good mechanical and temperature performance.

3,Self-supporting Figure 8 design.

4,Special tube filling compound ensure a critical protection of fiber
5,Loose tube filling compound
6,Aramid Yarn Provide additional mechanical protection
7,Loose tube filling compound
8,100% cable core filling

9,Loose tube gel-filled construction for superior fiber protection.
10,UV and moisture-resistant design

Parameter Data of Self-supporting figure 8 GYTC8A 12/24/96core aerial fiber optic cable GYTC8S

Fiber Num.
Outer diameter (mm)
Weight (kg/km)
Tension (N)
Crash loading(N/100mm)
Short term
Long term
Short term
Long term
2-30
9.5*18.2
150
≥6000
≥2000
≥1000
≥300
32-48
10.2*18.9
162
50-60
10.2*19.2
173
62-72
10.9*19.9
197
74-84
12.1*21.1
217
86-96
12.1*21.1
217

Mechanical and Environmental Characteristics:

Items Unite Specifications
Tension(Long Term) N 300
Tension(Short Term) N 800
Crush(Long Term) N/10cm 200
Crush(Short Term) N/10cm 600
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Installation Temperature ºC -20~+60
Operating Temperature ºC -40~+70
Storage Temperature ºC -40~+70



G.652D Single Mode Optical Fiber (B1.3)
Item
Standard
Unit


Attenuation
1310nm
≤0.35
dB/km
1383nm
≤0.33
dB/km
1550nm
≤0.21
dB/km
1625nm
≤0.24
dB/km

Dispersion
1288nm~1339nm
|D|≤3.4
ps/(nm·km)
1271nm~1360nm
|D|≤5.3
ps/(nm·km)
1550nm
≤17.8
ps/(nm·km)
Zero-dispersion wavelength
1300~1322
(nm)
Zero-dispersion slope
≤0.091
ps/(nm2•km)

PMD
PMD single fiber
≤0.15
ps/√km
PMD Q links
≤0.08
ps/√km
MDF
1310nm
9.2±0.4
um
Cladding diameter
125±1.0
μm
Cladding non-circularity
≤0.8
%
Core-cladding concentricity error
≤0.6
μm
Coating diameter
245±10
μm
Cladding/coating concentricity error
≤10.0
μm
Cut-off wavelength
1.18~1.33
μm

Macrobend attenuation
(ф 50mm, 100 cycles)
1550nm
≤0.05
dB
1625nm
≤0.05
dB
Bending radius
≥5
m
Dynamic fatigue parameters
≥20
nd



Additional Attenuation
@1310nm &
@1550nm
Temperature cycling test:
(-60℃~85℃, 3 cycles)
≤0.03
dB/km
Water soak test:
(23℃ for 30 days)
≤0.03
dB/km
Damp heat test:
(85℃, 85%RH for 30 days)
≤0.03
dB/km

Thermal aging test

(85℃ for 30 days)
≤0.03
dB/km
Warm water soak test: (60℃ for 15 days)
≤0.03
dB/km



Drawings of Self-supporting figure 8 GYTC8A 12/24/96core aerial fiber optic cable GYTC8S
