Home ProductsFiber Optic PLC Splitter

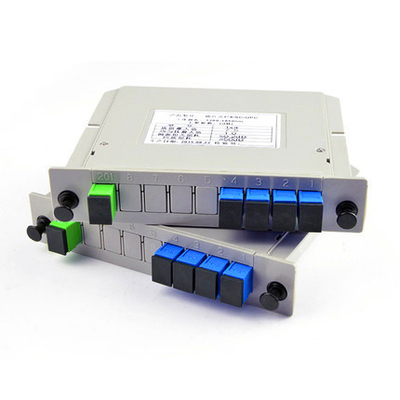

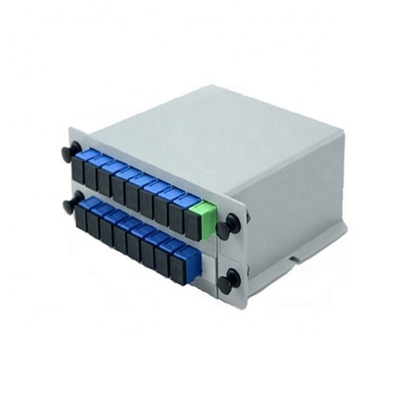

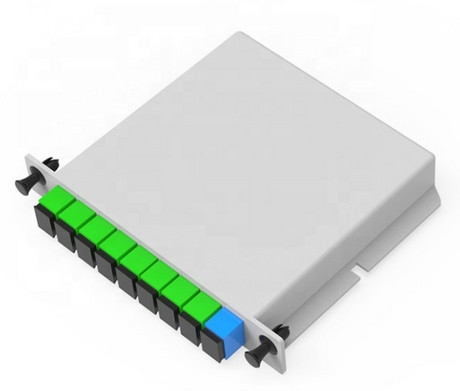

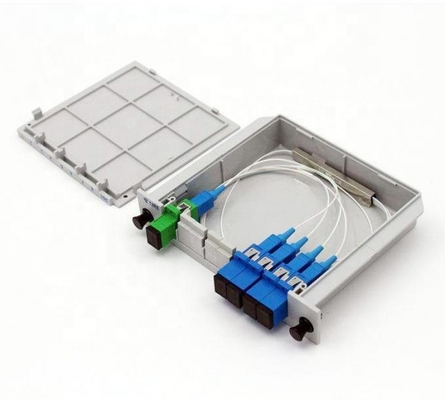

FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette

Certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
I'm Online Chat Now

FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette

FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette
FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette
FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette

Large Image :  FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette

Product Details:
Place of Origin: China
Brand Name: WRC-1*8 Optical Splitter SCUPC APC Fiber PLC Splitter Box With Insert Type
Certification: ISO9001
Model Number: 1*8 Optical Splitter SCUPC APC Fiber PLC Splitter Box With Insert Type
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD1.5-USD5.0/Pc
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Supply Ability: 5000 pcs per Day

FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette

Description
Connector Type: LC/SC/ST/FC/MU/MTRJ, Etc Wavelength: 1260 To 1650nm
Type: Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 Connector: SC LC
Cable Type:: G657A1 Or As Customers' Order Operating Temperation: -40℃ To 85℃
No. Of Fiber: 2 4 8 16 Usage: FTTH
Name: 1*8 Optical Splitter SCUPC APC Fiber PLC Splitter Box With Insert Type Place Of Origin: Hubei, China
Wave Length: 1260-1650nm
High Light:

FTTH 1x12 PLC Splitter

,

FTTH Cassette 1x12 PLC Splitter

,

APC Connector Fiber Optic PLC Splitter

FTTH Equipment 1x12 PLC Splitter Optical Fiber With SC/APC Connector FTTH Cassette



Description :

PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Oxin provides whole series of 1xN splitter and 2xN splitter products that are tailored for specific applications.



Application:
* Can be used for FTTX Systems
* Passive Optical Networks (PON)
* CATV TV Networks (CATV)
* Optical Signal Distribution

FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette 0FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette 1FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette 2FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette 3
Item
1x12
Operating Wavelength(nm)
1260-1650
Fiber Type
G657A1 or as customers' order
Connector
SC/FC/LC
Ferrule section
UPC/APC
Insertion loss(dB)
≤12.8
Loss uniformity(dB)
≤1.2
Return Loss(dB)
≥55
Polarization Dependent Loss(dB)
≤0.25
Directivity(dB)
≥55
Temperature correlation loss
≤0.5
-40~85℃(dB)
Size(mm)(LxWxH)
60×7×4
Working Temperature(℃)
-40~85
Storage Temperature(℃)
-40~85


FAQ

1.    Are you the real manufacturer?

Yes.We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.

2.    Do you accept a small order?

Yes, it is available. We support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

3.    What is your delivery time?

It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.

4.    What payment methods do you support?

The methods are followed: T/T, L/C, Western Union and PayPal.

5.    Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free.

6.    Do you accept OEM,ODM?

 Yes, we accept them .

7.     Can you print our LOGO?

Sure, Your LOGO can be printed on the boxes , or products.



Packaging and shipping

FTTH 1x12 PLC Splitter Optical Fiber With SC / APC Connector FTTH Cassette 4
