Product Details:
|
| Model Number: | GYTS ,GYFTY GJYXCH ,GYXTW ,FTTH Drop Cable | Conductors: | ≥10 |
|---|---|---|---|
| Fiber Model: | OM3 | Number Of Cores: | 1~256 Cores |
| Fiber Type: | Tight Buffer Fiber | Material: | PVC/LSZH,Aramid Yarn |
| Attenuation: | 800nm~1300nm | Diameter: | 600μm Or 900μm |
| Bandwidth: | 850nm~1300nm | Operating Temperature: | -20~70°C |
| Application: | Indoor Telecommunication | Place Of Origin: | Hubei, China |
| High Light: | 96 Core Fiber Optic Cable GYFTY,G652D FRP Fiber Optic Cable |
||

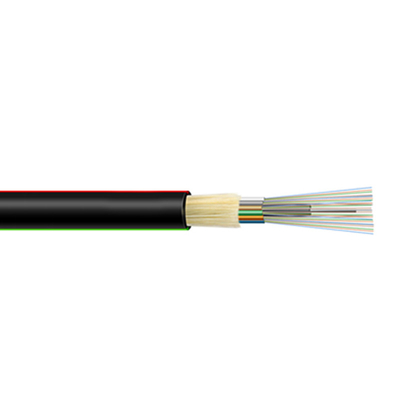

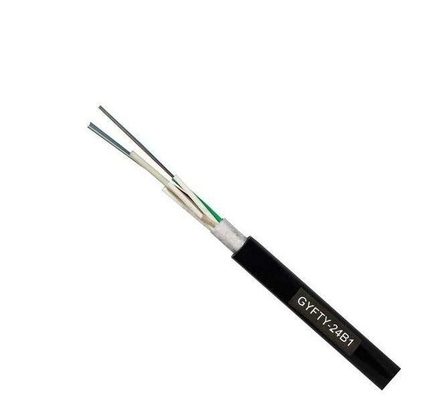

Outdoor Single mode G652D FRP strength member 12 24 48 96 core fiber optic cable GYFTY
| Place of Origin: | Zhejiang |
| Brand Name: | OEM |
| Model Number: | MT-1098 |
| Fiber Type: | G652D ,G657A1,G657A2 |
| Product name: | GYFTY |
| Fiber Number: | 4-144core |
| Jacket: | HDPE,LSZH |
| Certification: | CE/ROHS |
Product features:

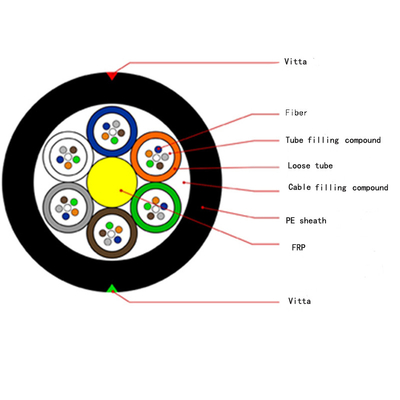

Outdoor optical cable for communication with nonmetal reinforced member, holster layer stranding filling type and polyethylene outer sheath
characteristic:
1. Select high-quality optical fiber to ensure excellent transmission performance.
2. Control the excess length of optical fiber to ensure that the optical cable has excellent mechanical characteristics and temperature characteristics
Sex.
3. Strict process and raw material control to ensure stable operation of optical cable.
4. The loose tube is filled with special ointment to protect the optical fiber.
5. Full section water blocking structure ensures good water and moisture resistance performance.
6. The center is a non-metallic reinforced member (FRP), which avoids the lightning induced breakdown between the longitudinal wrapped steel strip and the central reinforcing member.
7. The double-sided corrugated steel strip is longitudinally wrapped and tightly bonded with the PE sheath, which not only ensures the radial moisture-proof of the optical cable, but also enhances the lateral pressure resistance of the optical cable.
Performance index:
Application scope: suitable for long distance communication and inter office communication
Laying method: pipeline, overhead
Working temperature: - 40 ℃~ + 70 ℃
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20°C) |
@850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.45 dB/km | ≤0.50 dB/km | |||
| @1550nm | ≤0.30 dB/km | ≤0.50dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.657A1 | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | ||
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm |
dB | ≤0.75 |
| 1turn×10mm radius@1625nm |
dB | ≤1.5 | ||
Package
FAQ
1.Are you the real manufacturer?
We are the real manufacturer with 19 year’s exprerience.
2.What’s the MOQ?
The MOQ is 1km.
3.What’s delivery time?
The general delivery time is 5-9 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc.
