Product Details:
|
| Application: | Telecommunication,Duct,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Type: | Single Mode G652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode | Fiber Count: | 2-144 Core |
| Color: | Black,Blue,Grey,Customized,Green | Jacket: | PE,MDPE,LSZH,PVC,PVC Outer Sheath |
| Length: | 2km Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Installation: | Self- Supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct | Structure: | Loose Tube,Unitube |
| Operating Temperature: | -40~75 | Sheath Material: | LSZH,HDPE |
| Strength Member: | Steel Wire | Fiber Color: | Blue,Orange,Brown,Aqua,Grey |
| High Light: | G652D PE Optical Fiber Cable,GYTS Optical Fiber Cable 144Core |
||

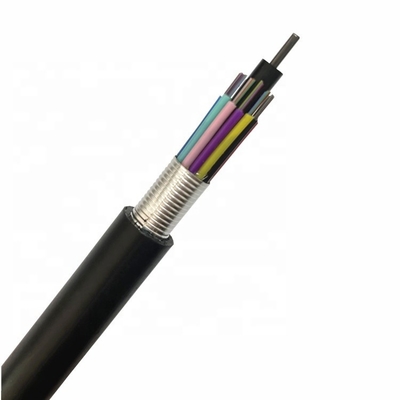

2-144 core G652D PE underground GYTS Anti outdoor optical fiber cable
Description:

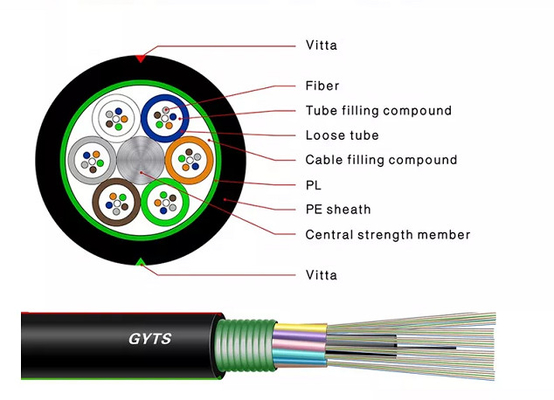

GYTS The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.
Application:
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE/LSZH sheath protects cable from ultraviolet radiation
· 100% cable core filling
Drawings Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable
