Product Details:
|
| Application: | Telecommunication,Telecom,Network,internet,Lan | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,12,24,48,96 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYTA 53 Single Mode GYTA GYTS 24 Core Fiber Optical Optic Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Installation: | Self- Supporting Aerial,aerial, Duct | Structure: | Loose Tube,Unitube |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum,or As Per Requirement |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | 144 Core GYTA Fiber Optic Cable,1500N GYTA Fiber Optic Cable |
||

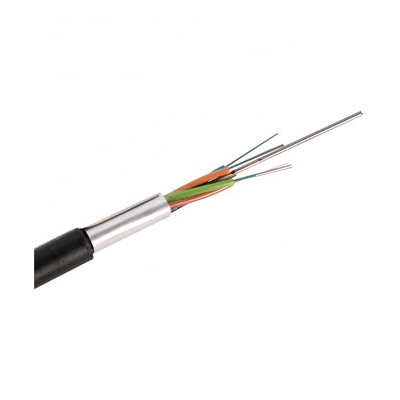

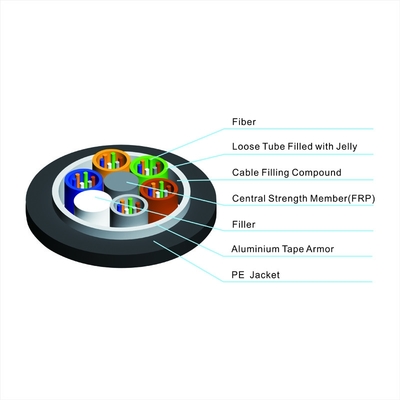

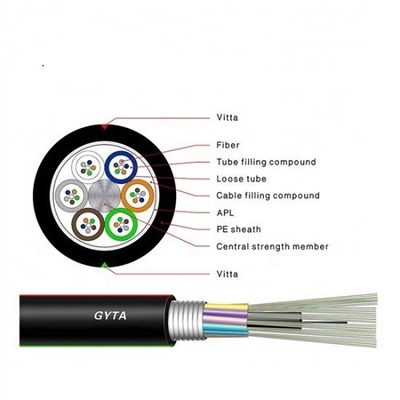

It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High
strength loose tube that is hydrolysis resistant; Cable filling materials ensure high reliability; APL makes the cable crush
resistant and moisture proof. So, the GYTA has a very good watertight performance.
Characteristics of GYTA 53 single mode GYTA GYTS 24 core fiber optical optic cable
· Has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Two parallel wires ensure the tensile strength of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
