Product Details:
|
| Name: | 6 Core Aerial Single Mode Figure 8 Fiber Optic Cable GYXTC8S | Fiber Type: | G652D |
|---|---|---|---|
| Fiber Count: | 24F | Type: | Fiber Optic Cable |
| Cable Diameter: | 9.8*18.5mm | Strength Member: | Steel Wire |
| Installation: | Self-supporting/Aerial | Application: | Aerial, Long-distance Communication And LAN, FTTX Network, Outdoor Aerial Application, Telecom |
| Messenger Member: | Steel Wire | Certification: | ISO9000 |
| Fiber Options: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 | Color: | Customized |
| High Light: | GYXTC8S Fiber Optic Cable,Outdoor Figure Armored Fiber Optic Cable,24F Aerial Figure 8 Fiber Optic Cable |
||
GYXTC8S Outdoor Figure Armored Single Mode Communication fiber optic Cable

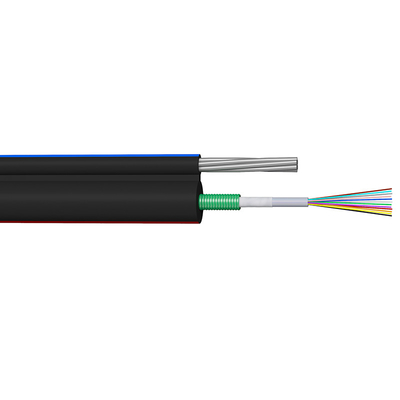

Description
1. 250μm Coloured Fiber
2. PBT loose Tube
3. Tube Filling Compound(Gel)
4. PSP corrugated steel tape armored
5. PE Outer Sheath
Characteristics
1, Good mechanical and temperature performance
2, High strength loose tube that is hydrolysis resistant
3, Special tube filling compound ensure a critical protection of fiber
4, Crush resistance and flexibility
5, PE/LSZH sheath protects cable from ultraviolet radiation
6, 100% cable core filling
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Storage/Operating Temperature: -40°C to + 70°C
F&Q
We have first-class production line and strict quality management system.
We can give customers the most competitive price to meet your budget.
We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
Q1: Where is your factory located How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China.All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years,and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly,we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,it is okay.please give us letter of authorization.

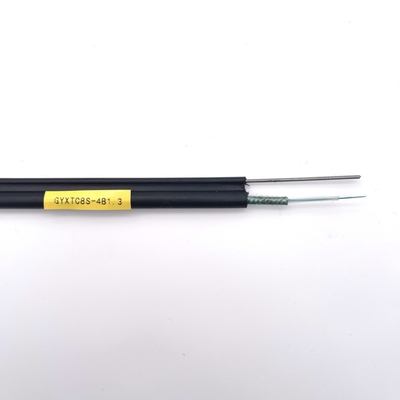

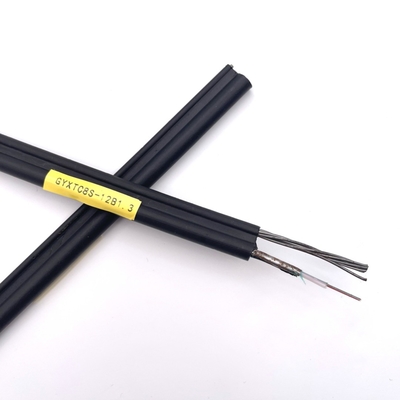

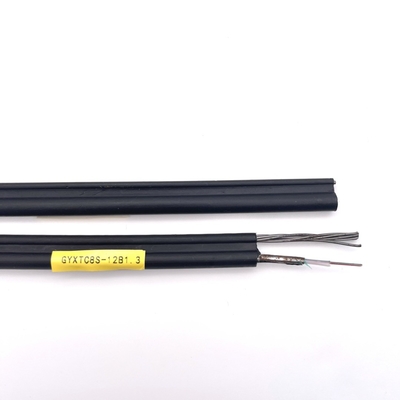

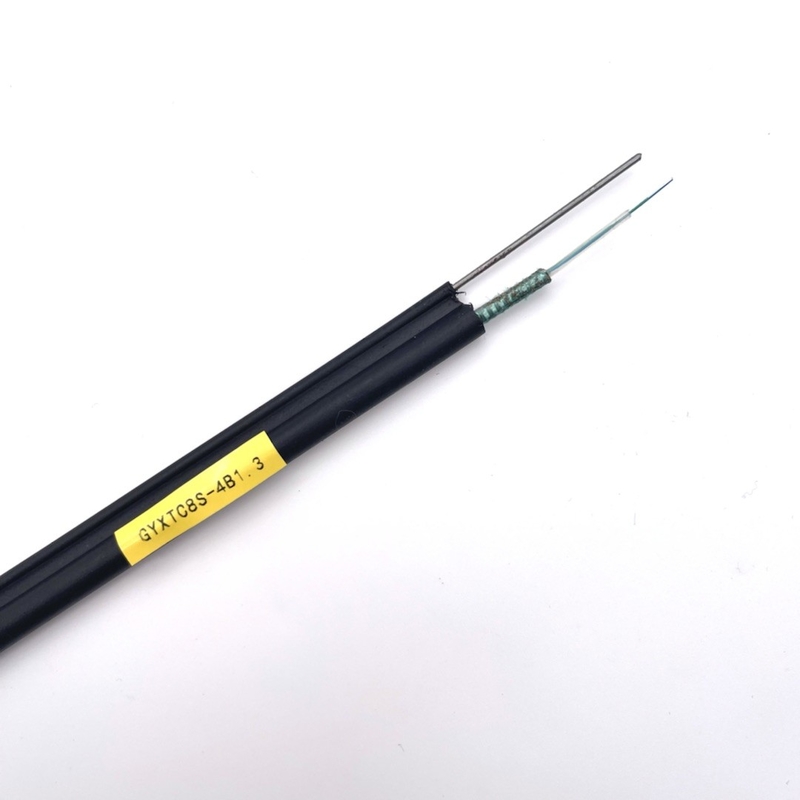

Drawings of 6 Core Aerial Single Mode Figure 8 Fiber Optic Cable GYXTC8S
