Product Details:
|
| Type: | Optical Fiber Cable | No.of Fiber: | 24 |
|---|---|---|---|
| Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
| Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
| Product Name: | FTTH LSZH Jacket GJYXCH GJYXFCH Outdoor FTTH Cable 2 4 8 12 Core Fiber Optic Cable | Wavelength: | 1310/1550nm |
| Place Of Origin: | Hubei, China | Jacket Material: | LSZH |
| High Light: | 1310nm FTTH Drop Cable,Outdoor FTTH Drop Cable,LSZH Sheath Fiber Optic Cable |
||
FTTH Drop Cable Indoor Outdoor LSZH Sheath GJYXCH GJYXFCH Fiber Optic Cable
Description

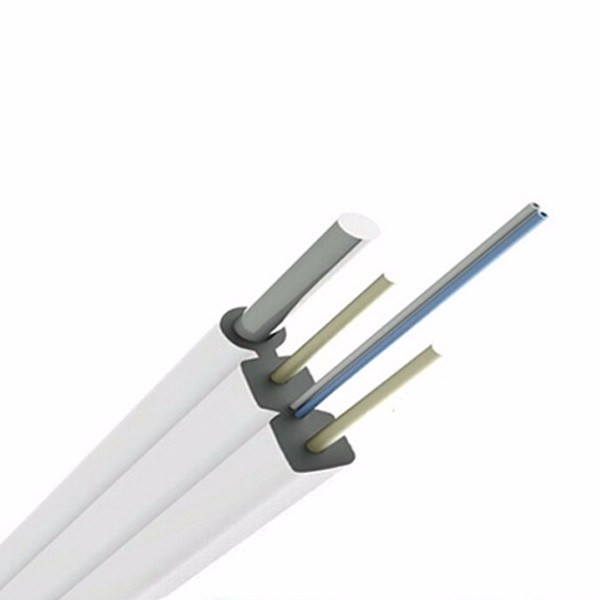

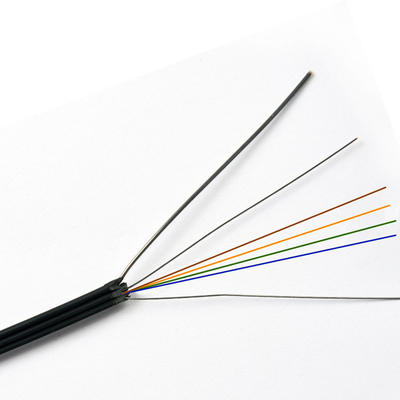

This optical fiber unit is positioned in the center,Two parallel steel wire(0.45 mm*2) are placed at the two sides,A steel wire as the additional strength member is also applied,then the cable is completed with a black or white LSZH sheath.
Product features:
1. High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2. Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3. Novel flute design, easily strip and splice, simplify the installation and maintenance
4. Low smoke zero halogen and flame retardant sheath
5. Single mode
6. (4.0±0.2)x(8.0±0.2)mm
7. Compliant with Telcordia GR-326-CORE specification
Structural feature:
1. Central loose tube protects once coated optical fiber
2. The optical fiber is concentrated in the center of the cable, and the reinforcements are distributed on both sides of the cable sheath
3. A water blocking layer is provided between the steel belt and the cable core
4. Double-sided plastic-coated corrugated steel tape-polyethylene bonded outer sheath
5. Double steel wire parallel reinforcement
Application:
Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
|
Structure and Technical Specifications
| Fiber Count |
Cable Diameter |
Cable Weight |
|
Crush Resistance |
|||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 | |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension(Long Term) | N | 100 |
| Tension(Short Term) | N | 200 |
| Crush(Long Term) | N/10cm | 1000 |
| Crush(Short Term) | N/10cm | 2200 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 5D |
| Operating Temperature | ℃ | –20~+60 |
| Storage Temperature | ℃ | –20~+60 |
|
