Product Details:
|
| Type: | Optical Fiber | No.of Fiber: | 8/12/24 |
|---|---|---|---|
| Use: | FTTx Solutions | Multi-mode Fiber: | OM2/OM3/OM4 |
| Connectors: | MPO | Capacity: | 12 Or 24 Cores |
| Insertion Loss: | ≤0.35dB (SM), ≤0.30 DB (MM) | Application: | FTTH, FTTx |
| Jacket Material: | LSZH, PVC, OFNR, OFNP | Product Name: | MPO-LC Patchcord |
| Package: | Plastic Bag, Carton, 1km/roll | Jacket: | LSZH PVC, PVC Outer Sheath, PE |
| High Light: | 12 Core Fan Out Kit Fiber,MPO To LC Fan Out Kit Fiber,2.0mm Fiber Patch Cord |
||

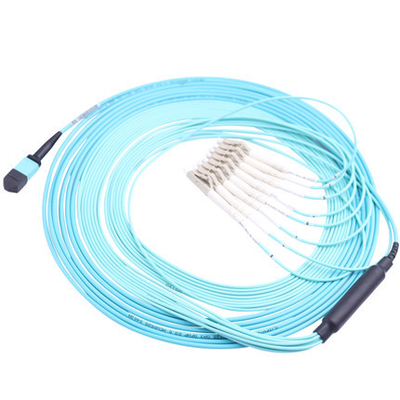

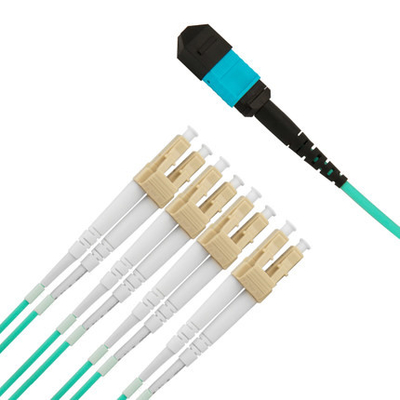

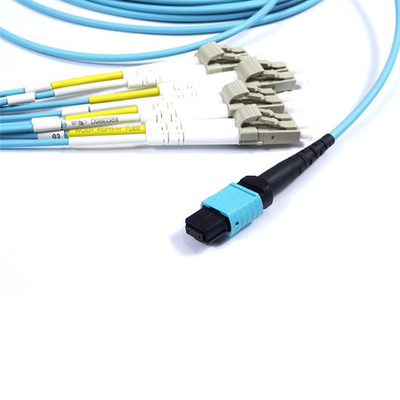

12 core MTP Jumper breakout Cord 2.0mm MPO to LC Fanout Optical Cable
Description:
Fiber Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling" Sorting it by different connector type, it has LC/ SC/ ST/ FC/ MU/ DIN/E2000.
Patch cord also come in hybrid varieties with 2 different connector on the 2 ends
Sorting it by different ceramic ferrule type, it has PC, UPC, APC.
Sorting it by different fiber type, it has simplex (G652D, G657A2, G657A1, G652B ), dulplex and multiplex (OM1,OM2,OM3,OM4,OM5),
For the Fiber Patch Cables, they are widely be used in Telecom, 4G/5G, Intelligent building, intelligent city, data center, FTTA, FTTH and etc.
Application range
Used for fiber distribution frame or fiber information socket to switch connection,
connection between switches, switch and computer connection, and fiber information socket to computer connection,
can be applied to the management subsystem, inter-device subsystem and workspace subsystem
