Product Details:
|
| Type: | Optical Fiber Cable | No.of Fiber: | 24 |
|---|---|---|---|
| Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
| Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
| Product Name: | All Dielectric Non-Metal 48 Core GYFTY Underground Fiber Optical Cable | Wavelength: | 1310/1550nm |
| High Light: | All Dielectric FOC Fiber Optic Cable,48 Core FOC Fiber Optic Cable,Underground Optical Fiber Cable |
||

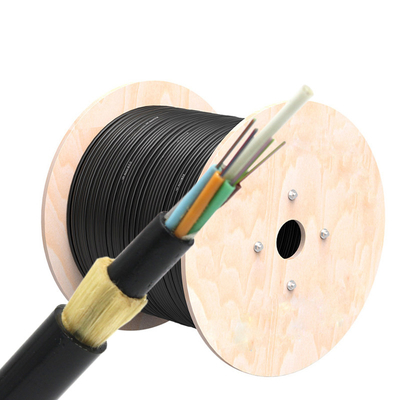

All Dielectric Non-Metal 48 Core GYFTY Uuderground Fiber Optical Cable
Description
The fibers , 250um , are positioned in a loose tube made of ahigh modulus plastic . The tubes are filled with a water-resistantfilling compound . A Fiber Reinforced Plastic ( FRP ) locates in thecenter of core as a non-metallic strength memberThe tubes ( and fillers ) are stranded around the strength memberinto a compact and circular core . After the cable core is filledwith the filling compound to protect it from water ingress . thecable is completed with a PE sheath
Cable parameters
|
No. of cable
|
4
|
8
|
12
|
24
|
48
|
72
|
144
|
|
|
Fiber Model
|
G.652D
|
|||||||
|
Design(Strength Member + Tube &Filler)
|
1+5
|
1+6
|
1+12
|
|||||
|
Central Strength
Member |
Material
|
FRP
|
||||||
|
Diameter(±0.05)mm
|
1.5
|
2.0
|
||||||
|
Loose Tube
|
Material
|
PBT
|
||||||
|
|
Diameter(±0.06)mm
|
1.72
|
2.0
|
||||
|
Thickness(±0.03)mm
|
0.30
|
0.32
|
|||||
|
The Max. Core NO./Tube
|
4
|
6
|
12
|
||||
|
Filler Rope |
Material
|
LDPE
|
|||||
|
Color
|
White
|
||||||
|
Diameter(±0.06)mm
|
1.7
|
2.0
|
|||||
|
Water Blocking layer(Material)
|
Flooding Compound
|
||||||
|
Outer
Sheath |
Material
|
MDPE
|
|||||
|
Thickness(±0.2)mm
|
1.8
|
||||||
|
Cable Diameter
|
8.3
|
8.9
|
9.4
|
13.2
|
|||
|
Cable Weight
|
55
|
65
|
75
|
160
|
|||
|
Min. bending radius |
Without Tension
|
10.0×Cable -φ
|
|||||
|
Under Maximum Tension
|
20.0×Cable -φ
|
||||||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|||||
|
Transport & Storage
|
-40~+70
|
||||||
|
Operation
|
-40~+70
|
||||||
Applications
Remote base station communication such as RRU or BBU.
Smart substation and CATV Outdoor application.
Emergency access to optical fiber communication.
Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable.
Characteristics
1..Good mechanical and temperature performance.
2.High strength loose tube that hydrolysis resistant.
3.Special tube filling compound ensure a critical protection of fiber itself.
4.Crush resistance and flexibility.
