Product Details:
|
| Type: | Optical Fiber Cable | Structuer: | Stranded Loose Tube |
|---|---|---|---|
| Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
| Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
| Product Name: | Outdoor Armoured 2 4 6 8 10 12 Core Multi/Single Mode GYXTW Fiber Optic Cable | Wavelength: | 1310/1550nm |
| Place Of Origin: | Hubei, China | Certification: | ISO9001:2008 |
| High Light: | 1.5mm GYXTW Fiber Optic Cable,Armoured FOC Fiber Optic Cable,SM FOC Fiber Optic Cable |
||

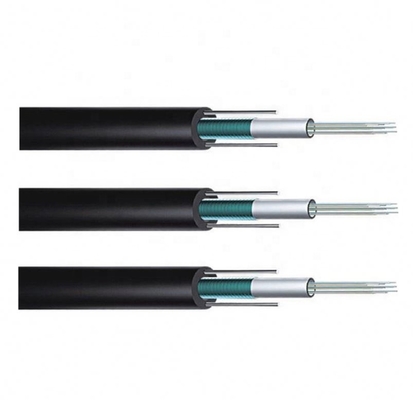

Outdoor Armoured 2 4 6 8 10 12 Core Multi/Single Mode GYXTW Fiber Optic Cable
Description

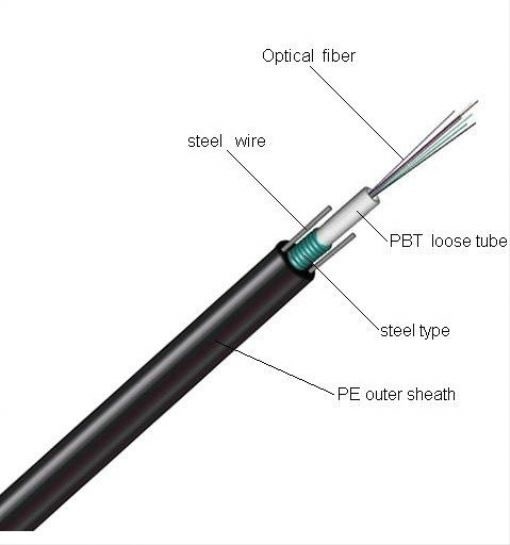

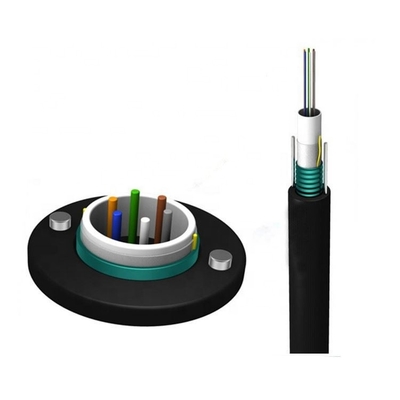

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
Main Features
Cable parameters
|
No. of cable
|
4
|
8
|
12
|
24
|
48
|
72
|
144
|
|
|
Fiber Model
|
G.652D
|
|||||||
|
Design(Strength Member + Tube &Filler)
|
1+5
|
1+6
|
1+12
|
|||||
|
Central Strength
Member |
Material
|
FRP
|
||||||
|
Diameter(±0.05)mm
|
1.5
|
2.0
|
||||||
|
Loose Tube
|
Material
|
PBT
|
||||||
|
|
Diameter(±0.06)mm
|
1.72
|
2.0
|
||||
|
Thickness(±0.03)mm
|
0.30
|
0.32
|
|||||
|
The Max. Core NO./Tube
|
4
|
6
|
12
|
||||
|
Filler Rope |
Material
|
LDPE
|
|||||
|
Color
|
White
|
||||||
|
Diameter(±0.06)mm
|
1.7
|
2.0
|
|||||
|
Water Blocking layer(Material)
|
Flooding Compound
|
||||||
|
Outer
Sheath |
Material
|
MDPE
|
|||||
|
Thickness(±0.2)mm
|
1.8
|
||||||
|
Cable Diameter
|
8.3
|
8.9
|
9.4
|
13.2
|
|||
|
Cable Weight
|
55
|
65
|
75
|
160
|
|||
|
Min. bending radius |
Without Tension
|
10.0×Cable -φ
|
|||||
|
Under Maximum Tension
|
20.0×Cable -φ
|
||||||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|||||
|
Transport & Storage
|
-40~+70
|
||||||
|
Operation
|
-40~+70
|
||||||
