Product Details:
|
Type: | Optical Fiber Cable | No.of Fiber: | 24 |
---|---|---|---|
Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
Product Name: | 1.25G/2.5G GPON ONU SFP Stick TX1310/RX1550 | Wavelength: | 1310/1550nm |
Fiber Type: | Singlemode 9/125 | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
Package: | Plastic Bag, Carton | ||
High Light: | Flexible Optical Patch Cord,0.9mm Optical Patch Cord,FTTH Metal Armored Cable |

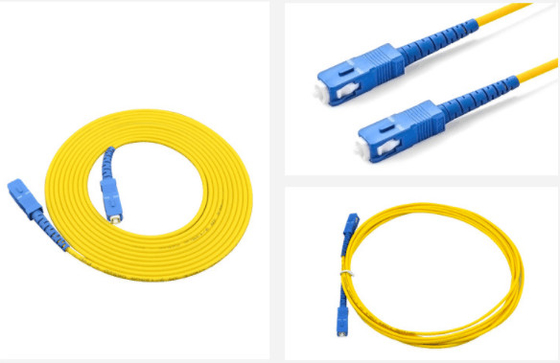

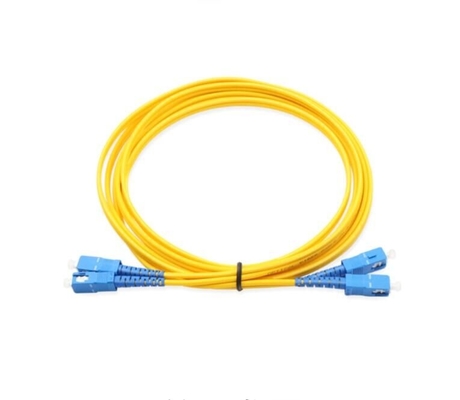

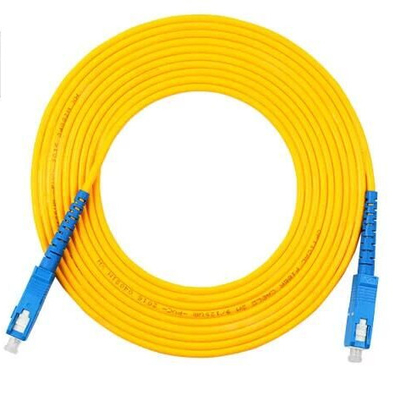

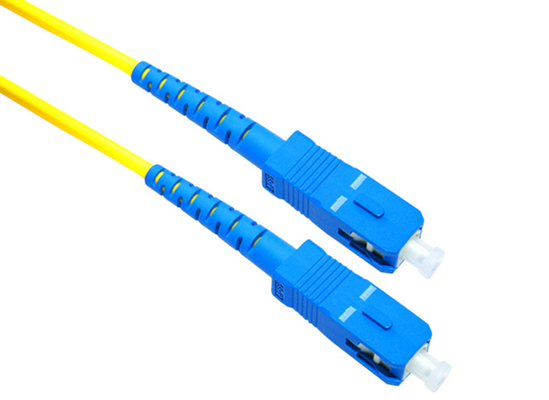

FTTH Solution Flexible Metal Armored Optical Patch Cord With SC/LC/FC Connector
Description
Armored Optical Patch Cord with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Environmental Reliability Test
The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
Product features
· Drop cable structure, put fiber on the center of two parallel strengthen pieces, then parcel a layer of flame retardant, PE sheathed (LSZH).Self Supporting bring in drop cable structure,Increase metal suspension on usual drop cable structure, ensure the drop cable patchcord performance such as tensile, flame retardant.
· Drop cable adopt G. 657 fiber,small bending radius guarantee the drop cable patchcord fine flexural performance
· Drop cable patchcord will be produced to different kind of connectors and different length according to the construction need.
Application
1. optical fiber communication system
2. optical access network
3. Optic-fiber Date Communication
4. Optical-fiber CATV
5. A local area network (LAN)
6. Test Equipment
Mode
|
Single mode
|
Multimode
|
|
Polish
|
UPC
|
APC
|
PC
|
Insertion Loss
|
≤0.30dB
|
≤0.20dB
|
≤0.20dB
|
Return Loss
|
≥50dB
|
≥60dB
|
≥30dB
|
Test Wavelength
|
1310/1550nm
|
850/1310nm
|
|
Durability(500 Matings)
|
≤0.2dB
|
||
Operating Temperature
|
-40℃~+60℃
|
||
Storage Temperature
|
-45℃~+85℃
|
||
Fire Resistant
|
IEC 60794-2-30
|
||
Standards-Compliant
|
ROHS,IEC and GR-326
|
Fiber type
|
Single mode:
|
(1)9/125-G652D
|
(2)9/125-G655
|
(3)9/125-G657A,G657A2
|
(4)9/125-G657B3
|
|
Multimode:
|
(5)50/125-OM2
|
(6)62.5/125-OM1
|
(7)50/125-OM3
|
(8)50/125-OM4
|
(9)50/125-OM5
|
|
Fiber Brand
|
YOFC, Corning, Sumitomo, Fujikura
|
|||||
Connector
|
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
|
|||||
Cord type
|
Simplex ,Duplex
|
|||||
Cable diameter
|
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
|
|||||
Cable jacket
|
PVC, OFNR, LSZH, OFNP
|
|||||
length(M)
|
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
|
