Product Details:
|
| Type: | Optical Fiber Cable | No.of Fiber: | 24 |
|---|---|---|---|
| Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
| Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
| Product Name: | Fiber Optic Cable 48 96 244Core ADSS G652D 100m To 800m Span Fiber Optic Cable | Wavelength: | 1310/1550nm |
| Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH | Fiber Type: | G657A2 G.657A1, G.652D |
| Strengthen Member: | FRP Or Steel 0.4mm/0.45mm/0.5mm, 1 Steel Wire+ 2 FRP | ||
| High Light: | 48 Core ADSS Fiber Cable,Water Blocking ADSS Fiber Cable,ISO9001 FOC Fiber Optic Cable |
||
Outdoor Single Mode Self Supporting ADSS 48 Core Fiber Optical Cable

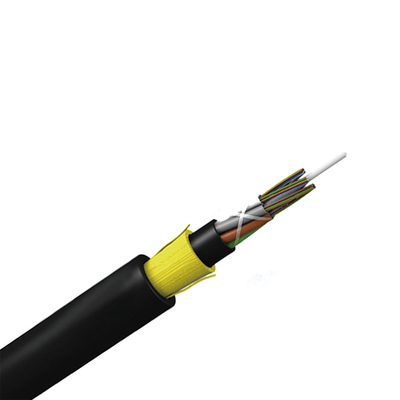

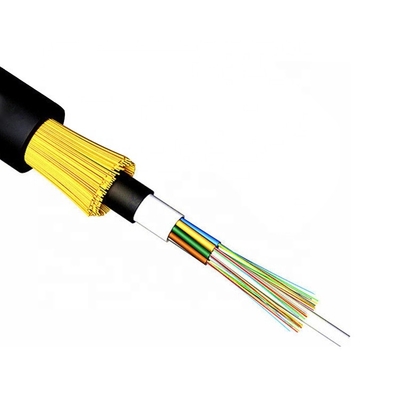

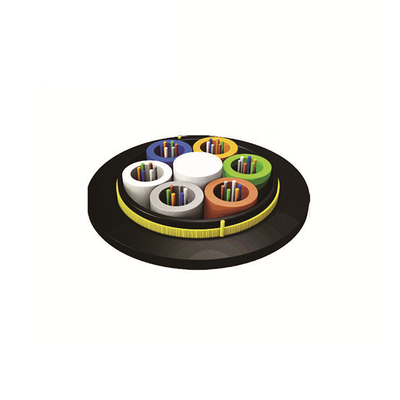

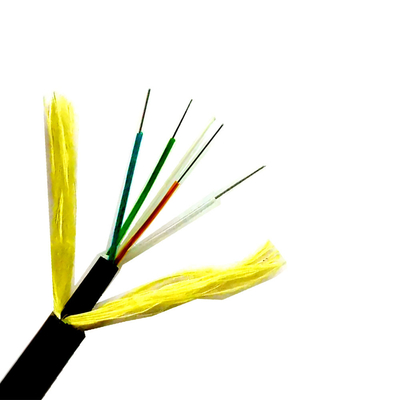

ADSS cable adopts loose tube gysts structure, optical fiber into the pine casing made of high modulus polyester material, waterproof casing filling compound pine casing (and filling line) around non-metallic center (FRP) to strengthen core twisted into a compact core, core within the gap filled with gel core outer extrusion polyethylene (PE) inner sheath, and then strengthen the bidirectional twisted around two layers of the function of aramid yarn, finally extrusion polyethylene (PE) coat or electrical erosion resistance (AT) your coat.
Characteristics
1, Good mechanical and temperature performance
2, High strength loose tube that is hydrolysis resistant
3, Special tube filling compound ensure a critical protection of fiber
4, Crush resistance and flexibility
5, The following measures are taken to ensure the cable watertight:
6, Single Fiber Reinforced Plastic as the central strength member
7, Loose tube filling compound
8, 100% cable core filling
9, PSP enhancing moisture-proof
10, Water-blocking material
|
Cable Diameter (mm)
|
Indoor FTTH Drop Cable
|
Outdoor FTTH Drop Cable
|
||
|
Insertion Loss(dB)
|
≤0.2
|
|||
|
Return Loss (dB)
|
≥50
|
≥60
|
||
|
Cable Diameter (mm)
|
2.0mm, 3.0mm
|
|||
|
Durability(dB)
|
1000matings, <0.3
|
|||
|
Interchangeability (dB)
|
<0.2
|
|||
|
Operating temperature(℃)
|
-40~+85
|
|||
|
Fiber count
|
2-288 cores
|
|
Out sheath
|
Black Polyethylene (PE)
|
|
Support
|
FTTH FTTB FTTX Network
|
|
Application
|
Outdoor Aerial
|
|
Installation tensile
|
25KN
|
|
Certification
|
ISO9001/CE/RoHS
|
|
Standard
|
IEC 6079-1;IEEE 1222-2004
|
|
Color
|
Deafult / OEM
|
|
Fiber Type
|
G.652
|
G.655
|
50/125^m
|
62.5/125^m
|
|
|
(+20X) |
850 nm
|
|
|
<3.0 dB/km
|
<3.3 dB/km
|
|
1300 nm
|
|
|
<1.0 dB/km
|
<1.0 dB/km
|
|
|
1310 nm
|
<0.36 dB/km
|
<0.40 dB/km
|
|
|
|
|
1550 nm
|
<0.22 dB/km
|
<0.23 dB/km
|
|
|
|
|
|
850 nm
|
|
|
>500 MHz-km
|
>200 Mhz-km
|
|
1300 nm
|
|
|
>500 MHz-km
|
>500 Mhz-km
|
|
|
Numerical Aperture
|
|
|
0.200±0.015 NA
|
0.275±0.015 NA
|
|
|
Cable Cut-off Wavelength λcc
|
<1260 nm
|
<1450 nm
|
|||
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tensio (Long Term) | N | 600 |
| Tension (Short Term) | N | 1500 |
| Crush (Long Term) | N/10cm | 300 |
| Crush (Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
