Product Details:
|
| Type: | Optical Fiber Cable | No.of Fiber: | 24 |
|---|---|---|---|
| Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
| Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
| Product Name: | GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member Fiber Optic Cable | Wavelength: | 1310/1550nm |
| Package: | Plastic Bag, Carton, 1km/roll | Sheath: | LSZH, PVC, PE |
| High Light: | 1550nm Steel Armored Fiber Optic Cable,48 Core Steel Armored Fiber Optic Cable,Outdoor FOC Fiber Optic Cable |
||

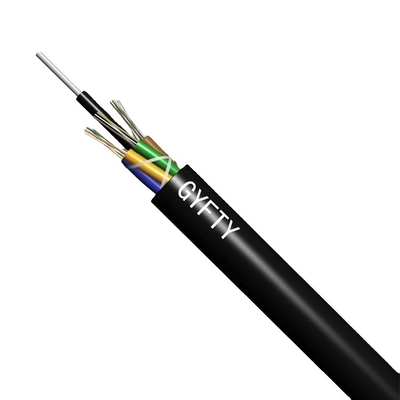

Indoor Outdoor 24 48 Core Single Mode Steel Armored GYFTY Fiber Optic Cable
The fibers, single mode or multi mode , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Aluminum tape, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
The Aluminum tape is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

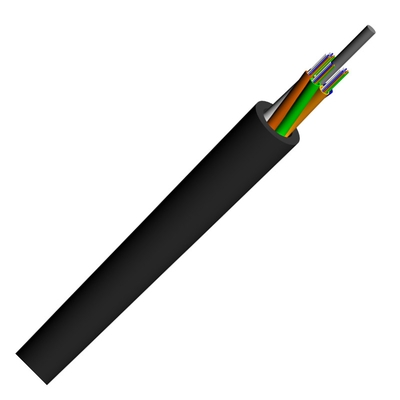

Features Cable Structure
1, Excellent mechanical and temperature performance.
2, Special tube filling compound ensure a critical protection of fiber and resist the water.
3, Single FRP as the central strenath member to withstand axial Loose tube loads.
4, PE sheath protects cable from ultraviolet radiation.
5, 100% core filling water prevent cable jelly to ensure the cable PE sheath watertight.
Performance
Non-metallic structure providing excellent anti-electromagnetism. anti thunder and anti-static performances.
Q&A
1.Are you the real manufacturer?
Yes. We are the real manufacturer with almost 200 staff.
2.How many years have you been in the field of fiber optics ?
Since 2001.
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, CPR, ANATEL, RoHs,etc.
6.What is your delivery time?
Usually within 3-4 working days
7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KMFTTH/FTTX/FTTA Cable, 6,000,000 KM per year; Patch Cord/Pigtails, 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
Fiber Parameter
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.24 | ||
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tensio (Long Term) | N | 600 |
| Tension (Short Term) | N | 1500 |
| Crush (Long Term) | N/10cm | 300 |
| Crush (Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |

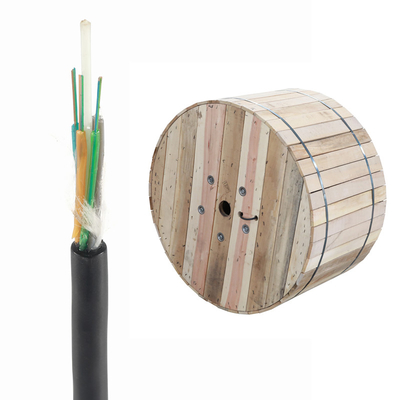

Packing
