Single Mode 24 Core GYXTW Fiber Cable 70 Degree With Two Steel Wire

Outdoor Single Mode 24 Core With Two Steel Wire GYXTW Optical Fibra Cable

Description

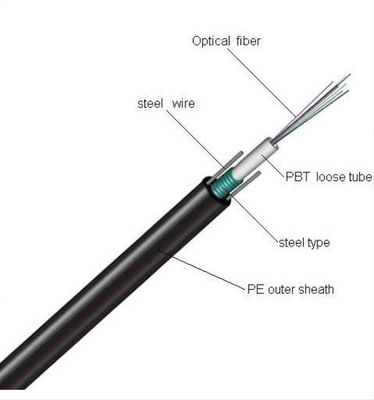

The tube is wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.The central loose tube optical fiber cable GYXTW is suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access networ


Features:

1, Uni-tube gel-filled construction for superior fiber protection.

2, Metallic armor to protect cable from rodent attack and mechanical damage.

3, Embedded steel wire provide desirable tensile strength and crush resistance.

4, Compact, easy to install.

5, UV and waterproof design.

Application:

1, Interbuilding voice or data communication.

2, Installed in duct, underground conduit.

3, FTT.

Characteristics

1, Good mechanical and temperature performance；
2, High strength loose tube that is hydrolysis resistant；                                                                                                    3, 3,  Special tube filling compound ensure a critical protection of fiber；
4, Crush resistance and flexibility；
5, Two parallel steel wires ensure tensile strength；
6, Small diameter, light weight and friendly installation；

Fiber Parameter

Cable Parameters

Mechanical and Environmental Characteristics

Packing
