Product Details:
|
| Type: | Optical Fiber Cable | Use: | FTTx Solutions |
|---|---|---|---|
| Single-mode Fiber: | G652D,G657A1,G657A2 | Application: | Telecom Comunication |
| Operate Temperature: | -40℃- +70℃ | Product Name: | Outdoor Self-Supporting Aerial 24 Core G652D ADSS OFC Fiber Optic Cable |
| Wavelength: | 1310/1550nm | Fiber Count: | 2 4 6 8 12 24 48 96 144 Core Fiber Optic Cable |
| Place Of Origin: | Wuhan,China | Jacket Material: | PE/LSZH |
| High Light: | G652D OFC Fiber Optic Cable,12 Core OFC Fiber Optic Cable,Aerial FOC Fiber Optic Cable |
||

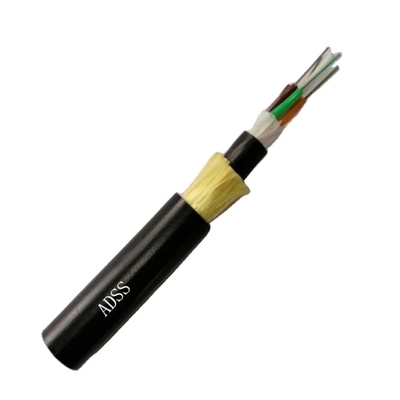

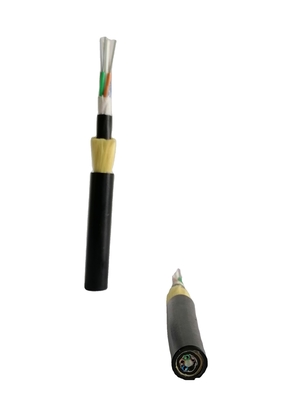

Outdoor Self-Supporting Aerial 24 Core G652D ADSS OFC Fiber Optic Cable
Description
ADSS cable adopts loose tube gysts structure, optical fiber into the pine casing made of high modulus polyester material, waterproof casing filling compound pine casing (and filling line) around non-metallic center (FRP) to strengthen core twisted into a compact core, core within the gap filled with gel core outer extrusion polyethylene (PE) inner sheath, and then strengthen the bidirectional twisted around two layers of the function of aramid yarn, finally extrusion polyethylene (PE) coat or electrical erosion resistance (AT) your coat.
Characteristics
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·The following measures are taken to ensure the cable watertight:
-Single Fiber Reinforced Plastic as the central strength member
-Loose tube filling compound
-100% cable core filling
-PSP enhancing moisture-proof
-Water-blocking material
Application
1.Install on the same pole or tower with high voltage power transmission line within 220KV.
2.Not rely on eclectic phase wire or ground wire, can be executed on an electric circuit.
3.Communication and electrical power transmission are different system; and the installation, maintenance and repair can be operated with no influence on each other.
4.Calculate out the electric field and sag accurately by computer to ascertain the best installation place.
Cable parameters
|
No. of cable
|
4
|
8
|
12
|
24
|
48
|
72
|
144
|
|
|
Fiber Model
|
G.652D
|
|||||||
|
Design(Strength Member + Tube &Filler)
|
1+5
|
1+6
|
1+12
|
|||||
|
Central Strength
Member |
Material
|
FRP
|
||||||
|
Diameter(±0.05)mm
|
1.5
|
2.0
|
||||||
|
Loose Tube
|
Material
|
PBT
|
||||||
|
|
Diameter(±0.06)mm
|
1.72
|
2.0
|
||||
|
Thickness(±0.03)mm
|
0.30
|
0.32
|
|||||
|
The Max. Core NO./Tube
|
4
|
6
|
12
|
||||
|
Filler Rope |
Material
|
LDPE
|
|||||
|
Color
|
White
|
||||||
|
Diameter(±0.06)mm
|
1.7
|
2.0
|
|||||
|
Water Blocking layer(Material)
|
Flooding Compound
|
||||||
|
Outer
Sheath |
Material
|
MDPE
|
|||||
|
Thickness(±0.2)mm
|
1.8
|
||||||
|
Cable Diameter
|
8.3
|
8.9
|
9.4
|
13.2
|
|||
|
Cable Weight
|
55
|
65
|
75
|
160
|
|||
|
Min. bending radius |
Without Tension
|
10.0×Cable -φ
|
|||||
|
Under Maximum Tension
|
20.0×Cable -φ
|
||||||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|||||
|
Transport & Storage
|
-40~+70
|
||||||
|
Operation
|
-40~+70
|
||||||
