Product Details:
|
| Type: | Optical Fiber Cable | No.of Fiber: | 24 |
|---|---|---|---|
| Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
| Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
| Product Name: | Fiber Optic Cable 48 96 244Core ADSS G652D 100m To 800m Span Fiber Optic Cable | Wavelength: | 1310/1550nm |
| High Light: | 244 Core ADSS Fiber Optic Cable,800m G652D Fiber Optic Cable,96 Core G652D Fiber Optic Cable |
||
Fiber optic cable 48 96 244Core ADSS G652D 100m to 800m span fiber optic cable

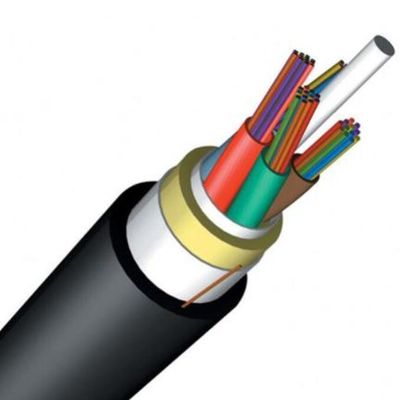

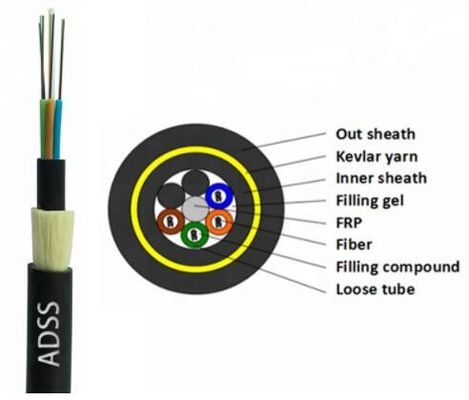

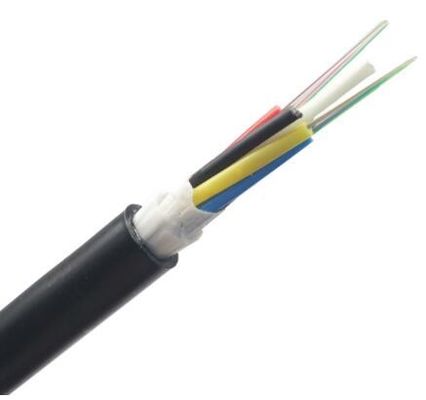

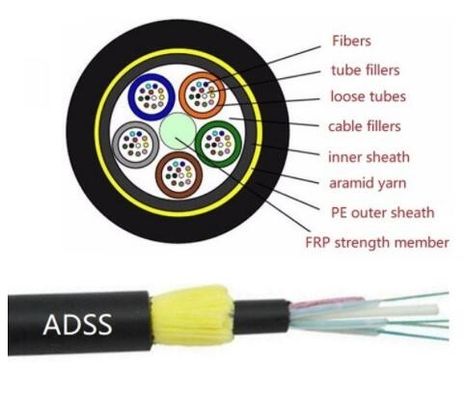

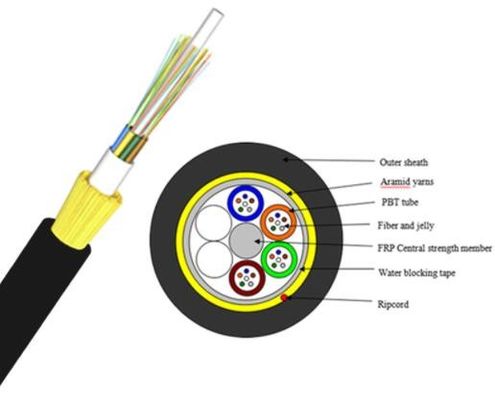

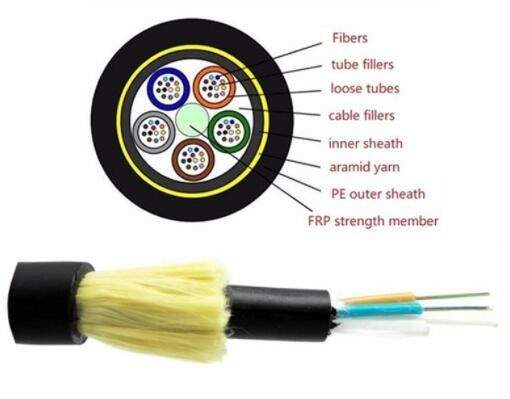

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
Applicable fields:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods
High-voltage area, Aerial
Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
Fiber count | 2-288 cores |
Out sheath | Black Polyethylene (PE) |
Support | FTTH FTTB FTTX Network |
Application | Outdoor Aerial |
Installation tensile | 25KN |
Certification | ISO9001/CE/RoHS |
Standard | IEC 6079-1;IEEE 1222-2004 |
Color | Deafult / OEM |
Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
(+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
1300 nm | <1.0 dB/km | <1.0 dB/km | |||
1310 nm | <0.36 dB/km | <0.40 dB/km | |||
1550 nm | <0.22 dB/km | <0.23 dB/km | |||
850 nm |
| >500 MHz-km | >200 Mhz-km | ||
1300 nm | >500 MHz-km | >500 Mhz-km | |||
Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
Cable Cut-off Wavelength λcc | <1260 nm | <1450 nm | |||
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tensio (Long Term) | N | 600 |
| Tension (Short Term) | N | 1500 |
| Crush (Long Term) | N/10cm | 300 |
| Crush (Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
