Product Details:
|
Type: | Optical Fiber Cable | No.of Fiber: | 24 |
---|---|---|---|
Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
Product Name: | Fiber Optic Cable Outdoor Singlemode Fiber Optical Cable Ftth Optical Fiber Cables Wire | Wavelength: | 1310/1550nm |
High Light: | FTTH Singlemode Fiber Cable,HDPE Jacket Singlemode Fiber Cable,Singlemode Outdoor FTTH Cable |

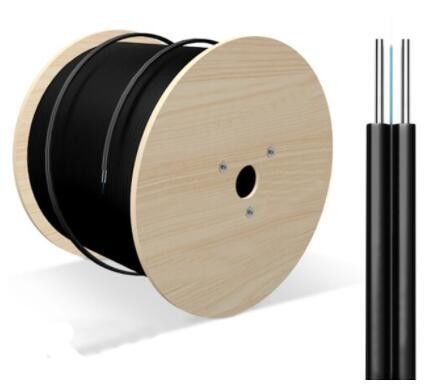

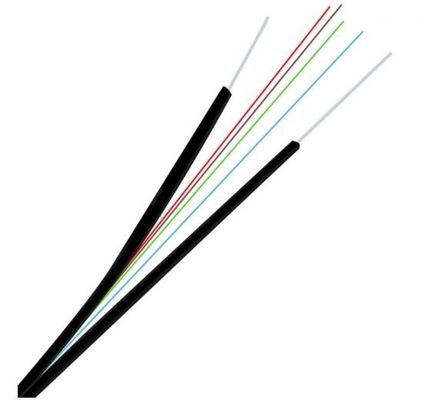

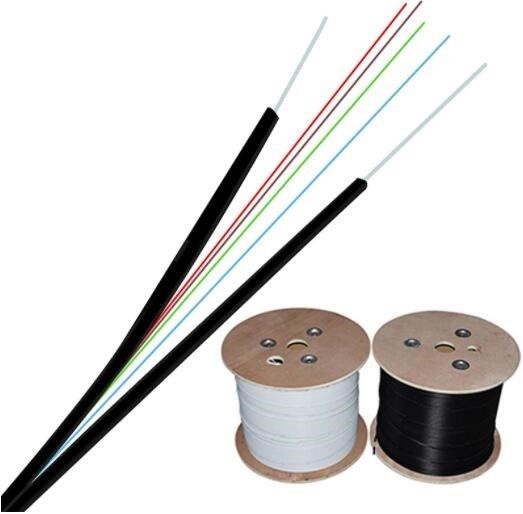

Fiber Optic cable Outdoor Singlemode fiber optical cable Ftth Optical Fiber Cables Wire
Description
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel
tape. The cable is completed with a polyethylene (PE) sheath.
Product features:
1. Small outer diameter, light weight and convenient construction
2. Stable fiber excess length control
3. After the cable is formed, the additional attenuation of the fiber is almost zero, and the dispersion value does not change
4. Excellent environmental performance

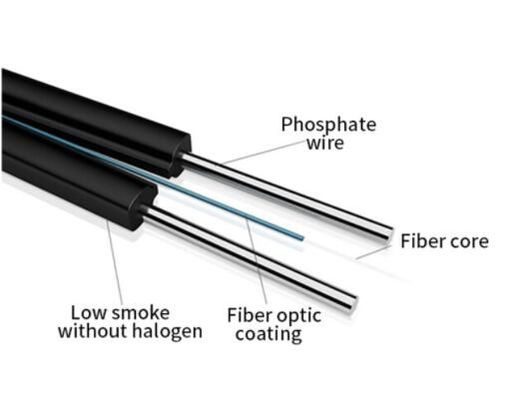

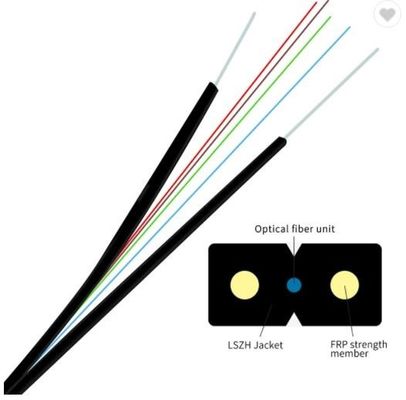

Structural feature:
1. Central loose tube protects once coated optical fiber
2. The optical fiber is concentrated in the center of the cable, and the reinforcements are distributed on both sides of the cable
sheath
3. A water blocking layer is provided between the steel belt and the cable core
4. Double-sided plastic-coated corrugated steel tape-polyethylene bonded outer sheath
5. Double steel wire parallel reinforcement
Cable parameters
No. of cable
|
4
|
8
|
12
|
24
|
48
|
72
|
144
|
|
Fiber Model
|
G.652D
|
|||||||
Design(Strength Member + Tube &Filler)
|
1+5
|
1+6
|
1+12
|
|||||
Central Strength
Member |
Material
|
FRP
|
||||||
Diameter(±0.05)mm
|
1.5
|
2.0
|
||||||
Loose Tube
|
Material
|
PBT
|
Item
|
Parameters
|
|
Fiber
|
Type
|
G652D
|
Count
|
2-24 Cores
|
|
Loose tube
|
Material
|
PBT
|
Color
|
All colors display
|
|
Central Strength Member
|
Material
|
2 parallel steel wire
|
Armoured
|
Matrial
|
Plastic coated Steel tape
|
Outer jacket
|
Material
|
HDPE
|
Min.bending radius
|
Static
|
10 times cable diameter
|
Dynamic
|
20 times cable diameter
|
|
Repeating bending
|
Load:150N; number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage
|
|
Crush
|
Short term
|
1000N/100mm
|
Torsion
|
Load:150N; number of cycles:10; twist angle:±180° No obvious
addition attenuation, no fiber break and no cable damage |
|
Impact
|
Impact energy : 450g × 1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. |
