Product Details:
|
Type: | Optical Fiber Cable | No.of Fiber: | 24 |
---|---|---|---|
Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
Product Name: | GYXTW 12 Core Fiber Optic Cable Outdoor Singlemode Fiber Optical Cable | Wavelength: | 1310/1550nm |
High Light: | Singlemode GYXTW Fiber Optic Cable,Outdoor GYXTW Fiber Optic Cable,GYXTW Singlemode Fiber Cable |

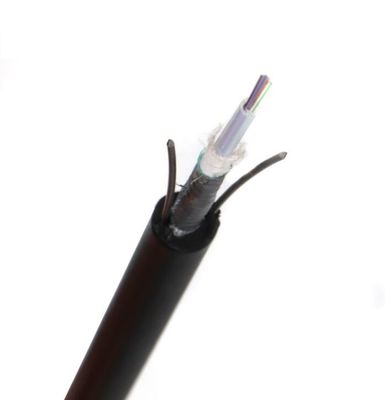

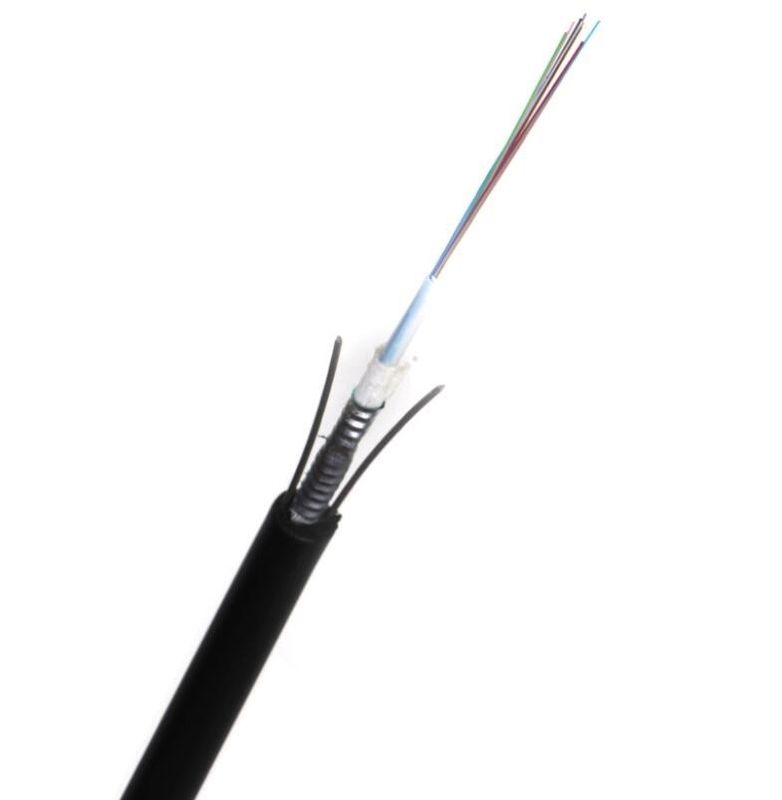

GYXTW 12 core Fiber Optic cable Outdoor Singlemode fiber optical cable

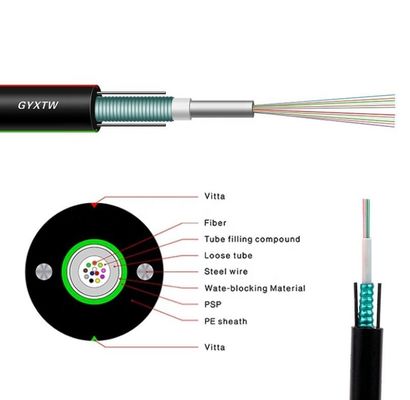

Description
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel
tape. The cable is completed with a polyethylene (PE) sheath.
Product features:
1. Small outer diameter, light weight and convenient construction
2. Stable fiber excess length control
3. After the cable is formed, the additional attenuation of the fiber is almost zero, and the dispersion value does not change
4. Excellent environmental performance

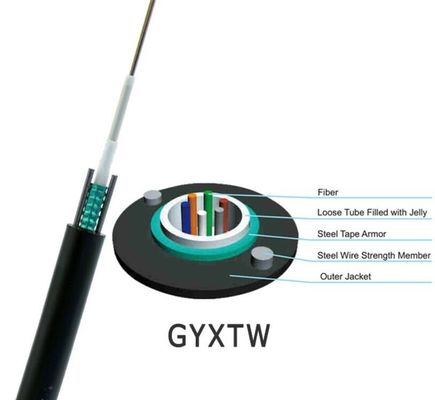

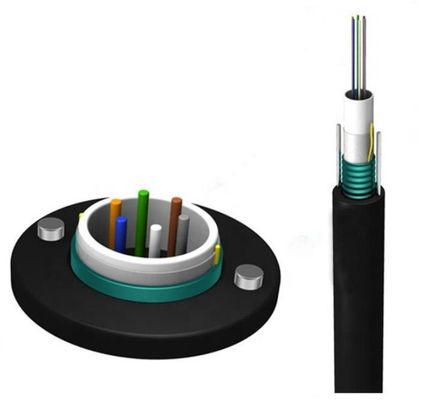

Structural feature:
1. Central loose tube protects once coated optical fiber
2. The optical fiber is concentrated in the center of the cable, and the reinforcements are distributed on both sides of the cable
sheath
3. A water blocking layer is provided between the steel belt and the cable core
4. Double-sided plastic-coated corrugated steel tape-polyethylene bonded outer sheath
5. Double steel wire parallel reinforcement
Cable parameters
No. of cable | 4 | 8 | 12 | 24 | 48 | 72 | 144 | |
Fiber Model | G.652D | |||||||
Design(Strength Member + Tube &Filler) | 1+5 | 1+6 | 1+12 | |||||
Central Strength Member | Material | FRP | ||||||
Diameter(±0.05)mm | 1.5 | 2.0 | ||||||
Loose Tube | Material | PBT |
Diameter(±0.06)mm | 1.72 | 2.0 | |||||
Thickness(±0.03)mm | 0.30 | 0.32 | |||||
The Max. Core NO./Tube | 4 | 6 | 12 | ||||
Filler Rope | Material | LDPE | |||||
Color | White | ||||||
Diameter(±0.06)mm | 1.7 | 2.0 | |||||
Water Blocking layer(Material) | Flooding Compound | ||||||
Outer Sheath | Material | MDPE | |||||
Thickness(±0.2)mm | 1.8 | ||||||
Cable Diameter | 8.3 | 8.9 | 9.4 | 13.2 | |||
Cable Weight | 55 | 65 | 75 | 160 | |||
Min. bending radius | Without Tension | 10.0×Cable -φ | |||||
Under Maximum Tension | 20.0×Cable -φ | ||||||
Temperature range (℃) | Installation | -20~+60 | |||||
Transport & Storage | -40~+70 | ||||||
Operation | -40~+70 |
