Product Details:
|
| Type: | Optical Fiber Cable | No.of Fiber: | 24 |
|---|---|---|---|
| Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
| Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
| Product Name: | Outdoor Single Mode Fiber Optic Cable 24 Core ADSS OFC Fiber Optic Cable | Wavelength: | 1310/1550nm |
| High Light: | ADSS OFC Fiber Optic Cable,Single Mode OFC Fiber Optic Cable,24 Core ADSS Fiber Optic Cable |
||

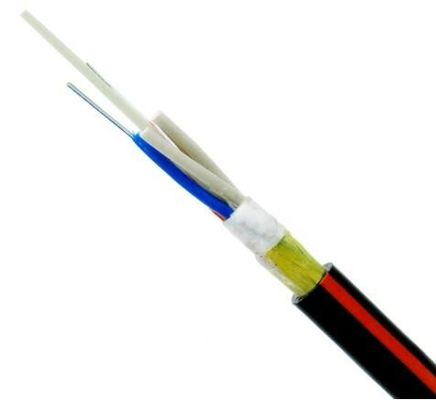

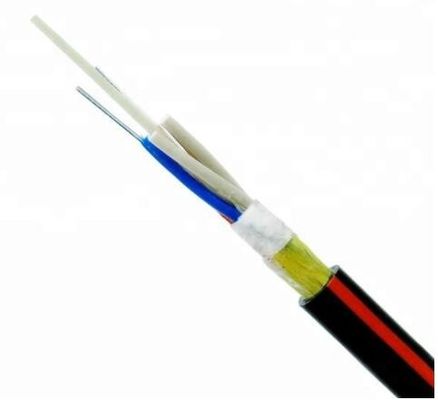

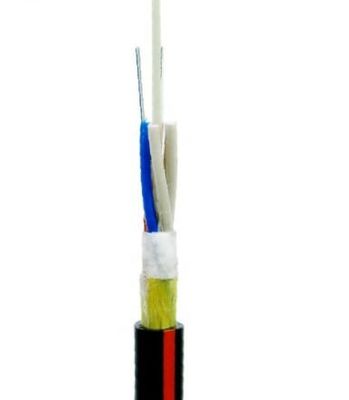

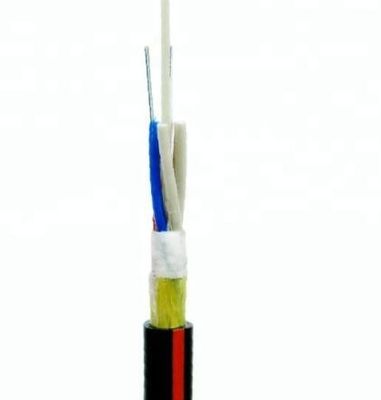

Outdoor Single Mode Fiber Optic Cable 24 Core ADSS OFC Fiber Optic Cable
Description

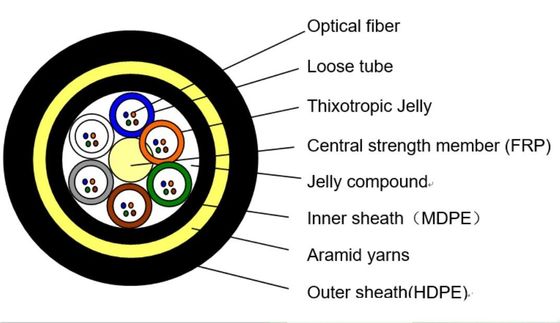

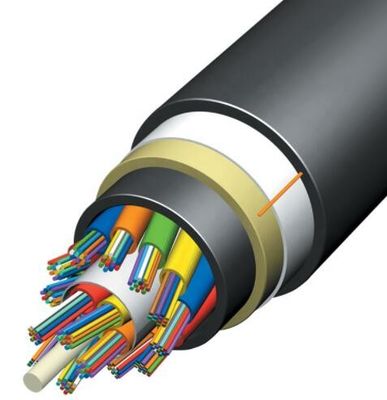

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP
(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member,
the cable is completed with PE or AT (anti-tracking) outer sheath.
Applications
Remote base station communication such as RRU or BBU.
Smart substation and CATV Outdoor application.
Emergency access to optical fiber communication.
Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable.
Features
Good mechanical and temperature characteristics.
Good lateral compression and flexibility.
Small diameter, light weight, easy to connect, and support large capacity data transmission.
Mini armored layer used to decrease the outer diameter and cable weight, also convenient for laying and splice.
Outer jacket material has the advantages of water proof, flame retardant, environmental protection.
Cable parameters
|
No. of cable
|
4
|
8
|
12
|
24
|
48
|
72
|
144
|
|
|
Fiber Model
|
G.652D
|
|||||||
|
Design(Strength Member + Tube &Filler)
|
1+5
|
1+6
|
1+12
|
|||||
|
Central Strength
Member |
Material
|
FRP
|
||||||
|
Diameter(±0.05)mm
|
1.5
|
2.0
|
||||||
|
Loose Tube
|
Material
|
PBT
|
||||||
|
|
Diameter(±0.06)mm
|
1.72
|
2.0
|
||||
|
Thickness(±0.03)mm
|
0.30
|
0.32
|
|||||
|
The Max. Core NO./Tube
|
4
|
6
|
12
|
||||
|
Filler Rope |
Material
|
LDPE
|
|||||
|
Color
|
White
|
||||||
|
Diameter(±0.06)mm
|
1.7
|
2.0
|
|||||
|
Water Blocking layer(Material)
|
Flooding Compound
|
||||||
|
Outer
Sheath |
Material
|
MDPE
|
|||||
|
Thickness(±0.2)mm
|
1.8
|
||||||
|
Cable Diameter
|
8.3
|
8.9
|
9.4
|
13.2
|
|||
|
Cable Weight
|
55
|
65
|
75
|
160
|
|||
|
Min. bending radius |
Without Tension
|
10.0×Cable -φ
|
|||||
|
Under Maximum Tension
|
20.0×Cable -φ
|
||||||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|||||
|
Transport & Storage
|
-40~+70
|
||||||
|
Operation
|
-40~+70
|
||||||
