Product Details:
|
| Type: | Optical Fiber Cable | No.of Fiber: | 24 |
|---|---|---|---|
| Use: | FTTx Solutions | Single-mode Fiber: | G652D,G657A1,G657A2 |
| Application: | FTTH, FTTx | Operate Temperature: | -40℃- +70℃ |
| Product Name: | 1.25G/2.5G GPON ONU SFP Stick TX1310/RX1550 | Wavelength: | 1310/1550nm |
| Fiber Type: | Singlemode 9/125 | ||
| High Light: | 3.5mm Fiber Optic Cable Patch Cord,G657A1 Fiber Optic Cable Patch Cord,G657A1 SC APC Patch Cord |
||

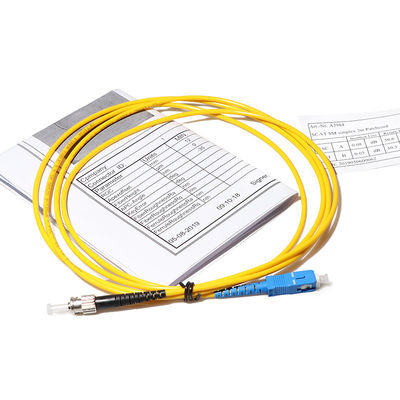

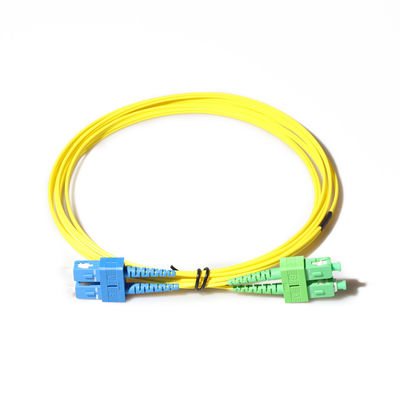

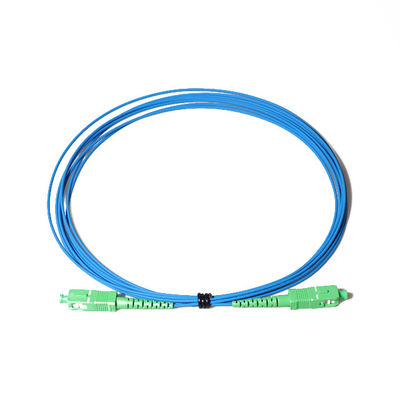

FOC Ivory White 3.5mm 3.0mm 2.4mm G657A1 Sc/Apc Fiber Optic Patchcord
Description
GJYWFJH Indoor/Outdoor Cable used as the optical transmission medium with 0.9mm subcable, a layer of
aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with
outside jacket. Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.
|
Mode
|
Single mode
|
Multimode
|
|
|
Polish
|
UPC
|
APC
|
PC
|
|
Insertion Loss
|
≤0.30dB
|
≤0.20dB
|
≤0.20dB
|
|
Return Loss
|
≥50dB
|
≥60dB
|
≥30dB
|
|
Test Wavelength
|
1310/1550nm
|
850/1310nm
|
|
|
Durability(500 Matings)
|
≤0.2dB
|
||
|
Operating Temperature
|
-40℃~+60℃
|
||
|
Storage Temperature
|
-45℃~+85℃
|
||
|
Fire Resistant
|
IEC 60794-2-30
|
||
|
Standards-Compliant
|
ROHS,IEC and GR-326
|
||
|
Fiber type
|
Single mode:
|
(1)9/125-G652D
|
(2)9/125-G655
|
(3)9/125-G657A,G657A2
|
(4)9/125-G657B3
|
|
|
Multimode:
|
(5)50/125-OM2
|
(6)62.5/125-OM1
|
(7)50/125-OM3
|
(8)50/125-OM4
|
(9)50/125-OM5
|
|
|
Fiber Brand
|
YOFC, Corning, Sumitomo, Fujikura
|
|||||
|
Connector
|
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
|
|||||
|
Cord type
|
Simplex ,Duplex
|
|||||
|
Cable diameter
|
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
|
|||||
|
Cable jacket
|
PVC, OFNR, LSZH, OFNP
|
|||||
|
length(M)
|
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
|
|||||
