Product Details:
|
| Type: | Optical Fiber Cable | No.of Fiber: | 2 |
|---|---|---|---|
| Multi-mode Fiber: | OM1,OM2,OM3,OM4 | Connectors: | SC,LC,FC,ST |
| Capacity: | 12 Or 24 Cores | Insertion Loss: | <0.25db |
| Application: | FTTH, FTTx | Jacket Material: | LSZH, PVC, OFNR, OFNP |
| Return Loss: | >50db | Cable Diameter: | 1.2mm,1.6mm,2.0mm,3.0mm |
| Jacket Color: | Yellow | ||
| High Light: | OM4 LC Fiber Optic Patch Cord,LC Fiber Optic Patch Cord,Duplex Multimode OM4 Patch Cord |
||

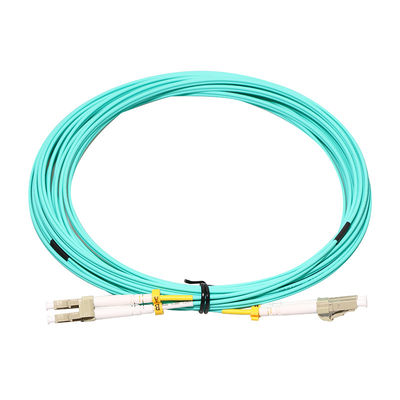

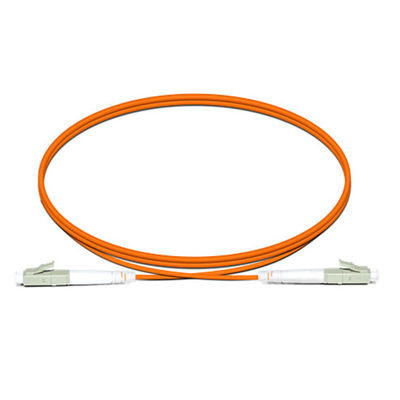

FOC LC Duplex Multimode OM4 2 Meters 50/125 LC Fiber Optic Patchcord
Description:

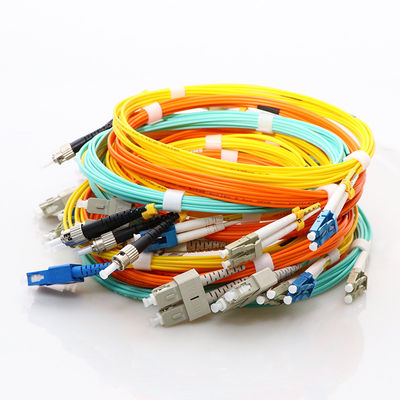

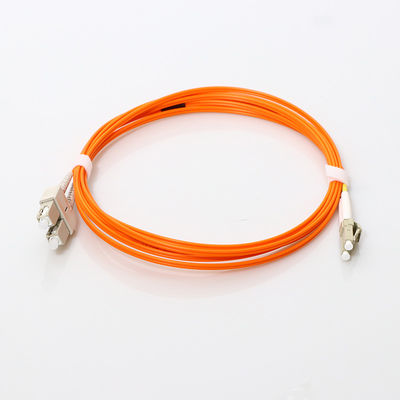

Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
|
Mode
|
Single mode
|
Multimode
|
|
|
Polish
|
UPC
|
APC
|
PC
|
|
Insertion Loss
|
≤0.30dB
|
≤0.20dB
|
≤0.20dB
|
|
Return Loss
|
≥50dB
|
≥60dB
|
≥30dB
|
|
Test Wavelength
|
1310/1550nm
|
850/1310nm
|
|
|
Durability(500 Matings)
|
≤0.2dB
|
||
|
Operating Temperature
|
-40℃~+60℃
|
||
|
Storage Temperature
|
-45℃~+85℃
|
||
|
Fire Resistant
|
IEC 60794-2-30
|
||
|
Standards-Compliant
|
ROHS,IEC and GR-326
|
||
|
Fiber type
|
Single mode:
|
(1)9/125-G652D
|
(2)9/125-G655
|
(3)9/125-G657A,G657A2
|
(4)9/125-G657B3
|
|
|
Multimode:
|
(5)50/125-OM2
|
(6)62.5/125-OM1
|
(7)50/125-OM3
|
(8)50/125-OM4
|
(9)50/125-OM5
|
|
|
Fiber Brand
|
YOFC, Corning, Sumitomo, Fujikura
|
|||||
|
Connector
|
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
|
|||||
|
Cord type
|
Simplex ,Duplex
|
|||||
|
Cable diameter
|
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
|
|||||
|
Cable jacket
|
PVC, OFNR, LSZH, OFNP
|
|||||
|
length(M)
|
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
|
|||||
