Product Details:
|
| Type: | Optical Fiber | No.of Fiber: | 8/12/24 |
|---|---|---|---|
| Use: | FTTx Solutions | Multi-mode Fiber: | OM2/OM3/OM4 |
| Connectors: | MPO | Capacity: | 12 Or 24 Cores |
| Insertion Loss: | <0.5dB | Application: | FTTH, FTTx |
| Jacket Material: | LSZH, PVC, OFNR, OFNP | ||
| High Light: | 12 Fiber MTP MPO Fiber Patch Cable,125 MTP MPO Fiber Patch Cable,9/125 OS2 Patch Cable |
||

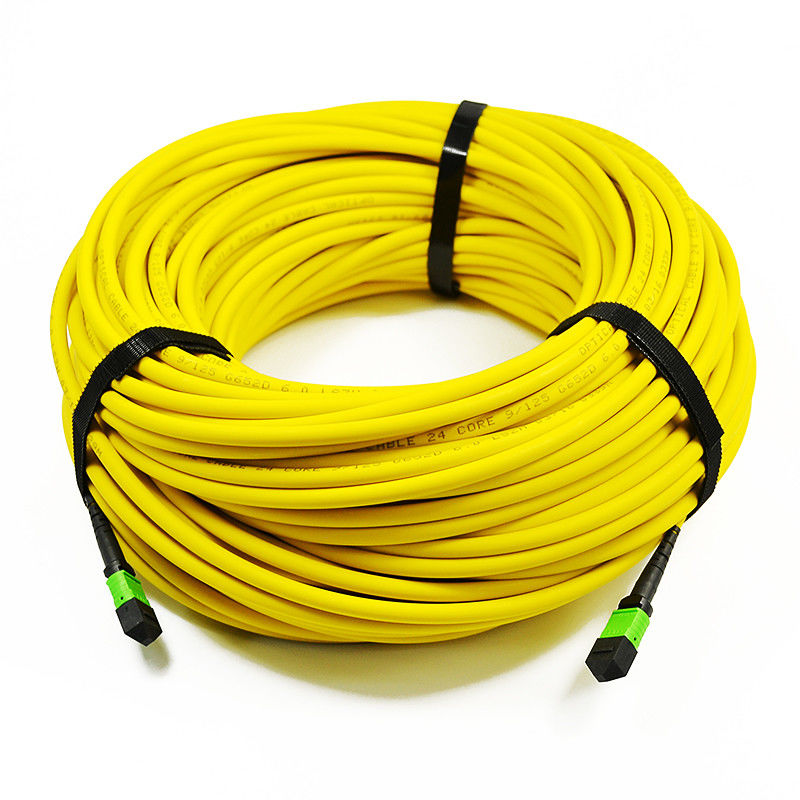

FOC 9/125 OS2 Singlemode MTP/MPO Fiber Patch Cable - 12 Fiber
Description:

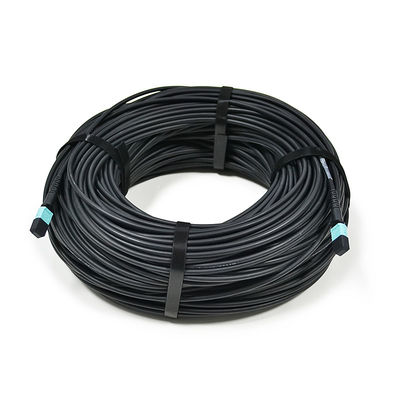

①MPO/MTP Trunk Cable

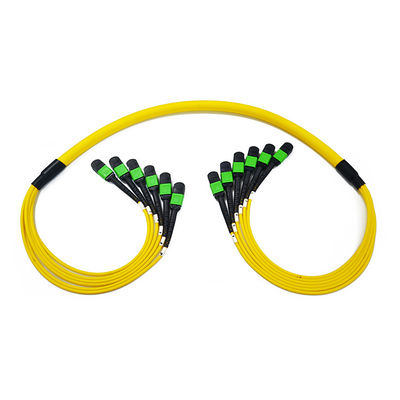

②MPO/MTP Harnesses Cables
③MPO/MTP Fan out 0.9mm Patch Cords
④IP-Series MPO/MTP Assembly
⑤High Density Patch Cords
⑥MPO/MTP Loopback
⑦MT Patch Cords
⑧MPO/MTP Cassettes
⑨MPO/MTP Fiber Optic Patch Panel
9/125 OS2 Singlemode MTP/MPO Fiber Patch Cable - 12 Fiber assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
|
Performance Level
|
Standard
|
Elite
|
||||
|
Connector
|
Mode
|
Endface
|
IL(max) (dB)
|
RL(min) (dB)
|
IL(max) (dB)
|
RL(min) (dB)
|
|
MPO/MTP
|
SM
|
12F/APC
|
≤0.70
|
≥60
|
≤0.35
|
≥60
|
|
24F/APC
|
≤0.75
|
≥60
|
≤0.35
|
≥60
|
||
|
48F/APC
|
≤0.75
|
≥60
|
|
|
||
|
MM
|
12F/PC
|
≤0.50
|
≥20
|
≤0.35
|
≥20
|
|
|
24F/PC
|
≤0.50
|
≥20
|
≤0.35
|
≥20
|
||
|
48F/PC
|
≤0.50
|
≥20
|
|
|
||
|
LC/SC/FC/ST
|
SM
|
|
≤0.30
|
≥60
|
≤0.10
|
≥60
|
|
UPC
|
≤0.20
|
≥50
|
≤0.10
|
≥50
|
||
|
MM
|
PC
|
≤0.20
|
≥30
|
≤0.10
|
≥30
|
|
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
Mechanical Properties
|
|||
|
Item
|
Criteria
|
Conformance
|
|
|
△IL After 50 Matings
|
MPO/MTP
|
≤0.3dB
|
GR-1435
|
|
△IL After 500 Matings
|
LC/SC/FC/ST
|
≤0.2dB
|
IEC 61300-2-2
|
|
Min Bend Radius (Dynamic)
|
20*OD (Cable Diameter)
|
||
|
Min Bend Radius (Static )
|
15*OD (Cable Diameter)
|
||
|
Environment Conditions
|
|||
|
Item
|
Criteria
|
Conformance
|
|
|
Operation Temperature
|
-40~60°C
|
IEC 61753-1
|
|
|
Storage Temperature
|
-45~85°C
|
||
