Product Details:
|
| Type: | Optical Fiber | No.of Fiber: | 24 |
|---|---|---|---|
| Use: | FTTx Solutions | Fiber Type: | OM3 OM4 MPO MTP To LC Breakout Cable |
| Connectors: | MTP,MPO , MTP (Elite),MPO (Elite) | Capacity: | 12 Or 24 Cores |
| Material: | Cold- Roll Steel | Application: | FTTH, FTTx |
| Operate Temperature: | -40℃~85℃ | ||
| High Light: | OM3 Fiber Optic Cassette Module,12 Fiber Optic Cassette Module,OM3 MPO Cassette Module |
||

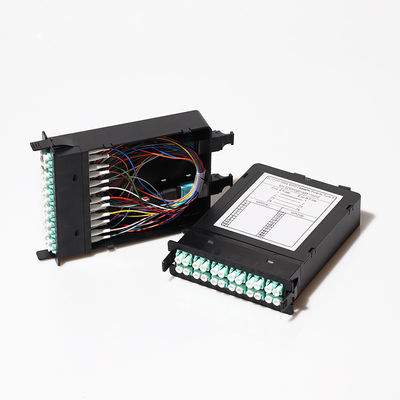

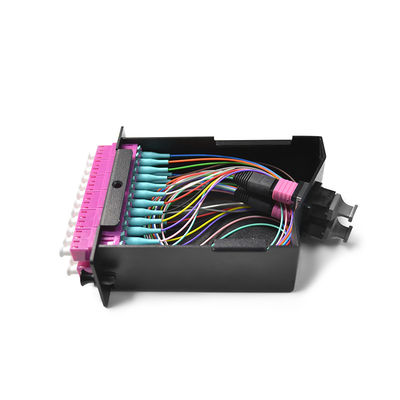

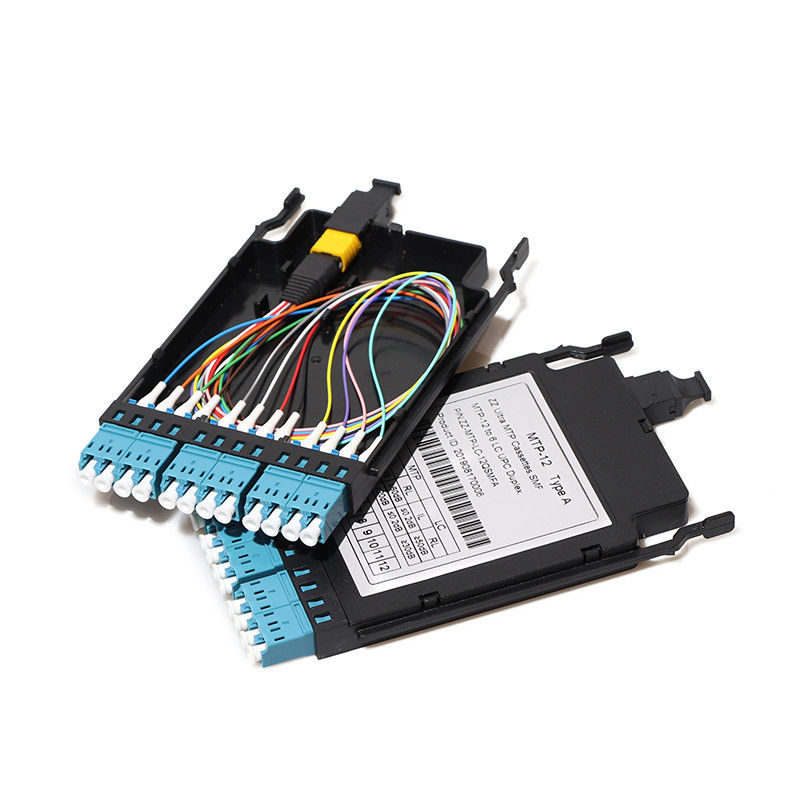

FOC OM3 12 Fiber Optic MTP/MPO LC Cassette Module
Description:
①MPO/MTP Trunk Cable
②MPO/MTP Harnesses Cables
③MPO/MTP Fan out 0.9mm Patch Cords
④IP-Series MPO/MTP Assembly
⑤High Density Patch Cords
⑥MPO/MTP Loopback
⑦MT Patch Cords
⑧MPO/MTP Cassettes

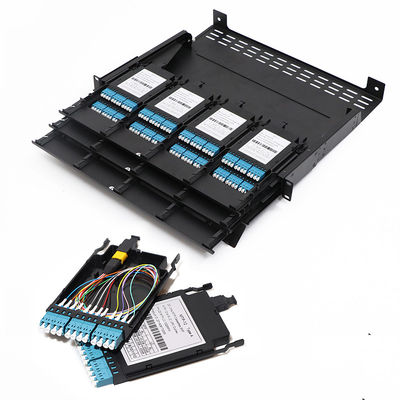

⑨MPO/MTP Fiber Optic Patch Panel
MPO/MTP cassette capable of accepting 6-24 fibers. These cassettes are suitable for use with Singlemode, Multimode 62.5 and 50um, as well as Laser Optimized, OM3 applications and are available in LC, SC, ST, FC, MTRJ connector types. MPO/MTP cassette comes pre-installed with the required adapters featuring Zirconia Ceramic sleeves for enhanced compatibility with all applications. Adapters are color-coded according to the application in use (Blue = 9/125; Beige = 62.5 and 50um; Aqua = OM3; Green = APC). All adapters come standard with dust covers.
