| Connector Type: | LC/SC/ST/FC/MU/MTRJ, Etc | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| Name: | 1*8 Optical Splitter SCUPC APC Fiber PLC Splitter Box With Insert Type | ||
| High Light: | 1*8 Fiber Optic PLC Splitter,1*8 Fiber Splitter Box,SCUPC APC Fiber Optic PLC Splitter |
||

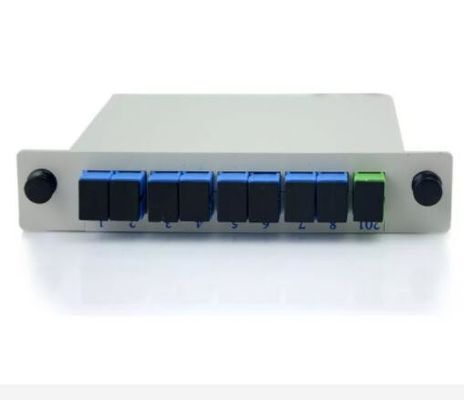

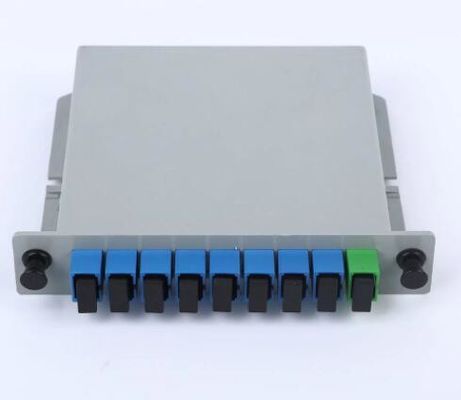

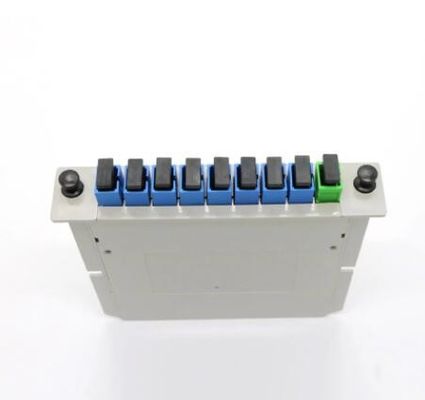

1*8 Optical Splitter SCUPC APC Fiber PLC Splitter Box With Insert Type
Description of 1*8 Optical Splitter SCUPC APC Fiber PLC Splitter Box With Insert Type
Planar optical waveguide Splitter (PLC Splitter) is a planar optical waveguide integrated optical device based on planar optical waveguide.:
It can realize the predetermined distribution of light power within the wavelength range of 1260nm ~ 1650nm,
which covers the wavelength range of 1310nm, 1490nm and 1550nm used by EPON technology.
The insert splitter can be directly installed in the built-in boxes, such as splitter box, fiber optic cable transfer box, ODF frame, etc., which can be used with the guide fiber device.
| The low loss |
| The dispersion of light is even and consistency |
| Low polarization dependent loss |
| Good reliability and stability |
| Good uniformity and compact |
Technical data of 1*8 Optical Splitter SCUPC APC Fiber PLC Splitter Box With Insert Type
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Operating Wavelength(mm) | 1260~1650 | ||||||
|
Insertion loss (dB)
|
Typical | 3.6 | 6.8 | 10.0 | 13.1 | 16.2 | 20 |
| Max(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.6/13.7 | 16.5/16.8 | 20.5/21.0 | |
|
Uniformity (dB)
|
Typical | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 |
| Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
|
PDL (dB)
|
Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Reture Loss (dB) | Min | 55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Fiber Length (m) | 1 (+/-0.05) or customer specified | ||||||
| Fiber Type | ITU-T G657A1 or customer specified | ||||||
|
WDL (dB)
|
Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
|
TDL (dB) (-40~85℃)
|
Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
|
Product Size (mm)
|
Bare Splitter | 40x4x4 | 50x7x4 | 60x12x4 | |||
| Mini Module | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | |||
| Cassette Type | 100x80x10 | 120x80x18 | |||||
