Armoured Fiber Optic Patch Cord Jumper Wire FOC Fiber Optic Cable

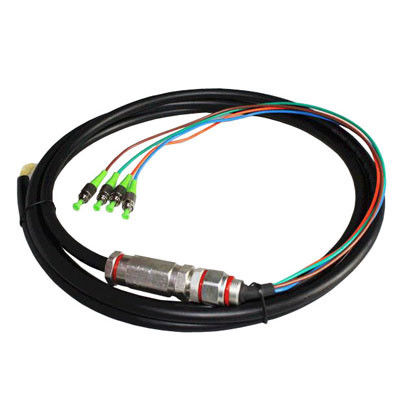

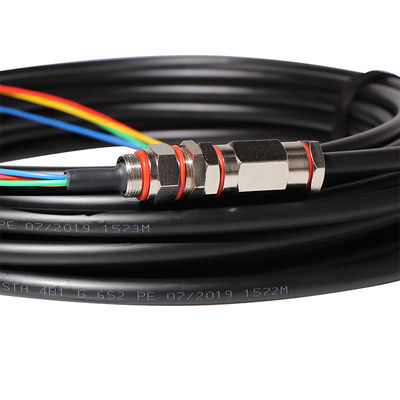

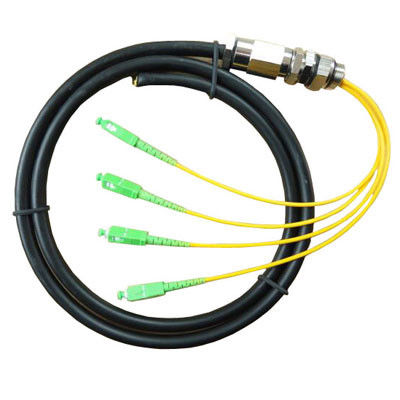

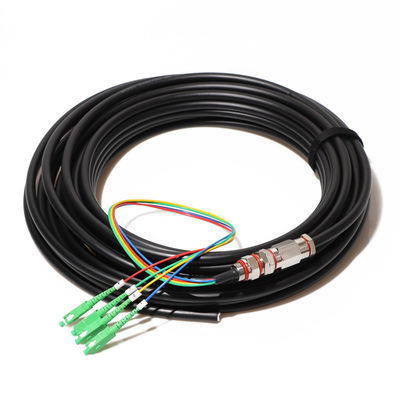

Waterproof fiber optic pigtail is made up with high quality connector, high quality waterproof fiber optic cable and qualified waterproof copper joint assembly. It features high environmental suitability, easy installation, a long lifetime, high tensile strength and sound grounding. Due to great water resistance, the fiber pigtail can also work normally even in many harsh conditions. The waterproof optical fiber pigtail can be equipped with different connectors such as FC,SC,LC,ST,MU,MTRJ,SMA...according to customers' specific requirements. Waterproof fiber optic pigtail is a fiber optic component that has a durable and waterproof fiber optic connector installed on one end and a length of exposed fiber at the other end. Fiber optic pigtails are used to connect the major optical cable lines and the optical receivers in optical fiber communication systems.

Fiber type	Single mode:	(1)9/125-G652D	(2)9/125-G655	(3)9/125-G657A,G657A2	(4)9/125-G657B3
	Multimode:	(5)50/125-OM2	(6)62.5/125-OM1	(7)50/125-OM3	(8)50/125-OM4	(9)50/125-OM5
Fiber Brand	YOFC, Corning, Sumitomo, Fujikura
Connector	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket	PVC, OFNR, LSZH, OFNP
length(M)	0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
