Product Details:
|
| Type: | Optical Fiber | No.of Fiber: | 4 |
|---|---|---|---|
| Use: | FTTx | Fiber Type: | SM (OS2) Or MM (OM1,OM2,OM3,OM4) |
| Connectors: | SC LC ST FC Or Others | Cable Diameter: | 4.8mm , 7.0m, 8.2mm |
| Insertion Loss: | 0.25dB | Material: | LSZH, PVC,PE |
| Application: | FTTH, FTTx | ||
| High Light: | FOC Fiber Optic Cable Pigtail,Waterproof Fiber Optic Cable Pigtail,4 Core Optical Fiber Pigtail |
||

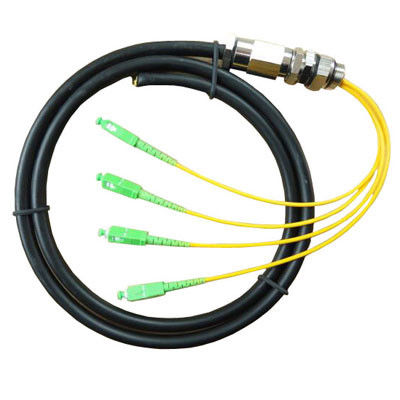

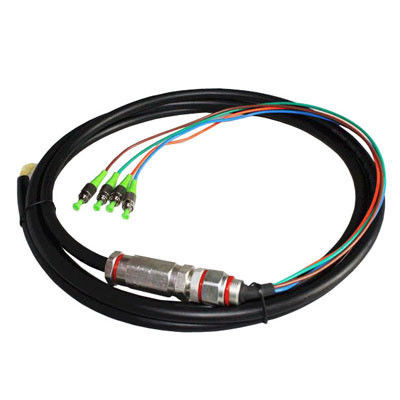

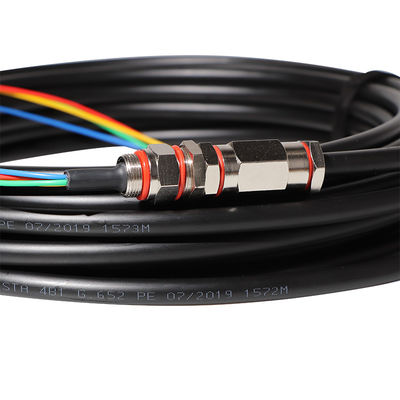

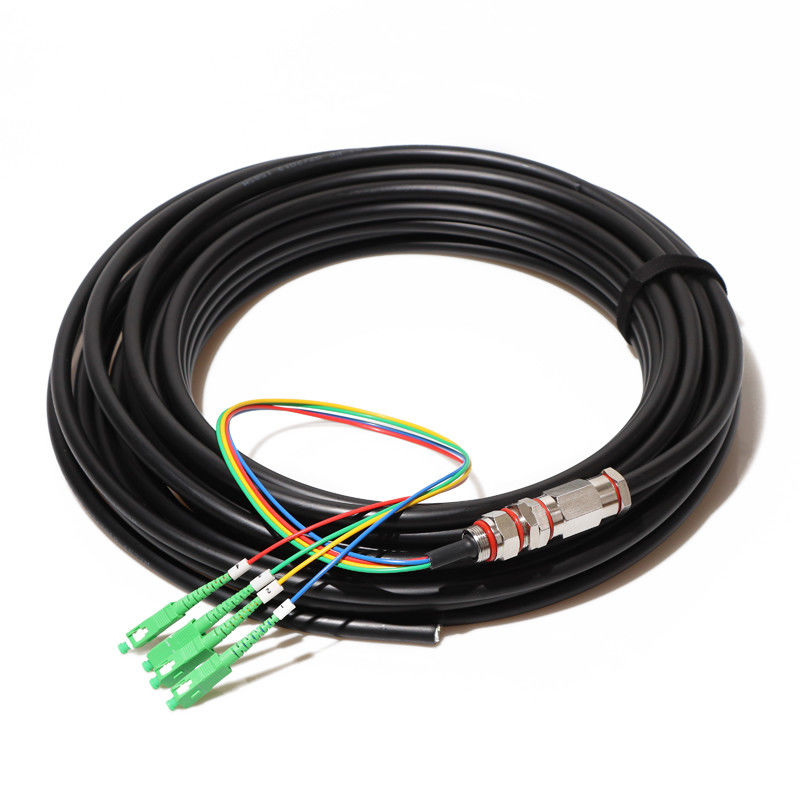

FOC Pre-terminated Waterproof Pigtail Cable 4 Core Waterproof Fiber Pigtail
DESCRIPTION
We supply waterproof pigtail cables with includes 4c, 6c,8c, 12c; single mode, multi-mode, ST, SC, LC, DIN, MTRJ/D4/MU/E2000, Polishing end: PC, UPC, APC. Waterproof pigtail cables are designed for simplifying the installation and maintenance of optical network products such as optic nodes and optic amplifiers.
Connected with trunk cables on one end, equipment port on the other end.
Connected with transfer modules on one end, equipment port on the other end.
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
|
Performance Level
|
Standard
|
Elite
|
||||
|
Connector
|
Mode
|
Endface
|
IL(max) (dB)
|
RL(min) (dB)
|
IL(max) (dB)
|
RL(min) (dB)
|
|
LC/SC/FC/ST
|
SM
|
APC
|
≤0.30
|
≥60
|
≤0.20
|
≥65
|
|
UPC
|
≤0.20
|
≥50
|
≤0.10
|
≥50
|
||
|
MM
|
PC
|
≤0.20
|
≥30
|
≤0.10
|
≥30 |
|
|
Mechanical Properties
|
|||
|
Item
|
Criteria
|
Conformance
|
|
|
△IL After 50 Matings
|
MPO/MTP
|
≤0.3dB
|
GR-1435
|
|
△IL After 500 Matings
|
LC/SC/FC/ST
|
≤0.2dB
|
IEC 61300-2-2
|
|
Min Bend Radius (Dynamic)
|
20*OD (Cable Diameter)
|
||
|
Min Bend Radius (Static )
|
15*OD (Cable Diameter)
|
||
|
Environment Conditions
|
|||
|
Item
|
Criteria
|
Conformance
|
|
|
Operation Temperature
|
-40~60°C
|
IEC 61753-1
|
|
|
Storage Temperature
|
-45~85°C
|
||
