Product Details:
|
| Connector Type: | LC/SC/ST/FC/MU/MTRJ, Etc | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| Name: | 1*8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable And Plug-in Type SC APC PC UPC Connector | ||
| High Light: | UPC Fiber Optic PLC Splitter,PC Fiber Optic PLC Splitter,ABS Coupler 1*8 PLC Splitter |
||

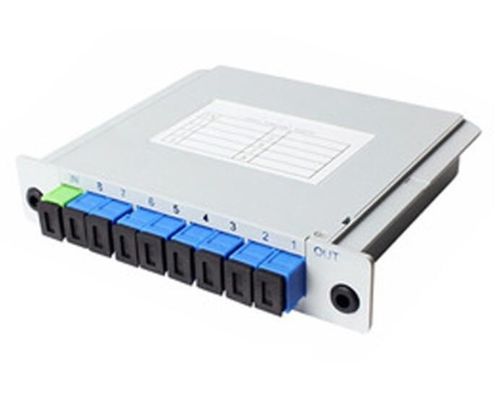

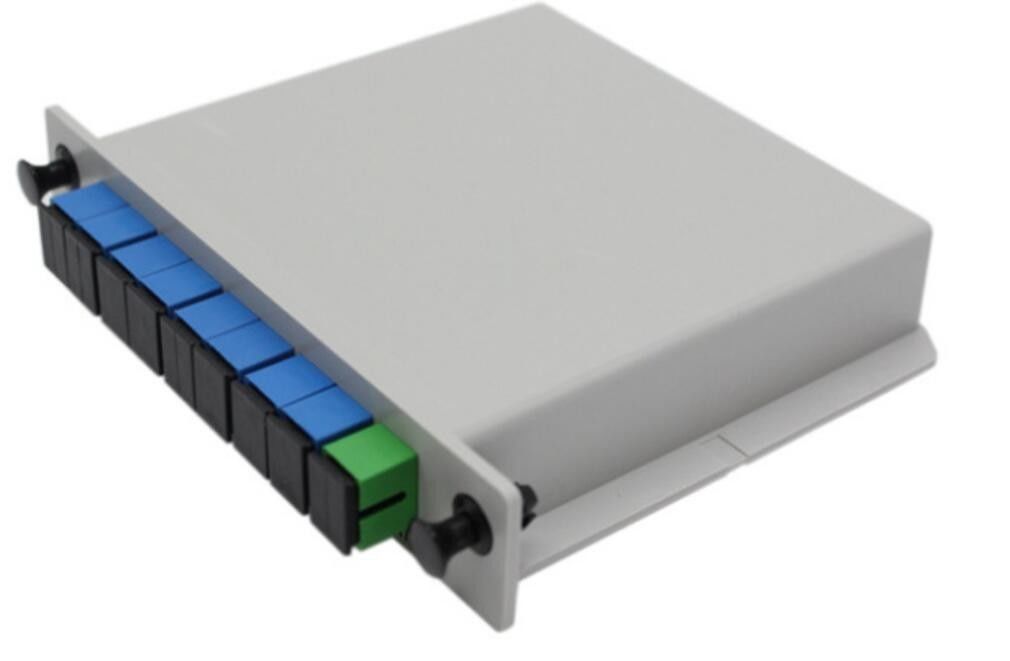

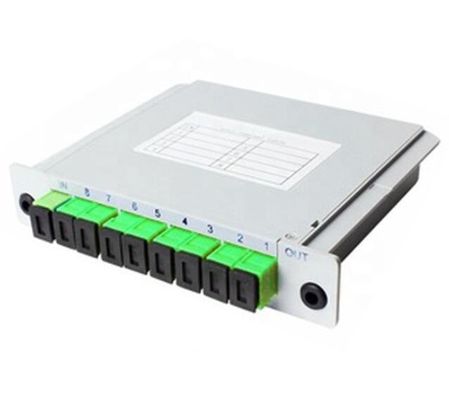

1*8 ABS coupler fiber optic plc splitter 2.0mm cable and Plug-in type SC APC PC UPC connector
Description of 1*8 ABS coupler fiber optic plc splitter 2.0mm cable and Plug-in type SC APC PC UPC connector
Planar optical waveguide Splitter (PLC Splitter) is a planar optical waveguide integrated optical device based on planar optical waveguide.:
It can realize the predetermined distribution of light power within the wavelength range of 1260nm ~ 1650nm,
which covers the wavelength range of 1310nm, 1490nm and 1550nm used by EPON technology.
The insert splitter can be directly installed in the built-in boxes, such as splitter box, fiber optic cable transfer box, ODF frame, etc., which can be used with the guide fiber device.
Features
1. 1x8 plc splitter have wide operating wavelength range.
2. Optical splitters have excellent light splitting uniformity.
3. Optic splitter have low polarization dependent loss.
4. 1x8 plc splitter are small in size, compact structure, easy for integration.
5. Fiber splitter have higher reliability and better failure mode.
6. Fiber optical splitter have advanced cutting devices, mature mechanical centering techniques, skilled workers and mature products.
7. Optical splitter has good-quality glue and V-groove, highly reliable products.
Technical data of 1*8 ABS coupler fiber optic plc splitter 2.0mm cable and Plug-in type SC APC PC UPC connector
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Operating Wavelength(mm) | 1260~1650 | ||||||
|
Insertion loss (dB)
|
Typical | 3.6 | 6.8 | 10.0 | 13.1 | 16.2 | 20 |
| Max(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.6/13.7 | 16.5/16.8 | 20.5/21.0 | |
|
Uniformity (dB)
|
Typical | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 |
| Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
|
PDL (dB)
|
Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Reture Loss (dB) | Min | 55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Fiber Length (m) | 1 (+/-0.05) or customer specified | ||||||
| Fiber Type | ITU-T G657A1 or customer specified | ||||||
|
WDL (dB)
|
Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
|
TDL (dB) (-40~85℃)
|
Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
|
Product Size (mm)
|
Bare Splitter | 40x4x4 | 50x7x4 | 60x12x4 | |||
| Mini Module | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | |||
| Cassette Type | 100x80x10 | 120x80x18 | |||||
FAQ
1. Are you the real manufacturer?
Yes.We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.
2. Do you accept a small order?
Yes, it is available. We support new projects of our customers and a long-term trustworthy relationship always starts from a small order.
3. What is your delivery time?
It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.
4. What payment methods do you support?
The methods are followed: T/T, L/C, Western Union and PayPal.
5. Do you support sample service?
Of course, all of our products support sample services, samples are divided into paid and free.
