Product Details:
|
| Connector Type: | LC/SC/ST/FC/MU/MTRJ, Etc | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| Name: | FTTH 1x2 1x4 1x8 1x16 Fiber Optic SC/UPC APC Fiber PLC Splitter Box | ||
| High Light: | SC UPC Fiber PLC Splitter Box,APC Fiber PLC Splitter Box,FTTH Fiber Optic Splitter 1x4 |
||

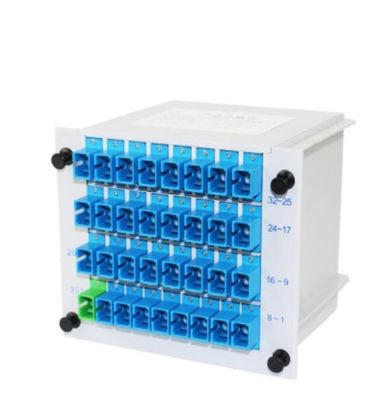

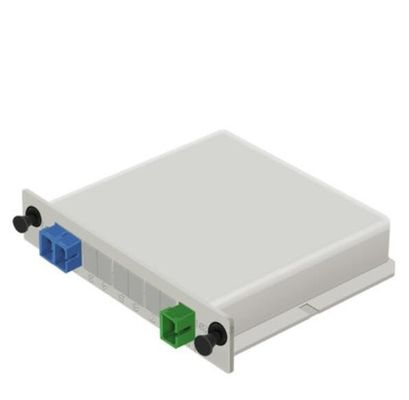

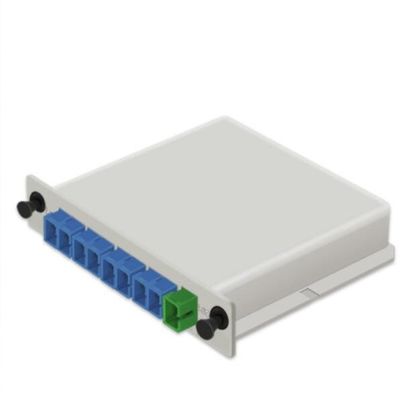

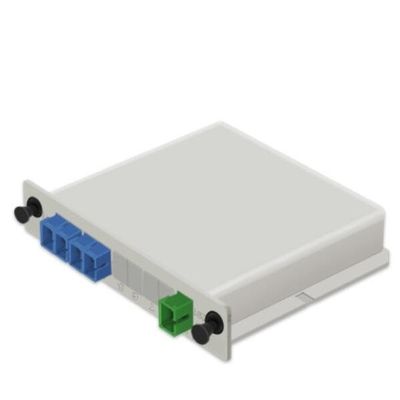

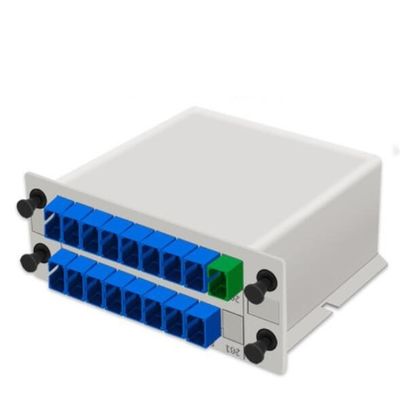

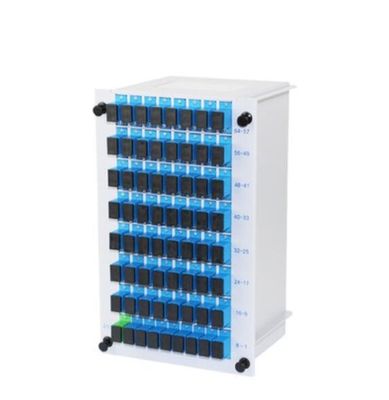

FTTH 1x2 1x4 1x8 1x16 Fiber Optic SC/UPC APC Fiber PLC Splitter Box
Planar optical waveguide Splitter (PLC Splitter) is a planar optical waveguide integrated optical device based on planar optical waveguide.:
It can realize the predetermined distribution of light power within the wavelength range of 1260nm ~ 1650nm,
which covers the wavelength range of 1310nm, 1490nm and 1550nm used by EPON technology.
The insert splitter can be directly installed in the built-in boxes, such as splitter box, fiber optic cable transfer box, ODF frame, etc., which can be used with the guide fiber device.
| The low loss |
| The dispersion of light is even and consistency |
| Low polarization dependent loss |
| Good reliability and stability |
| Good uniformity and compact |
Application
| FTTx Systems |
| LAN,WAN and Metro Networks |
| Analog/Digital Passive Optical Networks |
| CATV Networks |
| Test Equipment |
| Other applications in fiberoptic systems |
| Parameter | Specification | ||||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
| Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
| Insertion Loss (dB) Max. * | <7.3 | <10.5 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
| Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
| Directivity (dB) Min * | 55 | ||||||||
| Return Loss (dB) Min * | 55(50) | ||||||||
| Operating Temperature (°C) | -5~ +75 | ||||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||||
| Fiber length | 1m or custom length | ||||||||
| Fiber Type | Corning SMF-28e fiber | ||||||||
| Connector Type | Custom specified | ||||||||
| Power Handling (mW) | 300 | ||||||||
FAQ
1. Are you the real manufacturer?
Yes.We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.
2. Do you accept a small order?
Yes, it is available. We support new projects of our customers and a long-term trustworthy relationship always starts from a small order.
3. What is your delivery time?
It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.
4. What payment methods do you support?
The methods are followed: T/T, L/C, Western Union and PayPal.
5. Do you support sample service?
Of course, all of our products support sample services, samples are divided into paid and free.
