Product Details:
|
| Model Number: | Conductor Telephone Cable 2 Core Outdoor Drop Wire Copper Wire Cable | Conductor Diameter: | 0.50mm±0.005mm |
|---|---|---|---|
| Jacket: | PVC&LSOH | Pairs: | 2/4/6/8/10/20/50 Or As Per Your Request |
| Operating Temperature: | -20°C To +60°C | Application: | Telecommunications |
| Color: | White , Gray, Black Or Optional | ||
| High Light: | 2 Core Drop Wire Telephone Copper Cable,2 Core Outdoor Conductor Telephone Copper Cable,2 Core Conductor Telephone Copper Cable |
||
Conductor Telephone Cable 2 Core Outdoor Drop Wire copper wire cable
Description of Conductor Telephone Cable 2 Core Outdoor Drop Wire copper wire cable
2core copper inside for outdoor aerial application, drop wire for telecommunications.
Type DW is an insulated conductor composed by two parallel solid copper-clad steel 18/19AWG; wires are segregated by an insulation of either low density polyethylene, medium density polyethylene or PVC 75ºC, in black color.
Features of Conductor Telephone Cable 2 Core Outdoor Drop Wire copper wire cable
1. Conductor: 2-8 cores , 0. 5mm, 0. 6mm, 0. 8mm or 0. 9mm bare/ tinned copper wire
2. PE/PVC insulation
3. PVC/LSOH jacket
4. Shielded or unshielded
5. From 1 pair to 224 pairs
6. Coils or wooden drums packing
Specification of Conductor Telephone Cable 2 Core Outdoor Drop Wire copper wire cable
• Conductor: 0.25sqmm to 4.0sqmm, bare copper ,tinned copper or CCA material
• Jacket: PVC
• Color: transparent, red/black, white and any color
• Nominal Voltage:220V
• Temperature Range: -10°C to + 80°C
| Conductor Diameter | ||
| 0.80 mm | 1.00 mm | |
| Conductor Resistance Ω/km (20 °C) | ||
| Maximum Average | 28,96 | 23,39 |
| Insulation Resistance MΩ/km (500 V DC) | >15000 | >15000 |
| Dielectric Strength | ||
| V (DC, 1 minute) | ||
| Pair - Pair | 5600 | 5600 |
| Pair - Screen | 5600 | 5600 |
Electrical Characteristic of Conductor Telephone Cable 2 Core Outdoor Drop Wire copper wire cable
| Frequency (MHz) | IL-Max (dB/100m) | NEXT Min(dB/100m) | PSNEXT Min(dB/100m) | ELFEXT Min(dB/100m) | RL-Min(dB) |
| 1 | 2.6 | 41 | 41 | 39 | 12 |
| 4 | 5.6 | 32 | 32 | 27 | 12 |
| 10 | 9.7 | 26 | 26 | 19 | 12 |
| 16 | 13.1 | 23 | 23 | 15 | 10 |
Packing of Conductor Telephone Cable 2 Core Outdoor Drop Wire copper wire cable
| Packing detail | 100m/roll, 200m/roll, 300m/roll,500m/roll or as request |
| Inner Package | Wooden reel, plastic reel, and paper reel available |
| Outer Package | Carton box, pull out box, pallet available. |
| Shipping time | After receving the deposit 7-10 days |
| mode of transport |
Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way |
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
The MOQ of Outdoor Telephone Cable is 250m.
3.What’s delivery time?
The general delivery time is 5-30 days after order confirmed. It depends on the order quantity.
4.How to Store the Telephone Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

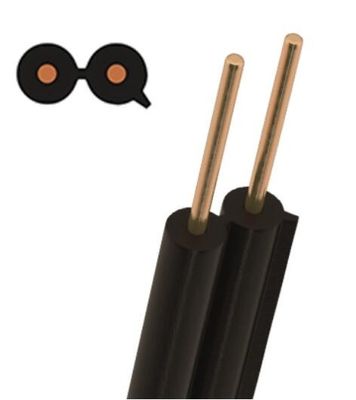

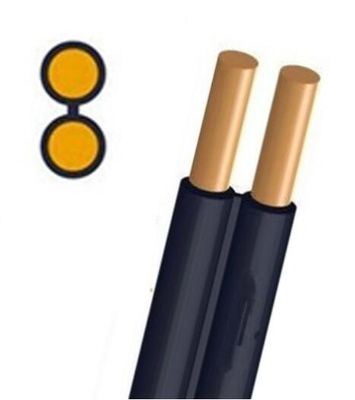

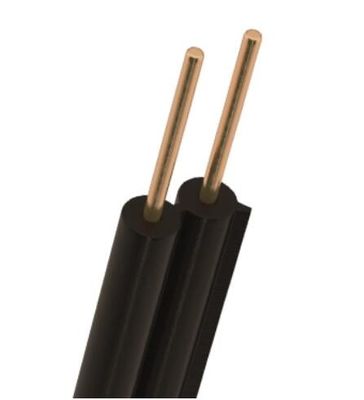

Drawings of Conductor Telephone Cable 2 Core Outdoor Drop Wire copper wire cable
