Product Details:
|
| Model Number: | Drop Wire | Conductor: | Copper Wire Or Tin-plated Copper Wire Standed |
|---|---|---|---|
| Conductor Diameter: | 0.50mm±0.005mm | Jacket: | PVC&LSOH |
| Pairs: | 2/4/6/8/10/20/50 Or As Per Your Request | Operating Temperature: | -20°C To+60°C |
| Application: | Telecommunications | Color: | White , Gray, Black Or Optional |
| High Light: | LSOH Jacket Drop Wire Telephone Cable,0.50mm Drop Wire Telephone Cable,LSOH 0.50mm Telephone Copper Cable |
||

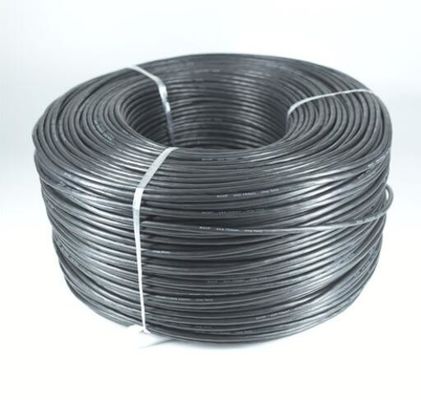

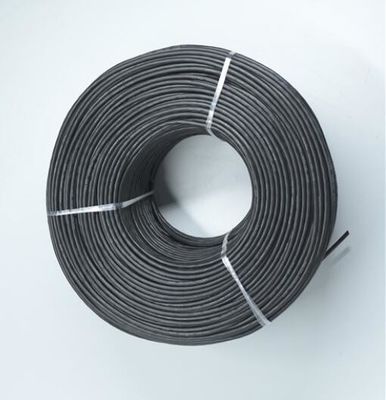

Drop Wire Telephone Cable
Specification
| Item | 5m RJ11 CCS telephone cable |
| Conductor Material | CU,CCA,CCS |
| Conductor Diameter | 0.40mm / 0.45mm / 0.50mm or as request |
| Pair Insulation | PE or PVC |
| Number of Twisted Pair | 2 core cable |

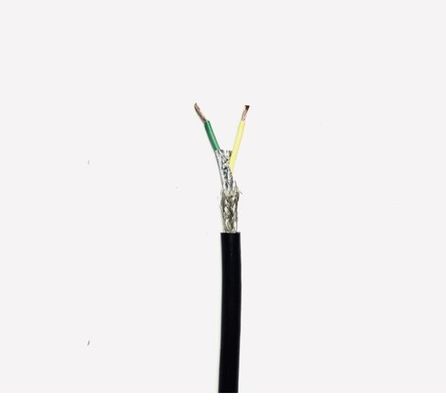

| Shielding | UTP: Unshield |
| STP/FTP : Mylar+AL Foil+Drain | |
| Armoured | |
| Jelly Filled | As your request |
| Rip Cord | Yes |
| Outer Jacket | PVC / PE / LSZH |
| Jacket Color | White,Black, Gray or as request |
| Installation Temperature | 0°C to +60°C |
| Operating temperature | -20°C to +75°C |
| Certificate | CE,ROHS,SGS |
| Application | Telecom wiring system |
Electrical Characteristic
| Frequency (MHz) | IL-Max (dB/100m) | NEXT Min(dB/100m) | PSNEXT Min(dB/100m) | ELFEXT Min(dB/100m) |
RL-Min(dB) |
| 1 | 2.6 | 41 | 41 | 39 | 12 |
| 4 | 5.6 | 32 | 32 | 27 | 12 |
| 10 | 9.7 | 26 | 26 | 19 | 12 |
| 16 | 13.1 | 23 | 23 | 15 | 10 |

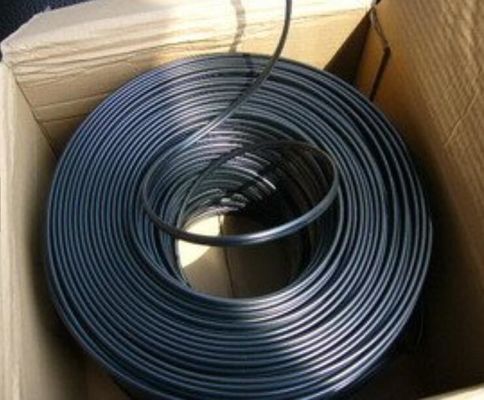

Packing
| Packing detail | 100m/roll, 200m/roll, 300m/roll,500m/roll or as request |
| Inner Package | Wooden reel, plastic reel, and paper reel available |
| Outer Package | Carton box, pull out box, pallet available. |
| Shipping time | After receving the deposit 7-10 days |
| mode of transport | Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way |
