Product Details:
|
| Model Number: | Copper Underground Drop Wire 1 Pair Telephone Cable Copper Wire Cable | Conductor Diameter: | 0.50mm±0.005mm |
|---|---|---|---|
| Jacket: | PVC&LSOH | Pairs: | 2/4/6/8/10/20/50 Or As Per Your Request |
| Operating Temperature: | -20°C To +60°C | Application: | Telecommunications |
| Color: | White , Gray, Black Or Optional | ||
| High Light: | Drop Wire 1 Pair Telephone Copper Cable,Underground 1 Pair Telephone Copper Cable,1 Pair Underground Copper Wire Cable |
||
Copper underground drop wire 1 pair telephone cable copper wire cable
Description of Copper underground drop wire 1 pair telephone cable copper wire cable
Suitable for installation of industrial and domestic utilisation on telecoomunications and information processing systems in French, in dry and moist operating areas of buildings. Its production is according to NFC C 93-529 for SYT1 series and NFC 93-526/527/528 for PTT series.
Features of Copper underground drop wire 1 pair telephone cable copper wire cable
1. Conductor: 2-8 cores , 0. 5mm, 0. 6mm, 0. 8mm or 0. 9mm bare/ tinned copper wire
2. PE/PVC insulation
3. PVC/LSOH jacket
4. Shielded or unshielded
5. From 1 pair to 224 pairs
6. Coils or wooden drums packing
Specification of Copper underground drop wire 1 pair telephone cable copper wire cable
• Conductor: 0.25sqmm to 4.0sqmm, bare copper ,tinned copper or CCA material
• Jacket: PVC
• Color: transparent, red/black, white and any color
• Nominal Voltage:220V
• Temperature Range: -10°C to + 80°C
| Conductor Size | 2*1.02+/-0.02mm (18AWG) |
| Conductor Material | CCS |
| Nuber Of Conductor | 1 pair (2 core ) |
| Flammability Grade: | CMP, CMR, CM, CMG,CMX |
| Jacket Thickness | 2.6-7.6mm |
| Jacket Material | PE |
| Impedance (ohm) | 100+/-15 |
| Insulation Resistance | 10000MΩ.km |
| Operating Temperation | -30 °C - +50 °C |
| Jacket Color | As client’s request. |
Electrical Characteristic of Copper underground drop wire 1 pair telephone cable copper wire cable
| Frequency (MHz) | IL-Max (dB/100m) | NEXT Min(dB/100m) | PSNEXT Min(dB/100m) | ELFEXT Min(dB/100m) | RL-Min(dB) |
| 1 | 2.6 | 41 | 41 | 39 | 12 |
| 4 | 5.6 | 32 | 32 | 27 | 12 |
| 10 | 9.7 | 26 | 26 | 19 | 12 |
| 16 | 13.1 | 23 | 23 | 15 | 10 |
Packing of Copper underground drop wire 1 pair telephone cable copper wire cable
| Packing detail | 100m/roll, 200m/roll, 300m/roll,500m/roll or as request |
| Inner Package | Wooden reel, plastic reel, and paper reel available |
| Outer Package | Carton box, pull out box, pallet available. |
| Shipping time | After receving the deposit 7-10 days |
| mode of transport |
Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way |

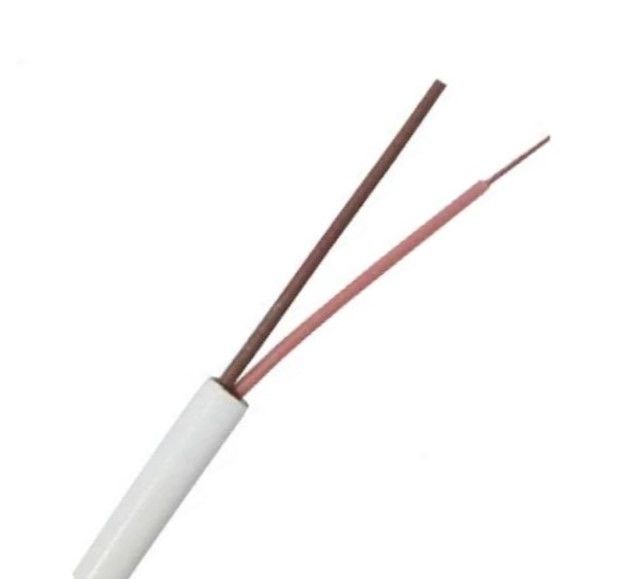

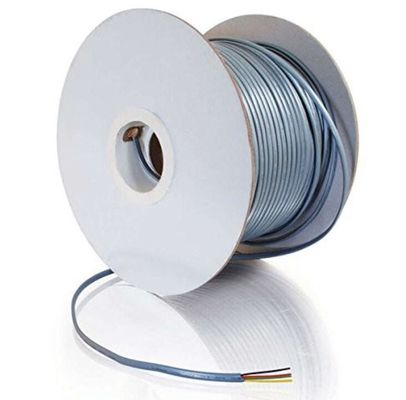

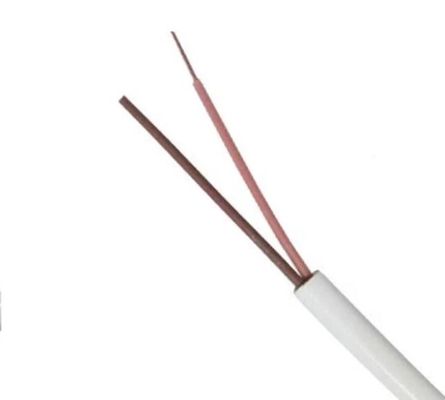

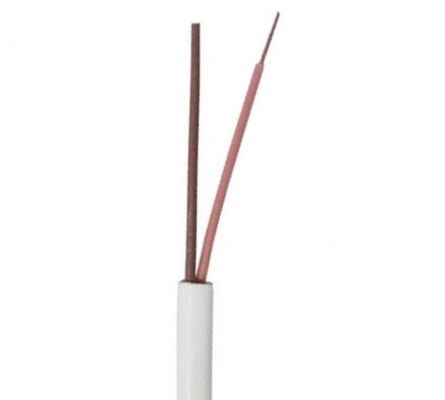

Drawings of Copper underground drop wire 1 pair telephone cable copper wire cable
