Product Details:
|
Model Number: | Outdoor Telephone Cable 2 Core Drop Wire 100% Copper Overhead Telephone Cable | Conductor: | Copper Wire Or Tin-plated Copper Wire Standed |
---|---|---|---|
Conductor Diameter: | 0.50mm±0.005mm | Jacket: | PVC&LSOH |
Pairs: | 2/4/6/8/10/20/50 Or As Per Your Request | Operating Temperature: | -20°C To +60°C |
Application: | Telecommunications | Color: | White , Gray, Black Or Optional |
High Light: | 2 Core Drop Wire Overhead Telephone Copper Cable,Overhead Telephone Copper Cable,Outdoor Overhead Telephone Cable |

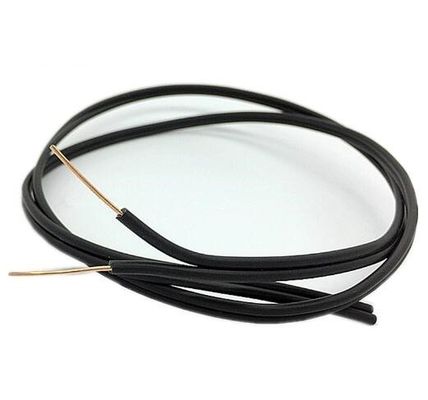

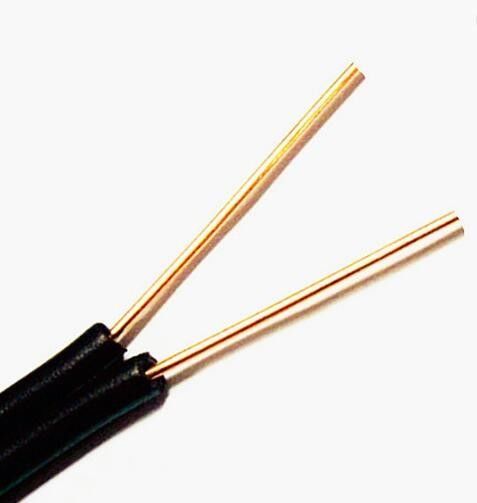

Outdoor telephone cable 2 core drop wire 100% copper overhead telephone cable
Description:
Suitable for installation of industrial and domestic utilisation on telecoomunications and information processing systems in French, in dry and moist operating areas of buildings. Its production is according to NFC C 93-529 for SYT1 series and NFC 93-526/527/528 for PTT series.
Features

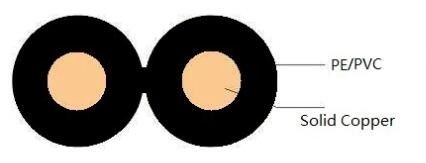

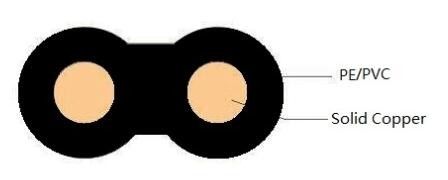

1. Conductor: 0. 5mm, 0. 6mm, 0. 8mm or 0. 9mm bare/ tinned copper wire
2. PE/PVC insulation
3. PVC/LSOH jacket
4. Shielded or unshielded
5. From 1 pair to 224 pairs
6. Coils or wooden drums packing
Specification:
• Conductor: 0.25sqmm to 4.0sqmm, bare copper ,tinned copper or CCA material
• Jacket: PVC
• Color: transparent, red/black, white and any color
• Nominal Voltage:220V
• Temperature Range: -10°C to + 80°C
Item | 5m RJ11 CCS telephone cable |
Conductor Material | CU,CCA,CCS |
Conductor Diameter | 0.40mm / 0.45mm / 0.50mm or as request |
Pair Insulation | PE or PVC |
Number of Twisted Pair | 2 core cable |
Shielding | UTP: Unshield |
STP/FTP : Mylar+AL Foil+Drain | |
Armoured | |
Jelly Filled | As your request |
Rip Cord | Yes |
Outer Jacket | PVC / PE / LSZH |
Jacket Color | White,Black, Gray or as request |
Installation Temperature | 0°C to +60°C |
Operating temperature | -20°C to +75°C |
Certificate | CE,ROHS,SGS |
Application | Telecom wiring system |
Electrical Characteristic
Frequency (MHz) | IL-Max (dB/100m) | NEXT Min(dB/100m) | PSNEXT Min(dB/100m) | ELFEXT Min(dB/100m) |
RL-Min(dB) |
1 | 2.6 | 41 | 41 | 39 | 12 |
4 | 5.6 | 32 | 32 | 27 | 12 |
10 | 9.7 | 26 | 26 | 19 | 12 |
16 | 13.1 | 23 | 23 | 15 | 10 |
Packing
Packing detail | 100m/roll, 200m/roll, 300m/roll,500m/roll or as request |
Inner Package | Wooden reel, plastic reel, and paper reel available |
Outer Package | Carton box, pull out box, pallet available. |
Shipping time | After receving the deposit 7-10 days |
mode of transport | Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way |
