Product Details:
|
| Model Number: | Telephone Drop Wire 2 Core BC/CCA/CCS Cat3 10 Pair Copper Cable | Conductor Diameter: | 0.50mm±0.005mm |
|---|---|---|---|
| Jacket: | PVC&LSOH | Pairs: | 2/4/6/8/10/20/50 Or As Per Your Request |
| Operating Temperature: | -20°C To +60°C | Application: | Telecommunications |
| Color: | White , Gray, Black Or Optional | ||
| Highlight: | 10 Pair Telephone Copper Cable,Cat3 10 Pair Copper Cable,2 Core Cat3 Telephone Copper Cable |
||
Telephone Drop Wire 2 Core BC/CCA/CCS Cat3 10 Pair Copper Cable
Description of Telephone Drop Wire 2 Core BC/CCA/CCS Cat3 10 Pair Copper Cable
Suitable for installation of industrial and domestic utilisation on telecoomunications and information processing systems in French, in dry and moist operating areas of buildings. Its production is according to NFC C 93-529 for SYT1 series and NFC 93-526/527/528 for PTT series.
Features of Telephone Drop Wire 2 Core BC/CCA/CCS Cat3 10 Pair Copper Cable
1. Conductor: 2-8 cores , 0. 5mm, 0. 6mm, 0. 8mm or 0. 9mm bare/ tinned copper wire
2. PE/PVC insulation
3. PVC/LSOH jacket
4. Shielded or unshielded
5. From 1 pair to 224 pairs
6. Coils or wooden drums packing
Specification:
• Conductor: 0.25sqmm to 4.0sqmm, bare copper ,tinned copper or CCA material
• Jacket: PVC
• Color: transparent, red/black, white and any color
• Nominal Voltage:220V
• Temperature Range: -10°C to + 80°C
| TECHNICAL CHARACTERISTICS | |
| Installation Temperature: 0°C to +60°C Operating temperature: -20°C to +60°C DC Resistance Unbalance :5% Pair-to-Ground Capacitance Unbalance :330 pF/100 m Capacitance:14pF/ft nominal |
Maximum strand pitch: 100 mm Minimum bend radius: 4 outer cable diameters Dielectric Breakdown:1000 Volts DC Conductor to Conductor Velocity of Propagation:PE=65% Maximum Skew:45ns@100 meters |
Electrical Characteristic of Telephone Drop Wire 2 Core BC/CCA/CCS Cat3 10 Pair Copper Cable
| Frequency (MHz) | IL-Max (dB/100m) | NEXT Min(dB/100m) | PSNEXT Min(dB/100m) | ELFEXT Min(dB/100m) | RL-Min(dB) |
| 1 | 2.6 | 41 | 41 | 39 | 12 |
| 4 | 5.6 | 32 | 32 | 27 | 12 |
| 10 | 9.7 | 26 | 26 | 19 | 12 |
| 16 | 13.1 | 23 | 23 | 15 | 10 |
Packing of Telephone Drop Wire 2 Core BC/CCA/CCS Cat3 10 Pair Copper Cable
| Packing detail | 100m/roll, 200m/roll, 300m/roll,500m/roll or as request |
| Inner Package | Wooden reel, plastic reel, and paper reel available |
| Outer Package | Carton box, pull out box, pallet available. |
| Shipping time | After receving the deposit 7-10 days |
| mode of transport |
Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way |

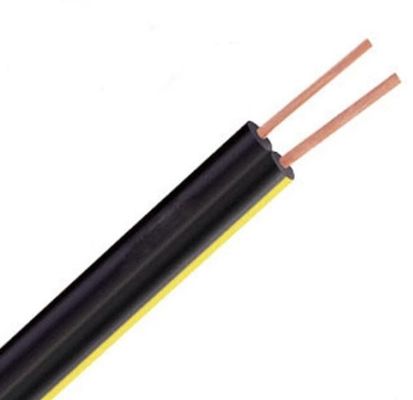

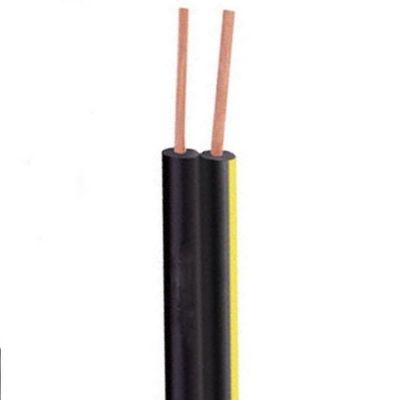

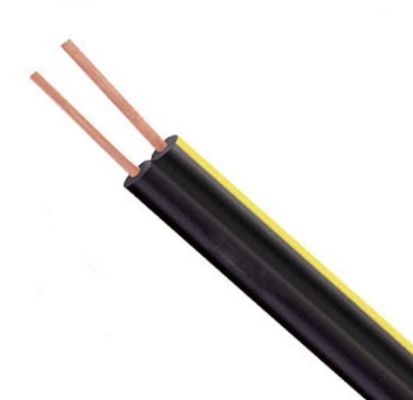

Drawings of Telephone Drop Wire 2 Core BC/CCA/CCS Cat3 10 Pair Copper Cable
