Product Details:
|
Model Number: | Drop Wire Telephone Cable In Telecommunication Copper Wire Cable | Conductor: | Copper Wire Or Tin-plated Copper Wire Standed |
---|---|---|---|
Conductor Diameter: | 0.50mm±0.005mm | Jacket: | PVC,PE,LSOH,or As Per Your Requirement. |
Pairs: | 10/20/50/100/150/200/300-1000 Or As Per Your Request | Operating Temperature: | -20°C To +60°C |
Application: | Telecommunications | Color: | White , Gray, Black Or Optional |
PE: | Environmental Protection | OEM: | Available |
High Light: | 5m Copper Wire Cable,5m Telephone Copper Cable,Drop Wire Telephone Copper Cable |
Drop wire telephone cable in telecommunication drop wire cable
Description of Drop wire telephone cable in telecommunication drop wire cable
Suitable for installation of industrial and domestic utilisation on telecoomunications and information processing systems, in dry and moisture operating areas of buildings. Its production is according to NFC C 93-529 for SYT1 series and NFC 93-526/527/528 for PTT series.
Specification of Drop wire telephone cable in telecommunication drop wire cable
Item | 5m RJ11 CCS telephone cable |
Conductor Material | CU,CCA,CCS |
Conductor Diameter | 0.40mm / 0.45mm / 0.50mm or as request |
Pair Insulation | PE or PVC |
Number of Twisted Pair | 2 core cable |
Shielding | UTP: Unshield |
STP/FTP : Mylar+AL Foil+Drain | |
Armoured | |
Jelly Filled | As per your requirement |
Rip Cord | Yes |
Outer Jacket | PVC / PE / LSZH |
Jacket Color | White,Black, Gray or as request |
Installation Temperature | 0°C to +60°C |
Operating temperature | -20°C to +75°C |
Certificate | ISO9001,CE,ROHS,SGS |
Application | Telecom wiring system |
Electrical Characteristic of Drop wire telephone cable in telecommunication drop wire cable
Frequency (MHz) | IL-Max (dB/100m) | NEXT Min(dB/100m) | PSNEXT Min(dB/100m) | ELFEXT Min(dB/100m) | RL-Min(dB) |
1 | 2.6 | 41 | 41 | 39 | 12 |
4 | 5.6 | 32 | 32 | 27 | 12 |
10 | 9.7 | 26 | 26 | 19 | 12 |
16 | 13.1 | 23 | 23 | 15 | 10 |
Packing of Drop wire telephone cable in telecommunication drop wire cable
Packing detail | 100m/roll, 200m/roll, 300m/roll,500m/roll or as request |
Inner Package | Wooden reel, plastic reel, and paper reel available |
Outer Package | Carton box, pull out box, pallet available. |
Shipping time | After receving the deposit 7-10 days |
mode of transport |
Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way |

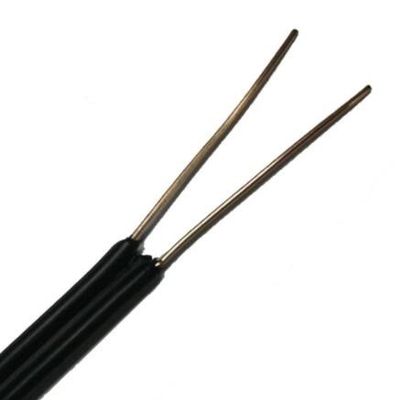

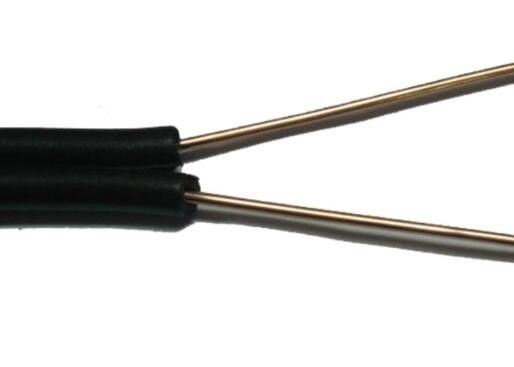

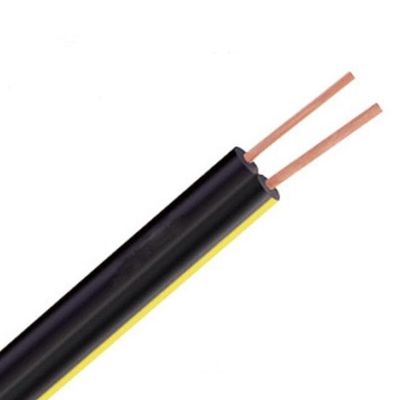

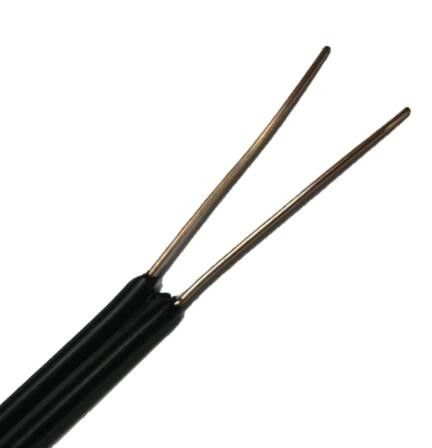

Drawings of Drop wire telephone cable in telecommunication drop wire cable
