Product Details:
|
| Name: | 6 Core Aerial Single Mode Figure 8 Fiber Optic Cable GYXTC8S | Fiber Type: | G652D |
|---|---|---|---|
| Fiber Count: | 24F | Type: | Fiber Optic Cable |
| Cable Diameter: | 9.8*18.5mm | Strength Member: | Steel Wire |
| Installation: | Self-supporting/Aerial | Application: | Long Distance Communication System |
| Messenger Member: | Steel Wire | Certification: | ISO9001/CE |
| Fiber Options: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 | Color: | Customized |
| High Light: | 6 Core Aerial Figure 8 Fiber Optic Cable,GYXTC8S Aerial Figure 8 Fiber Optic Cable,GYXTC8S 6 Core Single Mode Fiber Optic Cable |
||

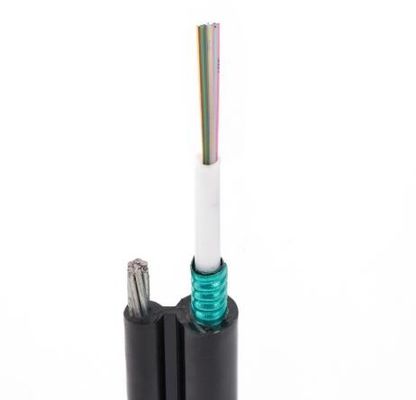

6 Core Aerial Single Mode Figure 8 Fiber Optic Cable GYXTC8S
Description of 6 Core Aerial Single Mode Figure 8 Fiber Optic Cable GYXTC8S
GYTC8S is a typical outdoor use fiber optic cable for aerial applications; GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multimode GYTC8S fiber cables from 2-fiber type to 96-fiber type.
Features of of 6 Core Aerial Single Mode Figure 8 Fiber Optic Cable GYXTC8S
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Light weight design bring low cost and also easy installation
Parameter Data of 6 Core Aerial Single Mode Figure 8 Fiber Optic Cable GYXTC8S
|
Fiber Num.
|
Outer diameter (mm)
|
Weight (kg/km)
|
Tension (N)
|
Crash loading(N/100mm)
|
||
|
Short term
|
Long term
|
Short term
|
Long term
|
|||
|
2-30
|
9.5*18.2
|
150
|
≥6000
|
≥2000
|
≥1000
|
≥300
|
|
32-48
|
10.2*18.9
|
162
|
||||
|
50-60
|
10.2*19.2
|
173
|
||||
|
62-72
|
10.9*19.9
|
197
|
||||
|
74-84
|
12.1*21.1
|
217
|
||||
|
86-96
|
12.1*21.1
|
217
|
||||
Mechanical and Environmental Characteristics:
| Items | Unite | Specifications |
| Tension(Long Term) | N | 300 |
| Tension(Short Term) | N | 800 |
| Crush(Long Term) | N/10cm | 200 |
| Crush(Short Term) | N/10cm | 600 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with more than 560 staff.
2.How many years have you been in the field of fiber optics ?
Since 2001.
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, CIQ.
6.What is your delivery time?
Usually within 2-30 working days
7.What is your payment way?
T/T, L/C, Western Union and Paypal.
8.Can you supply customized products and logo?
Yes. We supply OEM&ODM service. You can send us your drawing.

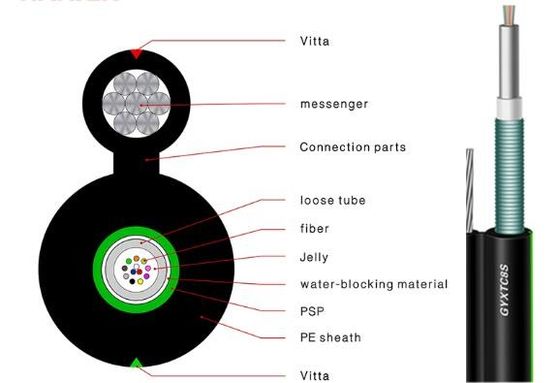

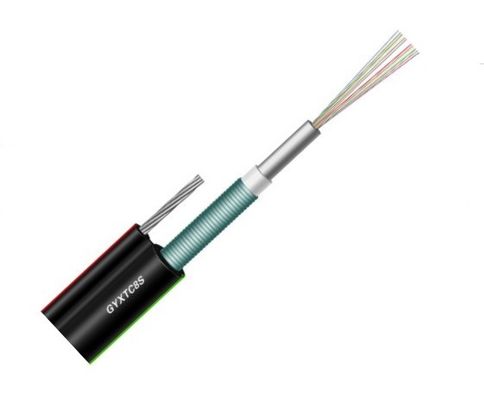

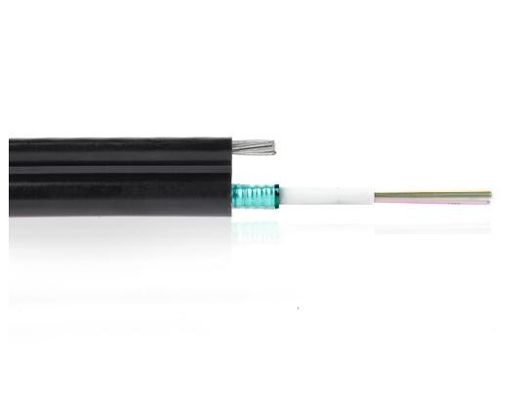

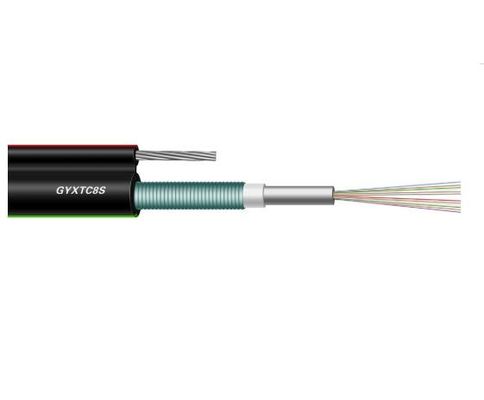

Drawings of 6 Core Aerial Single Mode Figure 8 Fiber Optic Cable GYXTC8S
