Product Details:
|
| Name: | 1 Core 2 Cores 4core 12core Gjyxch Gjyxfch Gjxh G657a1 G657a2 G652d Ftth Indoor Outdoor Fiber Optic Drop Cable | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| High Light: | GJYXCH Outdoor FTTH Drop Cable,12 Core GJXH FTTH Drop Cable,GJXH 4 Core Drop Cable |
||
1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable
Description of 1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable

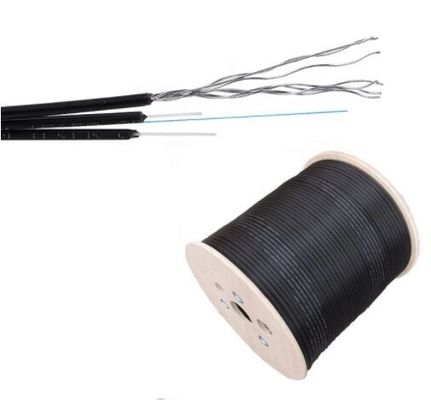

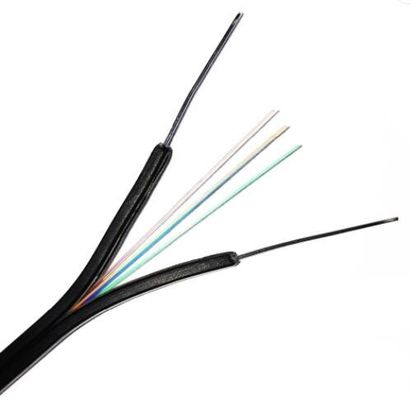

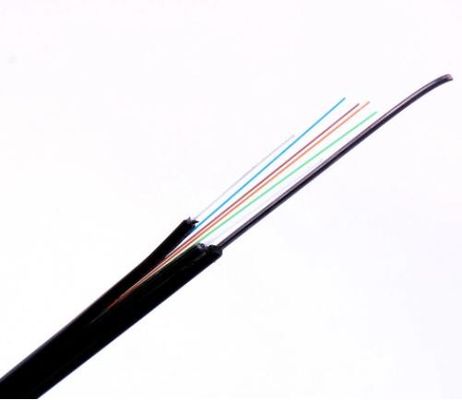

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.
Features of 1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Applications:
Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
| Model No. | Count |
Cable Size (mm) |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
| Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical value | MAX | Typical value | MAX | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 |
30 |
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.
Drawings of 1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable
